TS972IYPT by: STMicroelectronics

Output rail-to-rail very low-noise op-amps

Part Details for TS972IYPT by STMicroelectronics

Results Overview of TS972IYPT by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

TS972IYPT Information

TS972IYPT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for TS972IYPT

Part # Distributor Description Stock Price Buy
DISTI # 497-10270-1-ND
DigiKey IC OPAMP GP 2 CIRCUIT 8TSSOP Min Qty: 1 Lead time: 11 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) Temporarily Out of Stock
  • 1 $2.3200
  • 4,000 $1.1239
  • 8,000 $1.1030
$1.1030 / $2.3200 Buy Now
DISTI # TS972IYPT
Avnet Americas OP Amp Dual GP R-R O/P ?5V/10V 8-Pin TSSOP T/R - Tape and Reel (Alt: TS972IYPT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 11 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.8790
  • 8,000 $0.8735
  • 16,000 $0.8573
  • 24,000 $0.8417
  • 32,000 $0.8267
$0.8267 / $0.8790 Buy Now
DISTI # 511-TS972IYPT
Mouser Electronics Operational Amplifiers - Op Amps Output rail-to-rail very low-noise op-amps RoHS: Compliant 0
  • 4,000 $1.0900
$1.0900 Order Now
DISTI # V79:2366_21723786
Arrow Electronics Op Amp Dual Low Noise Amplifier R-R O/P ±5V/10V Automotive AEC-Q100 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1709 Americas - 2000
  • 1 $0.4084
$0.4084 Buy Now
DISTI # V72:2272_18463317
Arrow Electronics Op Amp Dual Low Noise Amplifier R-R O/P ±5V/10V Automotive AEC-Q100 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1709 Container: Cut Strips Americas - 1850
  • 1 $0.4465
$0.4465 Buy Now
STMicroelectronics Output rail-to-rail very low-noise op-amps RoHS: Compliant Min Qty: 1 0
  • 1 $2.2700
  • 10 $2.2700
  • 100 $1.8200
  • 250 $1.8100
  • 500 $1.8100
$1.8100 / $2.2700 Buy Now
DISTI # 27537920
Verical Op Amp Dual Low Noise Amplifier R-R O/P ±5V/10V Automotive AEC-Q100 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 15 Package Multiple: 1 Date Code: 1709 Americas - 2000
  • 15 $0.4084
$0.4084 Buy Now
DISTI # 25820805
Verical Op Amp Dual Low Noise Amplifier R-R O/P ±5V/10V Automotive AEC-Q100 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 26 Package Multiple: 1 Date Code: 1709 Americas - 1850
  • 26 $0.4465
$0.4465 Buy Now
DISTI # TS972IYPT
TME IC: operational amplifier, 12MHz, Ch: 2, TSSOP8, 2.7÷10VDC, IB: 1uA Min Qty: 1 0
  • 1 $1.1600
  • 5 $1.0500
  • 25 $0.9200
  • 100 $0.8300
  • 500 $0.7200
$0.7200 / $1.1600 RFQ
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 0
Stock ES - 726
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # TS972IYPT
Avnet Silica OP Amp Dual GP RR OP 5V10V 8Pin TSSOP TR (Alt: TS972IYPT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Silica - 4000
Buy Now
DISTI # TS972IYPT
EBV Elektronik OP Amp Dual GP RR OP 5V10V 8Pin TSSOP TR (Alt: TS972IYPT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days EBV - 0
Buy Now
LCSC Dual 750nA 4V/us 5mV TSSOP-8 Operational Amplifier ROHS 88
  • 1 $2.4984
  • 10 $2.1409
  • 30 $1.9161
  • 100 $1.5314
  • 500 $1.4273
  • 1,000 $1.3820
$1.3820 / $2.4984 Buy Now

Part Details for TS972IYPT

TS972IYPT CAD Models

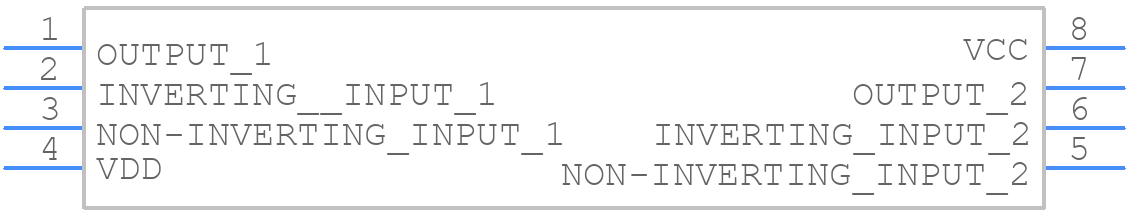

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TS972IYPT Part Data Attributes

Parametric Data
TS972IYPT STMicroelectronics
Buy Now Datasheet
Compare Parts:
TS972IYPT STMicroelectronics Output rail-to-rail very low-noise op-amps
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code SOIC
Package Description TSSOP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 11 Weeks
Samacsys Manufacturer STMicroelectronics
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 1 µA
Bias Current-Max (IIB) @25C 0.75 µA
Common-mode Reject Ratio-Min 60 dB
Common-mode Reject Ratio-Nom 85 dB
Frequency Compensation NO
Input Offset Current-Max (IIO) 0.15 µA
Input Offset Voltage-Max 7000 µV
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.4 mm
Low-Bias NO
Low-Offset NO
Micropower NO
Moisture Sensitivity Level 1
Neg Supply Voltage Limit-Max -6 V
Neg Supply Voltage-Nom (Vsup) -2.5 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power NO
Programmable Power NO
Qualification Status Not Qualified
Screening Level AEC-Q100
Seated Height-Max 1.2 mm
Slew Rate-Min 2.8 V/us
Slew Rate-Nom 4 V/us
Supply Current-Max 5.6 mA
Supply Voltage Limit-Max 6 V
Supply Voltage-Nom (Vsup) 2.5 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Unity Gain BW-Nom 12000
Voltage Gain-Min 3162.277
Wideband NO
Width 3 mm
