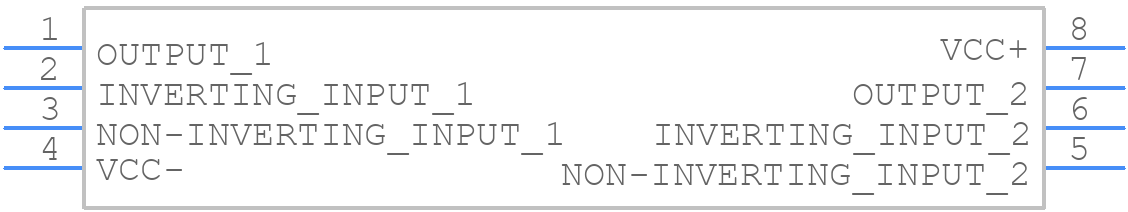

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TS912AIDT by STMicroelectronics
Results Overview of TS912AIDT by STMicroelectronics
- Distributor Offerings: (24 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
TS912AIDT Information
TS912AIDT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TS912AIDT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
59M2857
|
Newark | Opamp, 1.4Mhz, -40 To 125Deg C, No. Of Channels:2Channels, Gain Bandwidth Product:1.4Mhz, Supply Voltage Range:2.7V To 16V, ± 1.35V To ± 8V, Ic Case/Package:Soic, No. Of Pins:8Pins, Amplifier Type:Cmos, Input Offset Voltage:5Mv Rohs Compliant: Yes |Stmicroelectronics TS912AIDT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 5010 |
|
$0.4320 | Buy Now |
|
DISTI #
38AH9478
|
Newark | Conditioning & Interfaces Rohs Compliant: Yes |Stmicroelectronics TS912AIDT RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 5000 |
|
$0.6850 | Buy Now |
|
DISTI #
45Y8746
|
Newark | Operational Amplifier, Dual, 1.4 Mhz, 2, 0.4 V/ S, 2.7V To 16V, Soic, 8 Rohs Compliant: Yes |Stmicroelectronics TS912AIDT RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.6870 / $0.6910 | Buy Now |
|
DISTI #
497-2310-1-ND
|
DigiKey | IC CMOS 2 CIRCUIT 8SOIC Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
10142 In Stock |
|
$0.6947 / $1.4700 | Buy Now |
|
DISTI #
TS912AIDT
|
Avnet Americas | OP Amp Dual GP R-R I/O ?8V/16V 8-Pin SO N T/R - Tape and Reel (Alt: TS912AIDT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel | 5000 |
|
$0.4071 | Buy Now |
|
DISTI #
59M2857
|
Avnet Americas | OP Amp Dual GP R-R I/O ?8V/16V 8-Pin SO N T/R - Product that comes on tape, but is not reeled (Alt: 59M2857) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 1 Days Container: Ammo Pack | 0 |
|
$0.8420 / $1.3500 | Buy Now |
|
DISTI #
511-TS912AIDT
|
Mouser Electronics | Operational Amplifiers - Op Amps Dual Rail-to-Rail 3V RoHS: Compliant | 4336 |
|
$0.6760 / $1.3300 | Buy Now |
|
DISTI #
E02:0323_00031280
|
Arrow Electronics | Op Amp Dual GP R-R I/O ±8V/16V 8-Pin SO N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks Date Code: 2431 | Europe - 90000 |
|
$0.7611 | Buy Now |
|
DISTI #
V36:1790_06549379
|
Arrow Electronics | Op Amp Dual GP R-R I/O ±8V/16V 8-Pin SO N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks Date Code: 2431 | Americas - 42500 |
|
$0.4151 / $0.4213 | Buy Now |
|
DISTI #
V72:2272_06549379
|
Arrow Electronics | Op Amp Dual GP R-R I/O ±8V/16V 8-Pin SO N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2306 Container: Cut Strips | Americas - 75 |
|
$0.4444 / $0.5921 | Buy Now |
Part Details for TS912AIDT
TS912AIDT CAD Models
TS912AIDT Part Data Attributes
|
|
TS912AIDT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TS912AIDT
STMicroelectronics
Low power with CMOS inputs
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, MICRO, PLASTIC, SOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.0003 µA | |
| Bias Current-Max (IIB) @25C | 0.00015 µA | |
| Common-mode Reject Ratio-Nom | 70 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 7000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | ||
| Neg Supply Voltage-Nom (Vsup) | ||
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TAPE AND REEL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 0.4 V/us | |
| Supply Current-Max | 1.4 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Unity Gain BW-Nom | 800 | |
| Voltage Gain-Min | 2000 | |
| Width | 3.9 mm |
