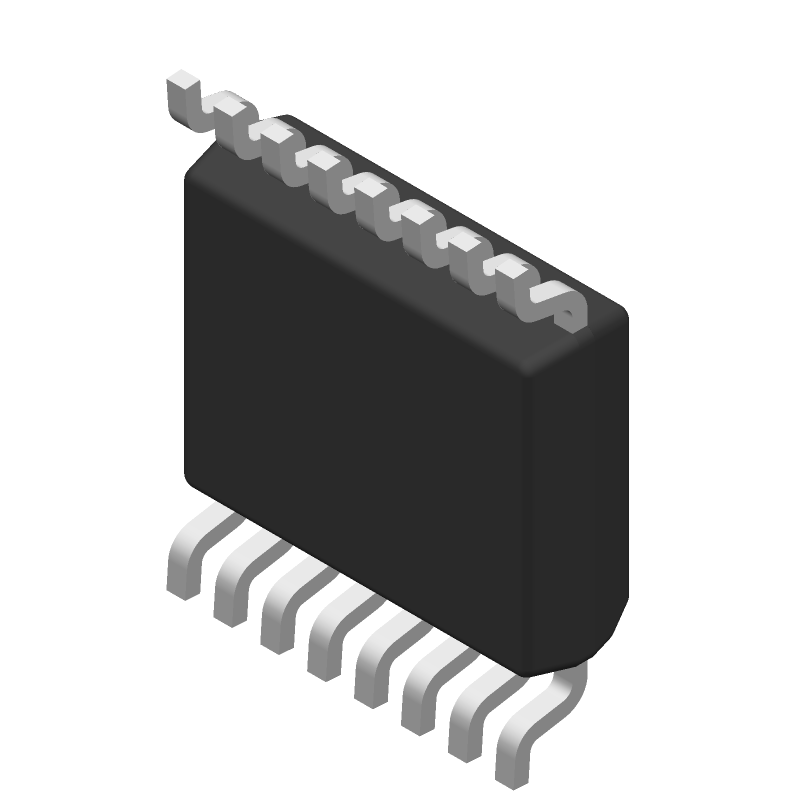

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TS3A5018DBQRG4 by Texas Instruments
Results Overview of TS3A5018DBQRG4 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TS3A5018DBQRG4 Information
TS3A5018DBQRG4 by Texas Instruments is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TS3A5018DBQRG4 | Texas Instruments | 10-Ω Quad SPDT analog switch 16-SSOP -40 to 85 |
Price & Stock for TS3A5018DBQRG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Other Function Semiconductors | 829 |
|
RFQ | |
|
|
Win Source Electronics | IC SWITCH QUAD SPDT 16SSOP | 56000 |
|
$2.5341 / $3.8011 | Buy Now |
Part Details for TS3A5018DBQRG4
TS3A5018DBQRG4 CAD Models
TS3A5018DBQRG4 Part Data Attributes
|
|
TS3A5018DBQRG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TS3A5018DBQRG4
Texas Instruments
3.3-V, 2:1 (SPDT), 4-channel general-purpose analog switch 16-SSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | SPDT | |
| Bandwidth-Nom | 300 MHz | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 2 | |
| Normal Position | NO/NC | |
| Number of Channels | 4 | |
| Number of Functions | 4 | |
| Number of Terminals | 16 | |
| Off-state Isolation-Nom | 48 dB | |
| On-state Resistance Match-Nom | 0.4 Ω | |
| On-state Resistance-Max (Ron) | 22 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | SEPARATE OUTPUT | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Signal Current-Max | 0.1 A | |
| Supply Current-Max (Isup) | 0.002 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.3 V | |
| Supply Voltage-Nom (Vsup) | 2.5 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 9 ns | |
| Switch-on Time-Max | 10.5 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.635 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
TS3A5018DBQRG4 Frequently Asked Questions (FAQ)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using shielding to reduce EMI.
-
The TS3A5018DBQRG4 requires a 1.8V power supply, and it's recommended to use a low-ESR capacitor (e.g., 0.1uF) as close as possible to the VCC pin to decouple the power supply. Additionally, a 10uF capacitor can be used in parallel to further reduce noise.
-
The TS3A5018DBQRG4 is capable of supporting data rates up to 3.2 Gbps, but the actual data rate achieved will depend on the specific application, PCB layout, and signal integrity.
-
The TS3A5018DBQRG4 can be configured for differential or single-ended operation by setting the appropriate pins (e.g., DIFF/SE, IN+/IN-) and using the correct termination resistors. Refer to the datasheet for specific configuration details.
-
The typical power consumption of the TS3A5018DBQRG4 is around 150mW, but this can vary depending on the specific application, data rate, and operating conditions.
