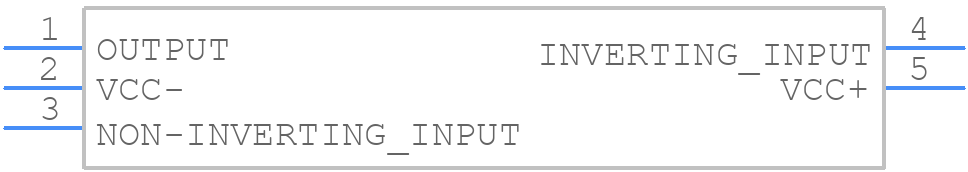

Part Symbol
-
Footprint
-

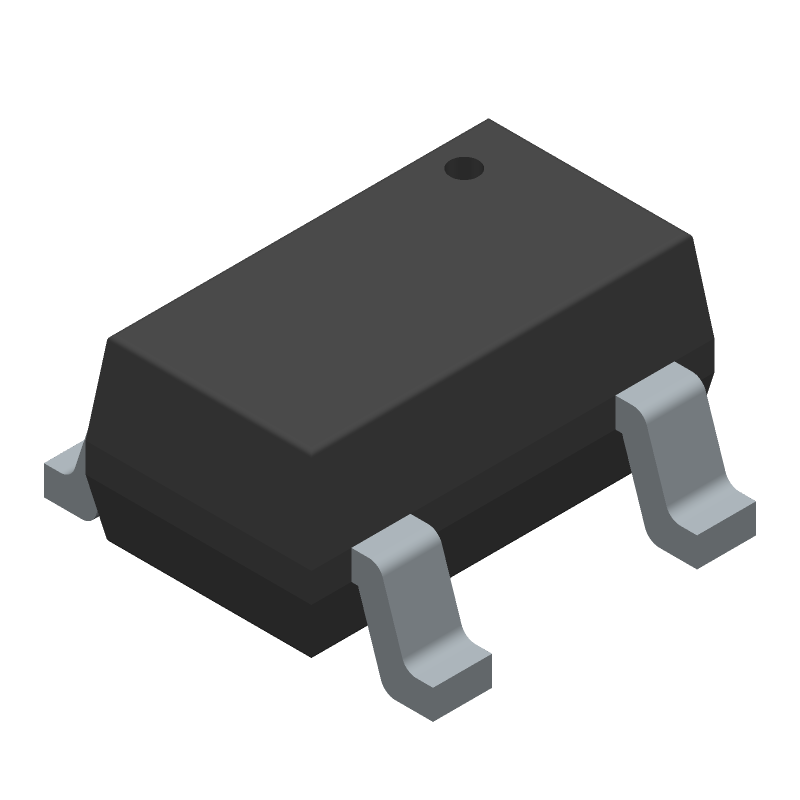

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TS321AILT by STMicroelectronics
Results Overview of TS321AILT by STMicroelectronics
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
TS321AILT Information
TS321AILT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TS321AILT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33R1422
|
Newark | Opamp, 800Khz, -40 To 125Deg C, No. Of Channels:1Channels, Gain Bandwidth Product:800Khz, Supply Voltage Range:3V To 30V, ± 1.5V To ± 15V, Ic Case/Package:Sot-23, No. Of Pins:5Pins, Amplifier Type:General Purpose, Rail To Rail:- Rohs Compliant: Yes |Stmicroelectronics TS321AILT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 3965 |
|
$0.2150 | Buy Now |
|
DISTI #
45Y8740
|
Newark | Operational Amplifier, Single, 800 Khz, 1, 0.4 V/ S, 3V To 30V, Sot-23, 5 Rohs Compliant: Yes |Stmicroelectronics TS321AILT RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 3000 |
|
$0.3190 | Buy Now |
|
DISTI #
26AM5124
|
Newark | He Amplifiers |Stmicroelectronics TS321AILT RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
497-8093-1-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT SOT23-5 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
82984 In Stock |
|
$0.3191 / $0.7900 | Buy Now |
|
DISTI #
TS321AILT
|
Avnet Americas | Operational Amplifier, Single, 1 Channels, 800 kHz, 0.4 V/?s, 3V to 30V, SOT-23, 5 Pins - Tape and Reel (Alt: TS321AILT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 48000 |
|
$0.1744 | Buy Now |
|
DISTI #
33R1422
|
Avnet Americas | Operational Amplifier, Single, 1 Channels, 800 kHz, 0.4 V/?s, 3V to 30V, SOT-23, 5 Pins - Product that comes on tape, but is not reeled (Alt: 33R1422) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Ammo Pack | 3965 Partner Stock |
|
$0.4240 / $0.7200 | Buy Now |
|
DISTI #
511-TS321AIL
|
Mouser Electronics | Operational Amplifiers - Op Amps Single Low Power RoHS: Compliant | 41245 |
|
$0.3190 / $0.7600 | Buy Now |
|
DISTI #
E02:0323_00213253
|
Arrow Electronics | Op Amp Single Low Power Amplifier ±15V/30V 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks Date Code: 2503 | Europe - 294000 |
|
$0.2922 | Buy Now |
|
|
STMicroelectronics | Single LM324, LM358 enhanced version in sot23-5 package RoHS: Compliant Min Qty: 1 | 41018 |
|
$0.3700 / $0.7500 | Buy Now |
|
DISTI #
76828035
|
Verical | Op Amp Single Low Power Amplifier ±15V/30V 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 69 Package Multiple: 1 | Americas - 3000 |
|
$0.4490 / $0.7390 | Buy Now |
Part Details for TS321AILT
TS321AILT CAD Models
TS321AILT Part Data Attributes
|
|
TS321AILT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TS321AILT
STMicroelectronics
Single LM324, LM358 enhanced version in sot23-5 package
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOT-23 | |
| Package Description | ROHS COMPLIANT, PLASTIC, SOT-23, 5 PIN | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.2 µA | |
| Bias Current-Max (IIB) @25C | 0.15 µA | |
| Common-mode Reject Ratio-Nom | 85 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 3000 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | ||
| Neg Supply Voltage-Nom (Vsup) | ||
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TAPE AND REEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Slew Rate-Nom | 0.4 V/us | |
| Supply Current-Max | 1 mA | |
| Supply Voltage Limit-Max | 32 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 800 | |
| Voltage Gain-Min | 25000 | |
| Wideband | NO | |
| Width | 1.625 mm |
