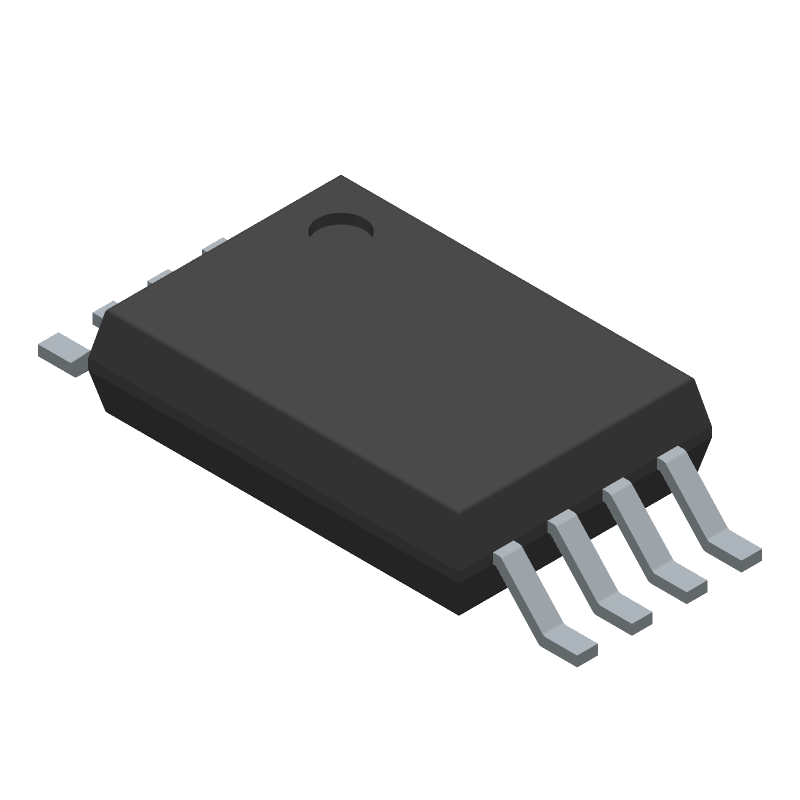

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TS272AIPT by STMicroelectronics
Results Overview of TS272AIPT by STMicroelectronics
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
TS272AIPT Information
TS272AIPT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TS272AIPT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TS272AIPT
|
Avnet Americas | OP Amp Dual GP 16V 8-Pin TSSOP T/R - Tape and Reel (Alt: TS272AIPT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.4219 / $0.4306 | Buy Now |
|
DISTI #
511-TS272AIP
|
Mouser Electronics | Operational Amplifiers - Op Amps Dual Hi-Performance RoHS: Compliant | 0 |
|
Order Now | |
|
DISTI #
TS272AIPT
|
TME | IC: operational amplifier, 3.5MHz, Ch: 2, TSSOP8, 3÷16VDC, IB: 0.3nA Min Qty: 1 | 0 |
|
$0.3910 / $1.1700 | RFQ |
|
|
ComSIT USA | HIGH PERFORMANCE CMOS DUAL OPERATIONAL AMPLIFIER Operational Amplifier, 2 Func, 6500uV Offset-Max, CMOS, PDSO8 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
TS272AIPT
|
Avnet Silica | OP Amp Dual GP 16V 8Pin TSSOP TR (Alt: TS272AIPT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 13 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
TS272AIPT
|
EBV Elektronik | OP Amp Dual GP 16V 8Pin TSSOP TR (Alt: TS272AIPT) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 13 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for TS272AIPT
TS272AIPT CAD Models
TS272AIPT Part Data Attributes
|
|
TS272AIPT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TS272AIPT
STMicroelectronics
Micropower, wide range of input offset voltage
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | TSSOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Date Of Intro | 1980-01-04 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.0003 µA | |
| Common-mode Reject Ratio-Nom | 80 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 6500 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 4.4 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | ||
| Neg Supply Voltage-Nom (Vsup) | ||
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TAPE AND REEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Slew Rate-Nom | 5.5 V/us | |
| Supply Current-Max | 3.4 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 10 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin (Sn) - immersion | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Unity Gain BW-Nom | 3500 | |
| Voltage Gain-Min | 6000 | |
| Wideband | NO | |
| Width | 3 mm |
Alternate Parts for TS272AIPT
This table gives cross-reference parts and alternative options found for TS272AIPT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TS272AIPT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLC2272QPWRG4 | Texas Instruments | $0.9907 | Dual, Low-Noise, Rail-To-Rail Operational Amplifier 8-TSSOP | TS272AIPT vs TLC2272QPWRG4 |
| TS272BMPT | STMicroelectronics | Check for Price | DUAL OP-AMP, 3000uV OFFSET-MAX, 3.5MHz BAND WIDTH, PDSO8, TSSOP-8 | TS272AIPT vs TS272BMPT |
TS272AIPT Frequently Asked Questions (FAQ)
-
STMicroelectronics provides a recommended PCB layout in the application note AN5096, which includes guidelines for thermal pad connection, copper pouring, and via placement to ensure optimal thermal performance.
-
The thermal shutdown feature is enabled by default, but it can be disabled by connecting the TSD pin to VCC. When enabled, the device will shut down when the junction temperature exceeds 150°C. It's essential to ensure proper thermal design and heat sinking to prevent thermal shutdown.
-
STMicroelectronics recommends using a 10uF to 22uF X7R or X5R ceramic capacitor with a voltage rating of 10V or higher for the input capacitor. The capacitor should be placed as close as possible to the VIN pin to ensure proper decoupling.
-
To ensure stability, it's essential to follow the recommended PCB layout, use the correct input and output capacitors, and ensure that the output voltage is properly decoupled. Additionally, the device's output should be loaded with a minimum of 1mA to prevent oscillations.
-
The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage divider or a buffer stage to ensure the EN pin voltage remains within the specified range.
