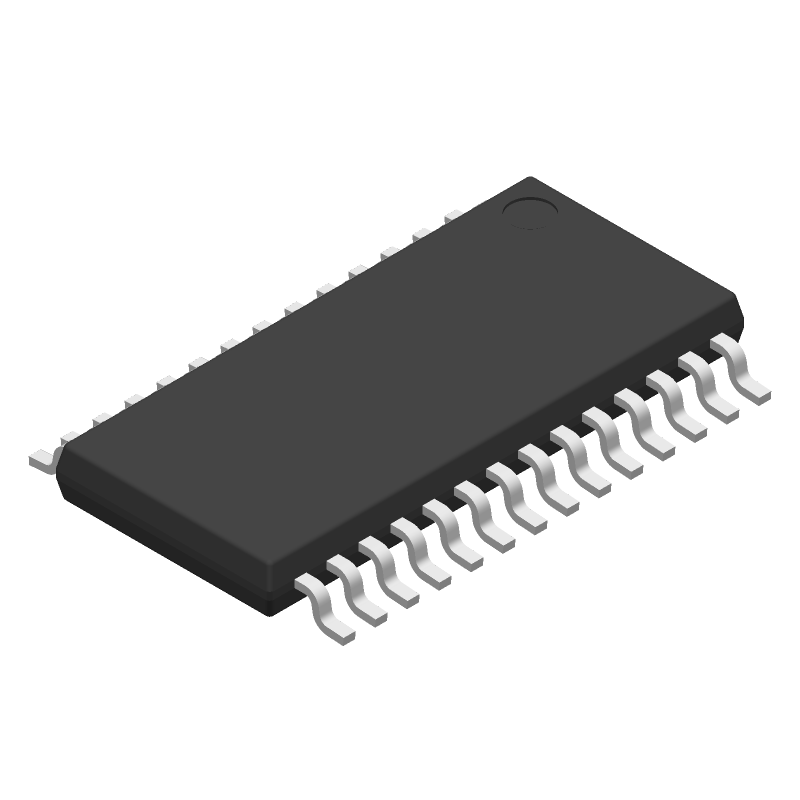

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TRS3243EIPWRG4 by Texas Instruments
Results Overview of TRS3243EIPWRG4 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
TRS3243EIPWRG4 Information
TRS3243EIPWRG4 by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for TRS3243EIPWRG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Quest Components | TRIPLE LINE TRANSCEIVER, PDSO28 | 19 |
|
$1.2650 / $1.3750 | Buy Now |
|
|
Vyrian | Interface ICs | 991 |
|
RFQ |
Part Details for TRS3243EIPWRG4
TRS3243EIPWRG4 CAD Models
TRS3243EIPWRG4 Part Data Attributes
|
|
TRS3243EIPWRG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TRS3243EIPWRG4
Texas Instruments
3- to 5.5-V multichannel 600kbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection 28-TSSOP -40 to 85
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Package Description | TSSOP, TSSOP28,.25 | |
| Pin Count | 28 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Differential Output | NO | |
| Driver Number of Bits | 3 | |
| High Level Input Current-Max | 0.000001 A | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232-F; TIA-232-F | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e4 | |
| Length | 9.7 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 3 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 10 V | |
| Output Low Current-Max | 0.000001 A | |
| Output Polarity | INVERTED | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP28,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receiver Number of Bits | 5 | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 1 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Supply Voltage1-Max | 3.6 V | |
| Supply Voltage1-Min | 3 V | |
| Supply Voltage1-Nom | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
TRS3243EIPWRG4 Frequently Asked Questions (FAQ)
-
Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The TRS3243EIPWRG4 has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via array or a copper pour with multiple vias can be used to connect the thermal pad to the thermal plane. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink.
-
The TRS3243EIPWRG4 has an operating temperature range of -40°C to 85°C, but it can be extended to -40°C to 105°C with derating. However, the device's performance and reliability may be affected at higher temperatures, so it's essential to follow the recommended operating conditions and thermal management guidelines.
-
To ensure the reliability of TRS3243EIPWRG4 in high-vibration environments, it's essential to follow proper PCB design and assembly guidelines, such as using a robust PCB material, securing the device with a suitable adhesive or mechanical fastening, and using a conformal coating to protect the device from moisture and contaminants.
-
The TRS3243EIPWRG4 has built-in electrostatic discharge (ESD) protection, but it's still essential to follow proper ESD handling and storage procedures to prevent damage to the device. This includes using ESD-safe materials, grounding personnel and equipment, and storing the device in a protective package.
