Capacitors / Fixed Capacitors / TR3D157K016C0100
Datasheets
TR3D157K016C0100 by:

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 150uF, Surface Mount, 2917, CHIP

Part Details for TR3D157K016C0100 by Vishay Intertechnologies

Results Overview of TR3D157K016C0100 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems

TR3D157K016C0100 Information

TR3D157K016C0100 by Vishay Intertechnologies is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for TR3D157K016C0100

Part # Distributor Description Stock Price Buy
DISTI # 71P8261
Newark Cap, 150Uf, 16V, Tant, Case D, Capacitance:150Μf, Voltage(Dc):16V, Capacitor Case/Package:2917 [7343 Metric], Capacitance Tolerance:± 10%, Esr:0.1Ohm, Manufacturer Size Code:D, Failure Rate:-, Ripple Current:1.22A, Qualification:- Rohs Compliant: Yes |Vishay TR3D157K016C0100 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 1 Container: Reel 500
  • 500 $0.8140
$0.8140 Buy Now
DISTI # 66AJ1977
Newark Cap, 150Uf, 16V, Tant, Case D, Capacitance:150Μf, Voltage(Dc):16V, Capacitor Case/Package:2917 [7343 Metric], Capacitance Tolerance:± 10%, Esr:0.1Ohm, Manufacturer Size Code:D, Failure Rate:-, Ripple Current:1.22A, Qualification:- Rohs Compliant: Yes |Vishay TR3D157K016C0100 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 270
  • 1 $1.2600
  • 10 $1.0700
  • 25 $1.0700
  • 50 $1.0700
  • 100 $0.9230
$0.9230 / $1.2600 Buy Now
DISTI # 71P8261
Avnet Americas TR3157K016DC0100 - Tape and Reel (Alt: 71P8261) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 13 Weeks, 3 Days Container: Reel 500 Partner Stock
  • 1 $0.8460
  • 1,000 $0.8310
  • 2,000 $0.8640
$0.8310 / $0.8640 Buy Now
DISTI # 66AJ1977
Avnet Americas TR3157K016DC0100 - Product that comes on tape, but is not reeled (Alt: 66AJ1977) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 3 Days Container: Ammo Pack 270 Partner Stock
  • 1 $1.9200
  • 10 $1.4400
  • 25 $1.1900
  • 50 $0.9480
  • 100 $0.8900
$0.8900 / $1.9200 Buy Now
DISTI # TR3D157K016C0100
Avnet Americas TR3157K016DC0100 - Tape and Reel (Alt: TR3D157K016C0100) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 500 $0.4470
  • 1,000 $0.4447
  • 2,000 $0.4424
  • 3,000 $0.4401
  • 4,000 $0.4379
$0.4379 / $0.4470 Buy Now
DISTI # 74-TR3D157K016C0100
Mouser Electronics Tantalum Capacitors - Solid SMD 150uF 16volts 10% D cs ESR 0.1 Molded RoHS: Compliant 2122
  • 1 $2.1100
  • 10 $1.4900
  • 50 $1.2100
  • 100 $1.1200
  • 500 $0.9420
  • 1,000 $0.8530
$0.8530 / $2.1100 Buy Now
DISTI # V72:2272_09337735
Arrow Electronics Cap Tant Solid 150uF 16V D CASE 10% (7.3 X 4.3 X 2.8mm) Inward L SMD 7343-31 0.1 Ohm 125°C T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 1848 Container: Cut Strips Americas - 3
  • 1 $0.5142
$0.5142 Buy Now
DISTI # TR3D157K016C0100
TTI Tantalum Capacitors - Solid SMD 150uF 16volts 10% D cs ESR 0.1 Molded RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 500 Container: Reel Americas - 46500
In Stock
  • 500 $0.8700
$0.8700 Buy Now
DISTI # TR3D157K016C0100
IBS Electronics CAP TANT SOLID 150UF 16V D CASE 10% (7.3 X 4.3 X 2.8MM) INWARD L SMD 7343-31 0.1 OHM 125C T/R Min Qty: 500 Package Multiple: 1 5000
  • 500 $1.1180
$1.1180 Buy Now
DISTI # TR3D157K016C0100
Avnet Abacus TR3157K016DC0100 (Alt: TR3D157K016C0100) RoHS: Compliant Min Qty: 2500 Package Multiple: 500 Lead time: 15 Weeks, 0 Days Abacus - 0
Buy Now
Vyrian Capacitors 5217
RFQ

Part Details for TR3D157K016C0100

TR3D157K016C0100 CAD Models

  • Part Symbol

    Part Symbol

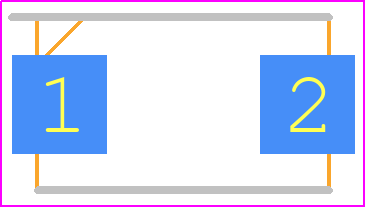

  • Footprint

    footprint

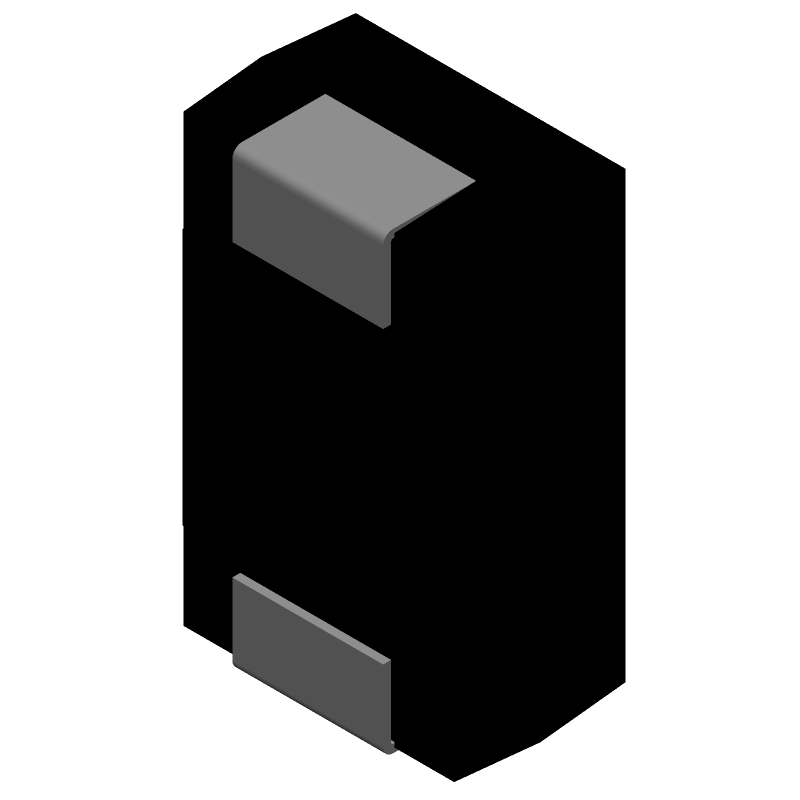

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TR3D157K016C0100 Part Data Attributes

Parametric Data
TR3D157K016C0100 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
TR3D157K016C0100 Vishay Intertechnologies Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 150uF, Surface Mount, 2917, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 13 Weeks, 3 Days
Samacsys Manufacturer Vishay
Capacitance 150 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (DRY/SOLID)
ESR 100 mΩ
Height 2.8 mm
JESD-609 Code e3
Leakage Current 0.024 mA
Length 7.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, EMBOSSED PLASTIC, 7 INCH
Polarity POLARIZED
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 16 V
Ripple Current 488 mA
Size Code 2917
Surface Mount YES
Tan Delta 0.08
Terminal Finish MATTE TIN
Terminal Shape J BEND
Width 4.3 mm

Alternate Parts for TR3D157K016C0100

This table gives cross-reference parts and alternative options found for TR3D157K016C0100. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TR3D157K016C0100, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TR3D157K016C0060 Vishay Intertechnologies $0.7448 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 150uF, Surface Mount, 2917, CHIP TR3D157K016C0100 vs TR3D157K016C0060
T491D157K016AG KEMET Corporation $2.3600 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 150uF, Surface Mount, 2917, CHIP TR3D157K016C0100 vs T491D157K016AG
T95D157K016LZSS Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 150uF, 3017 TR3D157K016C0100 vs T95D157K016LZSS
293D157X9016D8T Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 150uF, Surface Mount, 2917, CHIP TR3D157K016C0100 vs 293D157X9016D8T
T491D157K016AT7280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 150uF, Surface Mount, 2917, CHIP TR3D157K016C0100 vs T491D157K016AT7280
T95D157K016EZSL Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 150uF, 3017 TR3D157K016C0100 vs T95D157K016EZSL
T95D157K016ESAS Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 150uF, Surface Mount, 2917, CHIP TR3D157K016C0100 vs T95D157K016ESAS
T95D157K016LSAL Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 150uF, Surface Mount, 2917, CHIP TR3D157K016C0100 vs T95D157K016LSAL
14002-035KESC/HR Vishay Intertechnologies Check for Price Tantalum Capacitor, Tantalum (dry/solid), TR3D157K016C0100 vs 14002-035KESC/HR
T95D157K016CZAS Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 150uF, 3017 TR3D157K016C0100 vs T95D157K016CZAS

TR3D157K016C0100 Related Parts

TR3D157K016C0100 Frequently Asked Questions (FAQ)

  • The recommended land pattern for the TR3D157K016C0100 can be found in the Vishay Intertechnologies' application note AN10343, which provides guidelines for PCB layout and land pattern design.

  • The TR3D157K016C0100 has a thermal resistance of 10°C/W. To ensure proper thermal management, it is recommended to use a heat sink or a thermal interface material with a thermal conductivity of at least 1 W/m-K. Additionally, the PCB should be designed with thermal vias and a solid ground plane to help dissipate heat.

  • The TR3D157K016C0100 has an operating temperature range of -55°C to +150°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. It is recommended to operate the device within a temperature range of -40°C to +125°C for optimal performance.

  • The TR3D157K016C0100 is designed to withstand vibrations up to 10 G. However, it is recommended to follow the guidelines outlined in the Vishay Intertechnologies' application note AN10344, which provides information on the device's vibration sensitivity and recommended mounting techniques.

  • The TR3D157K016C0100 is designed to operate in a humid environment, but it is recommended to follow the guidelines outlined in the Vishay Intertechnologies' application note AN10345, which provides information on the device's moisture sensitivity and recommended handling and storage procedures.
