TQ2SL-24V by: Panasonic Electronic Components

Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.008A (Coil), 24VDC (Coil), 200mW (Coil), 2A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output, Surface Mount-Straight, ROHS COMPLIANT

Part Details for TQ2SL-24V by Panasonic Electronic Components

Results Overview of TQ2SL-24V by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TQ2SL-24V Information

TQ2SL-24V by Panasonic Electronic Components is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for TQ2SL-24V

Part # Distributor Description Stock Price Buy
DISTI # 05C3887
Newark Relay, Signal, Dpdt, 30Vdc, 2A, Coil Voltage:24Vdc, Contact Configuration:Dpdt, Contact Current:2A, Product Range:Tq-Smd Series, Relay Mounting:Surface Mount, Coil Type:Non Latching, Relay Terminals:Solder, Contact Voltage Vac:- Rohs Compliant: Yes |Panasonic TQ2SL-24V RoHS: Compliant Min Qty: 50 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 50 $3.9900
  • 100 $3.5700
  • 500 $3.2600
  • 1,000 $2.9000
  • 2,500 $2.7100
$2.7100 / $3.9900 Buy Now
DISTI # 255-2270-5-ND
DigiKey RELAY TELECOM DPDT 2A 24V Min Qty: 1 Lead time: 20 Weeks Container: Tube 146
In Stock
  • 1 $4.4400
  • 10 $3.9580
  • 25 $3.7800
  • 50 $3.6506
  • 100 $3.5254
  • 250 $3.3664
  • 500 $3.2508
  • 1,000 $3.1391
$3.1391 / $4.4400 Buy Now
DISTI # TQ2SL-24V
Avnet Americas Electromechanical Relay DPDT 2A 24VDC 2.88KOhm Surface Mount - Rail/Tube (Alt: TQ2SL-24V) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 20 Weeks, 0 Days Container: Tube 3000 Factory Stock
  • 50 $2.3952
  • 100 $2.3616
  • 200 $2.3233
  • 300 $2.2849
  • 400 $2.2464
$2.2464 / $2.3952 Buy Now
DISTI # 769-TQ2SL-24V
Mouser Electronics Low Signal Relays - PCB 2A 24VDC DPDT HI-REL NON-LATCHING SMD RoHS: Compliant 250
  • 1 $4.4400
  • 10 $3.7800
  • 50 $3.5800
  • 100 $3.3400
  • 250 $3.0600
  • 500 $2.6700
  • 1,000 $2.6300
$2.6300 / $4.4400 Buy Now
DISTI # 74614082
RS Signal RelayTQ relay Min Qty: 50 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk 0
  • 50 $3.8400
$3.8400 RFQ
Onlinecomponents.com Signal Relay 24VDC 2A DPDT(14x11.5x7.5)mm SMD RoHS: Compliant 2600 In Stock
3000 Factory Stock
  • 50 $3.5400
  • 100 $3.2300
  • 250 $2.8900
  • 500 $2.6400
  • 1,000 $2.4600
  • 2,500 $2.4500
  • 5,000 $2.4300
  • 7,500 $2.4200
$2.4200 / $3.5400 Buy Now
DISTI # 84436599
Verical Signal Relay 24VDC 2A DPDT( (14mm 11.5mm 7.5mm)) SMD RoHS: Compliant Min Qty: 50 Package Multiple: 50 Date Code: 2432 Americas - 2600
  • 50 $5.1704
  • 100 $4.2267
  • 250 $3.6746
  • 500 $3.1857
  • 1,000 $3.0763
$3.0763 / $5.1704 Buy Now
NexGen Digital   1
RFQ
DISTI # 000000000000196384
Sager RELAY HIGH RELIABILITY TERMINALS Min Qty: 50 0
  • 50 $2.9500
  • 150 $2.8200
  • 250 $2.7400
  • 500 $2.6700
  • 1,050 $2.5600
$2.5600 / $2.9500 Buy Now
DISTI # TQ2SL-24V
Avnet Abacus Electromechanical Relay DPDT 2A 24VDC 288KOhm Surface Mount (Alt: TQ2SL-24V) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 32 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics Signal Relay 24VDC 2A DPDT(14x11.5x7.5)mm SMD RoHS: Compliant 2600 In Stock
3000 Factory Stock
  • 50 $3.5400
  • 100 $3.2300
  • 250 $2.8900
  • 500 $2.6400
  • 1,000 $2.4600
  • 2,500 $2.4500
  • 5,000 $2.4300
  • 7,500 $2.4200
$2.4200 / $3.5400 Buy Now

Part Details for TQ2SL-24V

TQ2SL-24V Part Data Attributes

Parametric Data
TQ2SL-24V Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:

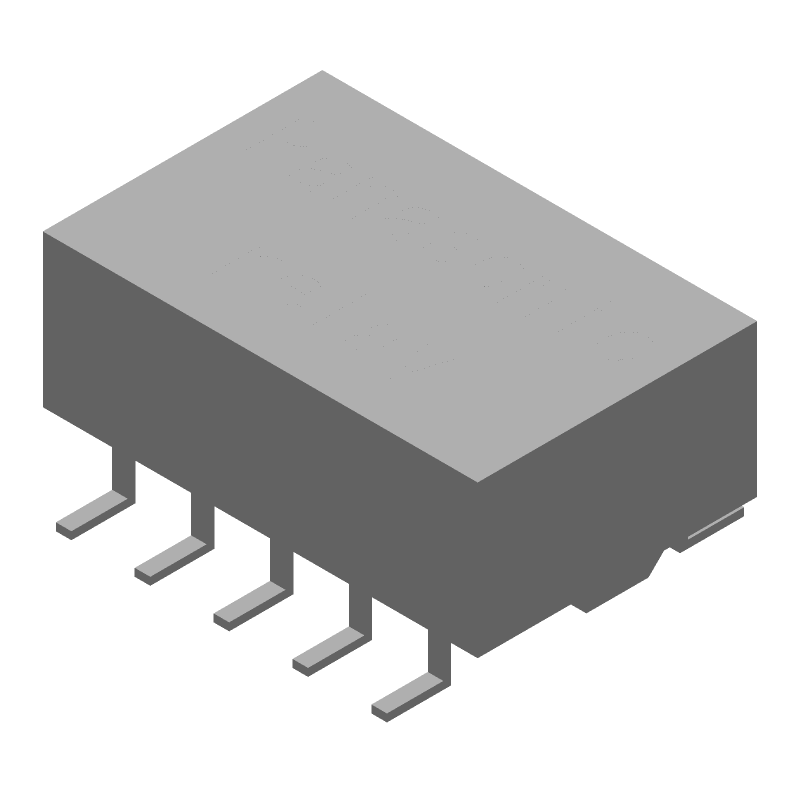

TQ2SL-24V Panasonic Electronic Components Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.008A (Coil), 24VDC (Coil), 200mW (Coil), 2A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output, Surface Mount-Straight, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.49.00.50
Factory Lead Time 20 Weeks
Samacsys Manufacturer Panasonic
Additional Feature LOW PROFILE
Body Breadth 9 mm
Body Height 5.4 mm
Body Length or Diameter 14 mm
Coil Current(DC)-Max 0.008 A
Coil Operate Voltage(DC) 18 V
Coil Power 200 mW
Coil Release Voltage(DC) 2.4 V
Coil Resistance 2880 Ω
Coil Voltage(DC)-Max 24 V
Coil Voltage-Nom 24 V
Coil/Input Supply Type DC
Contact (AC) Max Power Rating R Load 62.5VA@125VAC
Contact (AC) Max Rating R Load 2A@125VAC
Contact Current(AC)-Max 2 A
Contact Current(DC)-Max 2 A
Contact (DC) Max Power Rating R Load 60W@220VDC
Contact (DC) Max Rating R Load 2A@220VDC
Contact Resistance 75 mΩ
Contact Voltage(AC)-Max 125 V
Contact Voltage(DC)-Max 220 V
Contact/Output Supply Type AC/DC
Electrical Life 100000 Cycle(s)
End Contact Material Silver Nickel
End Contact Plating GOLD
Input Switching Control Type Random
Insulation Resistance 1000000000 Ω
Mounting Feature SURFACE MOUNT-STRAIGHT
Number of Terminals 10
Operate Time 4 ms
Operating Temperature-Max 70 °C
Operating Temperature-Min -40 °C
Packing Method TUBE
Physical Dimension 14mm x 9mm x 5.4mm
Reference Standard CSA; UL
Relay Action MOMENTARY
Relay Form 2 FORM C
Relay Function DPDT
Relay Type POWER/SIGNAL RELAY
Release Time 4 ms
Surface Mount NO
Termination Type SOLDER

Alternate Parts for TQ2SL-24V

This table gives cross-reference parts and alternative options found for TQ2SL-24V. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TQ2SL-24V, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TQ2SL-24V-X Panasonic Electronic Components $4.1324 Power/Signal Relay, DPDT, Momentary, 0.008A (Coil), 24VDC (Coil), 200mW (Coil), 2A (Contact), 220VDC (Contact), DC Input, AC/DC Output, Surface Mount-Straight, TQ2SL-24V vs TQ2SL-24V-X
