Relays / Power/Signal Relays / TQ2SA-L-5V
Datasheets
TQ2SA-L-5V by: Panasonic Electronic Components

Power/Signal Relay, 2 Form C, DPDT, Latched, 0.014A (Coil), 5VDC (Coil), 70mW (Coil), 2A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output, Surface Mount-Straight, ROHS COMPLIANT

Part Details for TQ2SA-L-5V by Panasonic Electronic Components

Results Overview of TQ2SA-L-5V by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TQ2SA-L-5V Information

TQ2SA-L-5V by Panasonic Electronic Components is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for TQ2SA-L-5V

Part # Distributor Description Stock Price Buy
DISTI # 09AK9043
Newark Signal Relay, Dpdt, 5Vdc, 2A, Smd Rohs Compliant: Yes |Panasonic TQ2SA-L-5V RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $4.6800
  • 10 $3.5900
  • 25 $3.4400
  • 50 $3.2900
  • 100 $3.1400
$3.1400 / $4.6800 Buy Now
DISTI # 91B1363
Newark Relay, Signal, Dpdt, 30Vdc, 2A, Coil Voltage:5Vdc, Contact Configuration:Dpdt, Contact Current:2A, Product Range:Tq-Smd Series, Relay Mounting:Surface Mount, Coil Type:Latching Single Coil, Relay Terminals:Solder, Coil Current:14Ma Rohs Compliant: Yes |Panasonic TQ2SA-L-5V RoHS: Compliant Min Qty: 50 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 50 $3.8400
  • 100 $3.4200
  • 500 $3.1100
  • 1,000 $2.7500
  • 2,500 $2.5600
$2.5600 / $3.8400 Buy Now
DISTI # 255-1776-5-ND
DigiKey RELAY TELECOM DPDT 2A 5V Min Qty: 1 Lead time: 20 Weeks Container: Tube 615
In Stock
  • 1 $4.1800
  • 10 $3.7230
  • 25 $3.5552
  • 50 $3.4334
  • 100 $3.3158
  • 250 $3.1662
  • 500 $3.0575
  • 1,000 $2.9524
$2.9524 / $4.1800 Buy Now
DISTI # TQ2SA-L-5V
Avnet Americas Relay Signal DPDT 125VAC 5VDC Solder Surface Mount Tube - Rail/Tube (Alt: TQ2SA-L-5V) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 20 Weeks, 0 Days Container: Tube 0
  • 50 $2.3952
  • 100 $2.3616
  • 200 $2.3233
  • 300 $2.2849
  • 400 $2.2464
$2.2464 / $2.3952 Buy Now
DISTI # 769-TQ2SA-L-5V
Mouser Electronics Low Signal Relays - PCB 2A 5VDC DPDT LATCHING SMD RoHS: Compliant 147
  • 1 $4.0800
  • 10 $3.9000
  • 50 $3.3000
  • 100 $3.2000
  • 250 $2.8000
  • 2,500 $2.5800
$2.5800 / $4.0800 Buy Now
DISTI # 70158661
RS Relay, Surface Mount, 14 mA +/- 10 % (Operational) (Typ.), 5 VDC (Typ.), DPDT Min Qty: 1 Package Multiple: 1 Lead time: 54 Weeks, 0 Days Container: Bulk 25
  • 1 $4.2200
  • 10 $4.1000
  • 25 $4.0100
  • 50 $3.9300
  • 100 $3.8400
$3.8400 / $4.2200 Buy Now
Onlinecomponents.com Signal Relay 5VDC 2A DPDT(14x11.5x5.6)mm SMD RoHS: Compliant 925 In Stock
  • 50 $3.4030
  • 100 $3.2510
  • 250 $3.0050
  • 500 $2.8490
  • 1,000 $2.8290
  • 2,500 $2.8100
  • 5,000 $2.7960
  • 7,500 $2.7820
$2.7820 / $3.4030 Buy Now
DISTI # 71330263
Verical Signal Relay 5VDC 2A DPDT(14x11.5x5.6)mm SMD RoHS: Compliant Min Qty: 50 Package Multiple: 50 Date Code: 2326 Americas - 900
  • 50 $4.4200
  • 100 $4.2250
  • 250 $3.9130
  • 500 $3.7050
  • 1,000 $3.6790
$3.6790 / $4.4200 Buy Now
Quest Components POWER/SIGNAL RELAY, DPDT, LATCHED, 0.014A (COIL), 5VDC (COIL), 70mW (COIL), 2A (CONTACT), 220VDC (CONTACT), SURFACE MOUNT-STRAIGHT 34
  • 1 $6.3000
  • 3 $4.2000
  • 7 $3.1500
$3.1500 / $6.3000 Buy Now
Quest Components POWER/SIGNAL RELAY, DPDT, LATCHED, 0.014A (COIL), 5VDC (COIL), 70mW (COIL), 2A (CONTACT), 220VDC (CONTACT), SURFACE MOUNT-STRAIGHT 32
  • 1 $6.3000
  • 3 $4.2000
  • 7 $3.1500
$3.1500 / $6.3000 Buy Now
DISTI # TQ2SA-L-5V
IBS Electronics SIGNAL RELAYTQ RELAY | PANASONIC ELECTRONIC COMPONENTS TQ2SA-L-5V-Z Min Qty: 23 Package Multiple: 1 25
  • 23 $2.9125
$2.9125 Buy Now
NexGen Digital   1
RFQ
DISTI # 000000000000007072
Sager RELAY Min Qty: 50 0
  • 50 $2.9500
  • 150 $2.8200
  • 250 $2.7400
  • 500 $2.6700
  • 1,050 $2.5600
$2.5600 / $2.9500 Buy Now
Cytech Systems Limited RELAY TELECOM DPDT 2A 5VDC 25
RFQ
Master Electronics Signal Relay 5VDC 2A DPDT(14x11.5x5.6)mm SMD RoHS: Compliant 925 In Stock
  • 50 $3.4030
  • 100 $3.2510
  • 250 $3.0050
  • 500 $2.8490
  • 1,000 $2.8290
  • 2,500 $2.8100
  • 5,000 $2.7960
  • 7,500 $2.7820
$2.7820 / $3.4030 Buy Now

Part Details for TQ2SA-L-5V

TQ2SA-L-5V CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

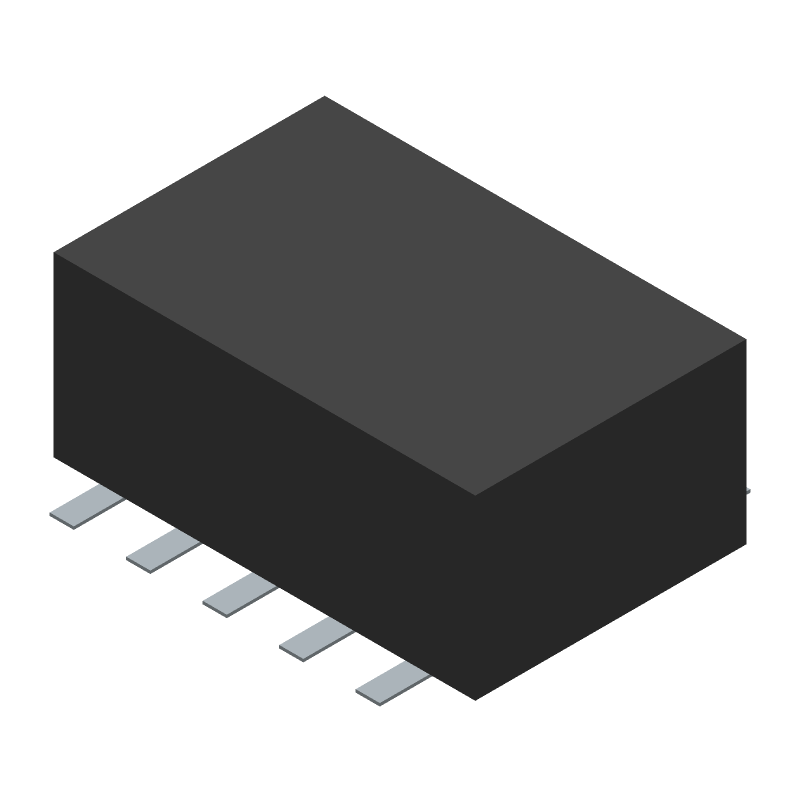

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TQ2SA-L-5V Part Data Attributes

Parametric Data
TQ2SA-L-5V Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
TQ2SA-L-5V Panasonic Electronic Components Power/Signal Relay, 2 Form C, DPDT, Latched, 0.014A (Coil), 5VDC (Coil), 70mW (Coil), 2A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output, Surface Mount-Straight, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.49.00.50
Factory Lead Time 20 Weeks
Samacsys Manufacturer Panasonic
Additional Feature LOW PROFILE
Body Breadth 9 mm
Body Height 5.4 mm
Body Length or Diameter 14 mm
Coil Current(DC)-Max 0.014 A
Coil Operate Voltage(DC) 3.75 V
Coil Power 70 mW
Coil Release Voltage(DC) 3.75 V
Coil Resistance 357 Ω
Coil Voltage(DC)-Max 5 V
Coil Voltage-Nom 5 V
Coil/Input Supply Type DC
Contact (AC) Max Power Rating R Load 62.5VA@125VAC
Contact (AC) Max Rating R Load 2A@125VAC
Contact Current(AC)-Max 2 A
Contact Current(DC)-Max 2 A
Contact (DC) Max Power Rating R Load 60W@30VDC
Contact (DC) Max Rating R Load 2A@220VDC
Contact Resistance 75 mΩ
Contact Voltage(AC)-Max 125 V
Contact Voltage(DC)-Max 220 V
Contact/Output Supply Type AC/DC
Electrical Life 100000 Cycle(s)
End Contact Material Silver Nickel
End Contact Plating GOLD
Input Switching Control Type Random
Insulation Resistance 1000000000 Ω
Mounting Feature SURFACE MOUNT-STRAIGHT
Number of Terminals 10
Operate Time 4 ms
Operating Temperature-Max 70 °C
Operating Temperature-Min -40 °C
Packing Method TUBE
Physical Dimension 14mm x 9mm x 5.4mm
Reference Standard CSA; UL
Relay Action LATCHED
Relay Form 2 FORM C
Relay Function DPDT
Relay Type POWER/SIGNAL RELAY
Release Time 4 ms
Surface Mount NO
Termination Type SOLDER

TQ2SA-L-5V Related Parts

TQ2SA-L-5V Frequently Asked Questions (FAQ)

  • The maximum switching frequency of the TQ2SA-L-5V relay is 20 Hz. However, it's recommended to limit the switching frequency to 10 Hz or less to ensure reliable operation and extend the relay's lifespan.

  • The TQ2SA-L-5V relay is rated for operation up to 85°C. While it can tolerate short-term excursions up to 100°C, continuous operation above 85°C may affect its reliability and lifespan.

  • To ensure the relay's contacts are clean and free of contamination, use a soft brush or a lint-free cloth to gently remove any debris or dust. Avoid using chemicals or solvents, as they may damage the relay's internal components.

  • The recommended PCB layout and spacing for the TQ2SA-L-5V relay can be found in the Panasonic application note AN13184. In general, ensure a minimum of 1.5 mm spacing between the relay and other components, and follow good PCB design practices to minimize electromagnetic interference (EMI).

  • The TQ2SA-L-5V relay is not intended for use in safety-critical applications, such as medical devices or aerospace systems. For such applications, consider using relays with specific safety certifications, such as UL or IEC 61508.
