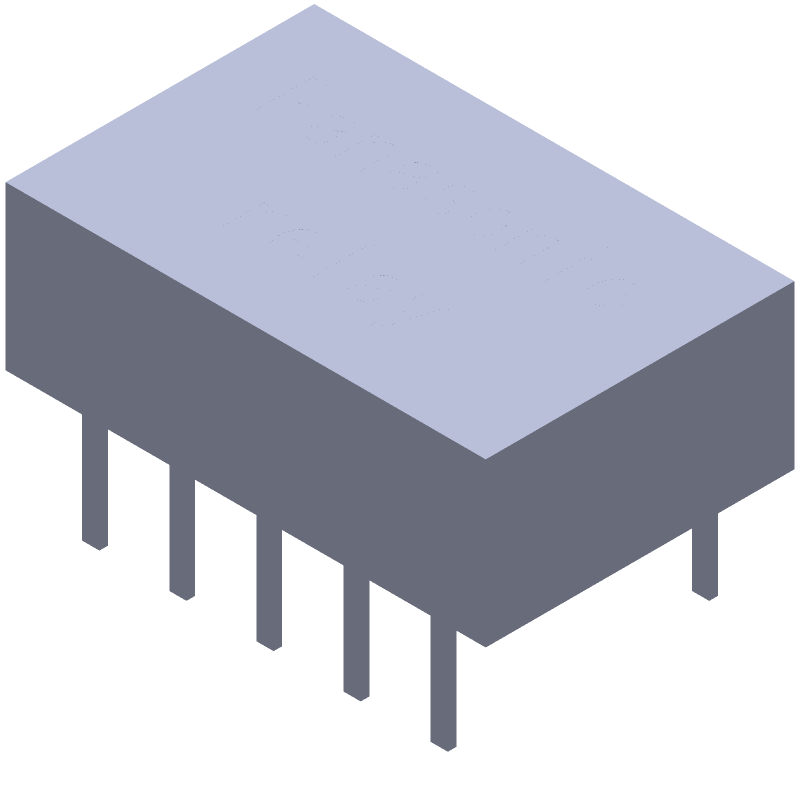

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TQ2-L2-24V by Panasonic Electronic Components
Results Overview of TQ2-L2-24V by Panasonic Electronic Components
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TQ2-L2-24V Information
TQ2-L2-24V by Panasonic Electronic Components is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for TQ2-L2-24V
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
24M8563
|
Newark | Signal Relay, Tq Series, Latching Dual Coil, Dpdt, Through Hole, 1 A, 24 Vdc Rohs Compliant: Yes |Panasonic TQ2-L2-24V RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.7200 / $3.6700 | Buy Now |
|
DISTI #
255-1009-5-ND
|
DigiKey | RELAY TELECOM DPDT 1A 24V Min Qty: 1 Lead time: 16 Weeks Container: Tube | Temporarily Out of Stock |
|
$1.6873 / $2.5900 | Buy Now |
|
DISTI #
TQ2-L2-24V
|
Avnet Americas | Electromechanical Relay DPDT 1A 24VDC 1.92KOhm Through Hole - Rail/Tube (Alt: TQ2-L2-24V) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 16 Weeks, 0 Days Container: Tube | 0 |
|
$2.4687 / $2.6322 | Buy Now |
|
DISTI #
769-TQ2-L2-24V
|
Mouser Electronics | Low Signal Relays - PCB 1A 24VDC DPDT 2 COIL LATCHING PCB RoHS: Compliant | 166 |
|
$2.1800 / $3.0300 | Buy Now |
|
DISTI #
V36:1790_10817636
|
Arrow Electronics | Signal Relay 24VDC 1A DPDT( (14mm 9mm 5mm)) THT RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 16 Weeks Date Code: 2327 | Americas - 6 |
|
$2.5760 | Buy Now |
|
DISTI #
70158660
|
RS | Relay, 12.5 mA +/- 10 % (Operational) (Typ.), 24 VDC (Typ.), DPDT Min Qty: 1 Package Multiple: 1 Lead time: 54 Weeks, 0 Days Container: Bulk | 12 |
|
$2.8400 / $3.1900 | Buy Now |
|
|
Onlinecomponents.com | Signal Relay 24VDC 1A DPDT(14x9x5)mm THT RoHS: Compliant |
5020 In Stock |
|
$2.0700 / $2.2000 | Buy Now |
|
DISTI #
81003717
|
Verical | Signal Relay 24VDC 1A DPDT( (14mm 9mm 5mm)) THT RoHS: Compliant Min Qty: 50 Package Multiple: 50 Date Code: 2417 | Americas - 5000 |
|
$2.4824 / $2.5882 | Buy Now |
|
DISTI #
69766467
|
Verical | Signal Relay 24VDC 1A DPDT( (14mm 9mm 5mm)) THT RoHS: Compliant Min Qty: 6 Package Multiple: 6 Date Code: 2327 | Americas - 6 |
|
$2.5760 | Buy Now |
|
DISTI #
TQ2-L2-24V
|
TME | Relay: electromagnetic, DPDT, Ucoil: 24VDC, Icontacts max: 2A, TQ Min Qty: 1 | 260 |
|
$2.4400 / $3.8400 | Buy Now |
Part Details for TQ2-L2-24V
TQ2-L2-24V CAD Models
TQ2-L2-24V Part Data Attributes
|
|
TQ2-L2-24V
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TQ2-L2-24V
Panasonic Electronic Components
Power/Signal Relay, DPDT, Latched, 0.013A (Coil), 24VDC (Coil), 300mW (Coil), 1A (Contact), 110VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.49.00.50 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Additional Feature | LOW PROFILE | |
| Body Breadth | 9 mm | |
| Body Height | 5 mm | |
| Body Length or Diameter | 14 mm | |
| Coil Current(DC)-Max | 0.013 A | |
| Coil Operate Voltage(DC) | 18 V | |
| Coil Power | 300 mW | |
| Coil Release Voltage(DC) | 18 V | |
| Coil Resistance | 1920 Ω | |
| Coil Voltage(DC)-Max | 24 V | |
| Coil/Input Supply Type | DC | |
| Contact (AC) Max Rating R Load | 1A@125VAC | |
| Contact Current(AC)-Max | 1 A | |
| Contact Current(DC)-Max | 1 A | |
| Contact (DC) Max Rating R Load | 1A@110VDC | |
| Contact Voltage(AC)-Max | 125 V | |
| Contact Voltage(DC)-Max | 110 V | |
| Contact/Output Supply Type | AC/DC | |
| Electrical Life | 200000 Cycle(s) | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operate Time | 3 ms | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | BOX; TUBE | |
| Physical Dimension | 14mm x 9mm x 5mm | |
| Reference Standard | CSA; UL | |
| Relay Action | LATCHED | |
| Relay Function | DPDT | |
| Relay Type | POWER/SIGNAL RELAY | |
| Release Time | 3 ms | |
| Surface Mount | NO | |
| Termination Type | SOLDER |
Alternate Parts for TQ2-L2-24V
This table gives cross-reference parts and alternative options found for TQ2-L2-24V. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TQ2-L2-24V, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| G6HK-2-DC24 | OMRON Corporation | Check for Price | Power/Signal Relay, 2 Form C, DPDT, Latched, 0.013A (Coil), 24VDC (Coil), 300mW (Coil), 2A (Contact), 30VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount | TQ2-L2-24V vs G6HK-2-DC24 |
TQ2-L2-24V Frequently Asked Questions (FAQ)
-
The maximum switching frequency of the TQ2-L2-24V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
-
The TQ2-L2-24V relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application.
-
Panasonic recommends a minimum spacing of 1.5 mm between the relay and other components on the PCB to ensure proper heat dissipation and to prevent electrical interference. It's also recommended to follow Panasonic's recommended PCB layout guidelines to ensure reliable operation.
-
The TQ2-L2-24V relay is designed to withstand vibrations up to 10 G (10-55 Hz). However, it's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application and to discuss any additional measures that may be necessary to ensure reliable operation.
-
Panasonic recommends derating the relay's current capacity by 1.5% per degree Celsius above 40°C to ensure reliable operation. It's recommended to consult with Panasonic's application engineers to determine the suitable derating curve for your specific application.
