Capacitors / Tantalum Capacitors / TPSP106M010R2000
Datasheets
TPSP106M010R2000 by: Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 0805, CHIP

Part Details for TPSP106M010R2000 by Kyocera AVX Components

Results Overview of TPSP106M010R2000 by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TPSP106M010R2000 Information

TPSP106M010R2000 by Kyocera AVX Components is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for TPSP106M010R2000

Part # Distributor Description Stock Price Buy
DISTI # 15P3730
Newark Surface Mount Tantalum Capacitor, Tps Series, 10 F, 20%, 10 V, 0805 [2012 Metric], P Rohs Compliant: Yes |Kyocera Avx TPSP106M010R2000 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 2270
  • 1 $0.6220
  • 10 $0.3430
$0.3430 / $0.6220 Buy Now
DISTI # 22K2788
Newark Capacitor Tant, 10Uf, 10V, 2 Ohm, 0.2, 805, Capacitance:10Μf, Voltage(Dc):10V, Capacitor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 20%, Esr:2Ohm, Manufacturer Size Code:P, Failure Rate:-, Ripple Current:173Ma Rohs Compliant: Yes |Kyocera Avx TPSP106M010R2000 RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,500 $0.3590
$0.3590 Buy Now
DISTI # 478-9264-1-ND
DigiKey CAP TANT 10UF 20% 10V 0805 Min Qty: 1 Lead time: 25 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 28005
In Stock
  • 1 $0.5700
  • 10 $0.3510
  • 50 $0.2648
  • 100 $0.2382
  • 500 $0.1933
  • 1,000 $0.1795
  • 2,500 $0.1649
  • 5,000 $0.1561
  • 7,500 $0.1517
  • 12,500 $0.1468
  • 17,500 $0.1439
  • 25,000 $0.1412
  • 62,500 $0.1352
$0.1352 / $0.5700 Buy Now
DISTI # TPSP106M010R2000
Avnet Americas Surface Mount Tantalum Capacitor, 10 uF, 10 V, ? 20%, -55 ?C, 125 ?C, 0805 [2012-15 Metric] - Tape and Reel (Alt: TPSP106M010R2000) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 111 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.3520
  • 5,000 $0.3465
  • 10,000 $0.3410
  • 15,000 $0.3355
  • 20,000 $0.3300
$0.3300 / $0.3520 Buy Now
DISTI # TPSP106M010R2000
Avnet Americas Surface Mount Tantalum Capacitor, 10 uF, 10 V, ? 20%, -55 ?C, 125 ?C, 0805 [2012-15 Metric] - Tape and Reel (Alt: TPSP106M010R2000) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 25 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.3300
  • 5,000 $0.3245
  • 10,000 $0.3190
  • 15,000 $0.3135
  • 20,000 $0.3080
$0.3080 / $0.3300 Buy Now
DISTI # 581-TPSP106M010R2000
Mouser Electronics Tantalum Capacitors - Solid SMD 10V 10uF 20% 0805 ES R= 2 Ohm RoHS: Compliant 4286
  • 1 $0.5500
  • 10 $0.3580
  • 2,500 $0.3410
  • 5,000 $0.3310
$0.3310 / $0.5500 Buy Now
DISTI # TPSP106M010R2000
TTI Tantalum Capacitors - Solid SMD 10V 10uF 20% 0805 ES R= 2 Ohm RoHS: Compliant pbFree: Pb-Free Min Qty: 2500 Package Multiple: 2500 Container: Reel Americas - 0
  • 2,500 $0.1740
  • 5,000 $0.1710
  • 7,500 $0.1680
  • 12,500 $0.1640
  • 25,000 $0.1610
  • 62,500 $0.1580
$0.1580 / $0.1740 Buy Now
DISTI # TPSP106M010R2000
TME Capacitor: tantalum, 10uF, 10VDC, SMD, P, 0805, ±20%, -55÷125°C Min Qty: 2500 0
  • 2,500 $0.2000
  • 12,500 $0.1790
$0.1790 / $0.2000 RFQ
DISTI # TPSP106M010R2000
IBS Electronics CAP TANT SOLID 10UF 10V P CASE 20% (2.05 X 1.35 X 1.5MM) SMD 2012-15 2 OHM 125A&#x81, HA&#x81, &#x8E, T/R Min Qty: 5000 Package Multiple: 1 0
  • 5,000 $0.1664
  • 5,000 $0.1651
  • 7,500 $0.1638
  • 10,000 $0.1625
  • 12,500 $0.1599
$0.1599 / $0.1664 Buy Now
DISTI # TPSP106M010R2000
Avnet Abacus Surface Mount Tantalum Capacitor 10 uF 10 V 20 55 C 125 C 0805 201215 Metric - Tape and Reel (Alt: TPSP106M010R2000) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # TPSP106M010R2000
Avnet Asia Surface Mount Tantalum Capacitor, 10 uF, 10 V, ? 20%, -55 ?C, 125 ?C, 0805 [2012-15 Metric] (Alt: TPSP106M010R2000) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 24 Weeks, 0 Days 0
RFQ
LCSC 10uF 10V 2100kHz 20% CASE-P-2012-15(mm) Tantalum Capacitors ROHS 2125
  • 5 $0.2729
  • 50 $0.2178
  • 150 $0.1942
  • 500 $0.1647
  • 2,500 $0.1516
  • 5,000 $0.1437
$0.1437 / $0.2729 Buy Now

Part Details for TPSP106M010R2000

TPSP106M010R2000 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

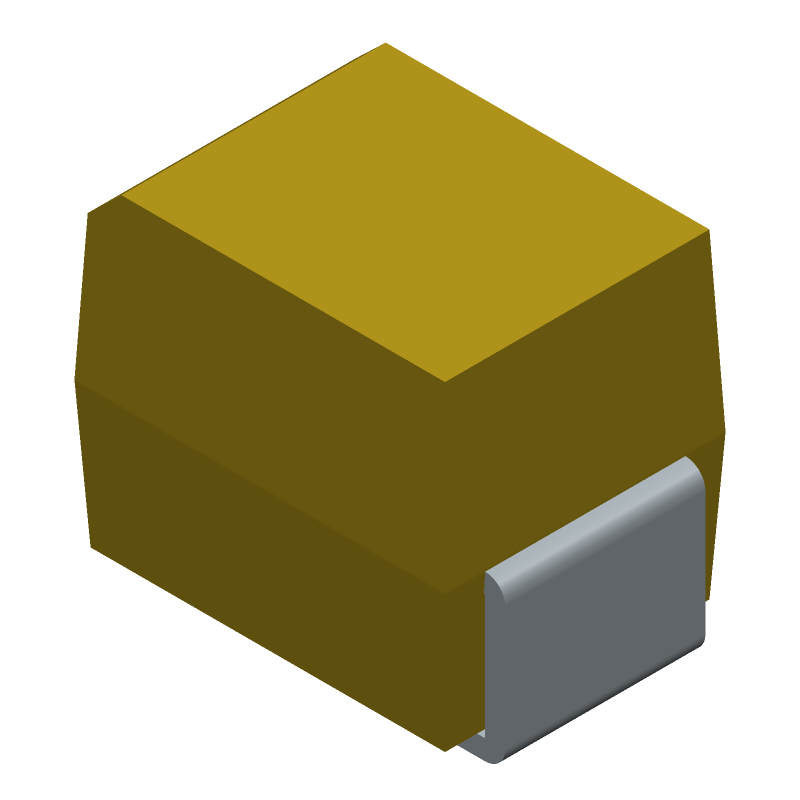

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TPSP106M010R2000 Part Data Attributes

Parametric Data
TPSP106M010R2000 Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
TPSP106M010R2000 Kyocera AVX Components Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 0805, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 25 Weeks
Samacsys Manufacturer Kyocera AVX
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 10 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (DRY/SOLID)
ESR 2000 mΩ
Height 1.5 mm
JESD-609 Code e3
Leakage Current 0.001 mA
Length 2.05 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PLASTIC, 7 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 10 V
Ripple Current 69 mA
Size Code 0805
Surface Mount YES
Tan Delta 0.08
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape J BEND
Width 1.35 mm

Alternate Parts for TPSP106M010R2000

This table gives cross-reference parts and alternative options found for TPSP106M010R2000. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPSP106M010R2000, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TM8R106M010CZZ Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 0805, CHIP TPSP106M010R2000 vs TM8R106M010CZZ
TM8R106M010HZZ Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 0805, CHIP TPSP106M010R2000 vs TM8R106M010HZZ
TM8R106M010USA Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 0805, CHIP TPSP106M010R2000 vs TM8R106M010USA
TM8R106M010EZA Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 0805, CHIP TPSP106M010R2000 vs TM8R106M010EZA
TM8R106M010UZB Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 0805, CHIP TPSP106M010R2000 vs TM8R106M010UZB
TM8R106M010ESB Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 0805, CHIP TPSP106M010R2000 vs TM8R106M010ESB
TPSP106M010H2000 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 0805, CHIP TPSP106M010R2000 vs TPSP106M010H2000
TM8R106M010CSB Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 0805, CHIP TPSP106M010R2000 vs TM8R106M010CSB
TM8R106M010RSZ Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 0805, CHIP TPSP106M010R2000 vs TM8R106M010RSZ
TM8R106M010USB Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 0805, CHIP TPSP106M010R2000 vs TM8R106M010USB

TPSP106M010R2000 Related Parts

TPSP106M010R2000 Frequently Asked Questions (FAQ)

  • The recommended land pattern for the TPSP106M010R2000 is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.

  • Yes, the TPSP106M010R2000 is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • The TPSP106M010R2000 is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the capacitance value may decrease by up to 20% at the maximum operating temperature.

  • Yes, the TPSP106M010R2000 is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5.

  • The recommended voltage derating for the TPSP106M010R2000 is 80% of the rated voltage to ensure reliable operation and prevent premature failure.
