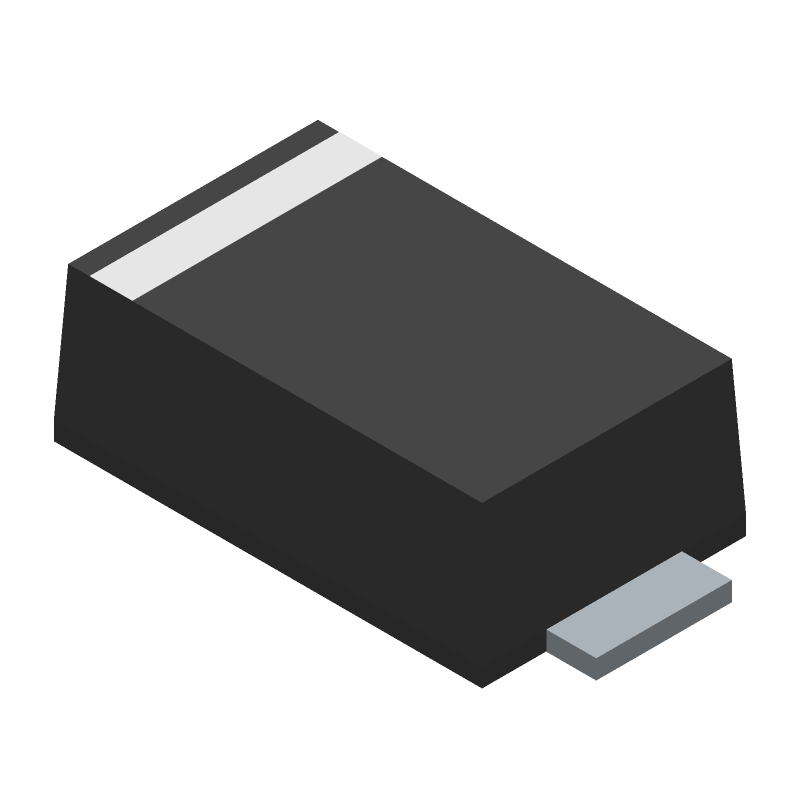

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPSMF4L28A by Littelfuse Inc
Results Overview of TPSMF4L28A by Littelfuse Inc
- Distributor Offerings: (25 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
TPSMF4L28A Information
TPSMF4L28A by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for TPSMF4L28A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK5742
|
Newark | Tvs Diode, 2Kw, Unidir, Sod-123Fl, Product Range:Tpsmf4L Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:28V, Clamping Voltage Max:45.4V, Diode Case Style:Sod-123Fl, No. Of Pins:2Pins, Minimum Breakdown Voltage:31.1V Rohs Compliant: Yes |Littelfuse TPSMF4L28A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1671 |
|
$0.1630 | Buy Now |
|
DISTI #
34AC6843
|
Newark | Tvs Tpsmf4L 28V Uni, 7 Tr/ Tr Rohs Compliant: Yes |Littelfuse TPSMF4L28A RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1160 / $0.1880 | Buy Now |
|
DISTI #
F7544CT-ND
|
DigiKey | TVS DIODE 28VWM 45.4VC SOD123F Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
11866 In Stock |
|
$0.1116 / $0.4600 | Buy Now |
|
DISTI #
576-TPSMF4L28A
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 2kW 28V AEC-Q101 5% Uni-Directional RoHS: Compliant | 14929 |
|
$0.1110 / $0.4500 | Buy Now |
|
DISTI #
E02:0323_10269891
|
Arrow Electronics | Diode TVS Single Uni-Dir 28V 400W Automotive AEC-Q101 2-Pin SOD-123F T/R Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks | Europe - 30000 |
|
$0.1097 / $0.1158 | Buy Now |
|
DISTI #
V72:2272_16265609
|
Arrow Electronics | Diode TVS Single Uni-Dir 28V 400W Automotive AEC-Q101 2-Pin SOD-123F T/R Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2404 Container: Cut Strips | Americas - 151 |
|
$0.1145 / $0.3811 | Buy Now |
|
DISTI #
72244753
|
RS | TVS Diode, TPSMF4L Series, 45.4V Clamping, 8.8A Peak Pulse, SOD-123FL Min Qty: 1 Package Multiple: 1 Container: Bulk | 3000 |
|
$0.3180 / $0.4550 | Buy Now |
|
DISTI #
87482740
|
Verical | Diode TVS Single Uni-Dir 28V 400W Automotive AEC-Q101 2-Pin SOD-123F T/R Min Qty: 3000 Package Multiple: 3000 Date Code: 2452 | Americas - 30000 |
|
$0.1099 / $0.1160 | Buy Now |
|
DISTI #
62414316
|
Verical | Diode TVS Single Uni-Dir 28V 400W Automotive AEC-Q101 2-Pin SOD-123F T/R Min Qty: 273 Package Multiple: 1 | Americas - 19778 |
|
$0.1000 / $0.1430 | Buy Now |
|
DISTI #
73492182
|
Verical | Diode TVS Single Uni-Dir 28V 400W Automotive AEC-Q101 2-Pin SOD-123F T/R Min Qty: 334 Package Multiple: 1 Date Code: 2301 | Americas - 2050 |
|
$0.2192 / $0.2351 | Buy Now |
Part Details for TPSMF4L28A
TPSMF4L28A CAD Models
TPSMF4L28A Part Data Attributes
|
|
TPSMF4L28A
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
TPSMF4L28A
Littelfuse Inc
Trans Voltage Suppressor Diode, 2000W, 28V V(RWM), Unidirectional, 1 Element, Silicon,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Date Of Intro | 2016-05-19 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY | |
| Breakdown Voltage-Max | 34.4 V | |
| Breakdown Voltage-Min | 31.1 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 2000 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Reference Standard | AEC-Q101; UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 28 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
TPSMF4L28A Frequently Asked Questions (FAQ)
-
A good PCB layout for the TPSMF4L28A involves keeping the leads as short as possible, using a solid ground plane, and placing the device close to the protected circuit. Additionally, the PCB should be designed to minimize inductance and ensure good thermal dissipation.
-
To choose the correct fuse rating, consider the maximum current and voltage of your circuit, as well as the desired response time and fault current. Consult the datasheet and application notes for guidance, and consider consulting with a Littelfuse engineer if needed.
-
The TPSMF4L28A is rated for operation from -40°C to 85°C, but derating may be necessary for high-temperature applications. Consult the datasheet for specific temperature derating curves.
-
Yes, the TPSMF4L28A is designed for high-reliability applications and meets various industry standards for safety and reliability. However, it's essential to follow proper design and validation procedures to ensure the device meets the specific requirements of your application.
-
Follow the recommended soldering profile and assembly guidelines provided in the datasheet and application notes. Ensure the device is handled and stored properly to prevent damage, and use a soldering iron with a temperature-controlled tip to prevent overheating.
