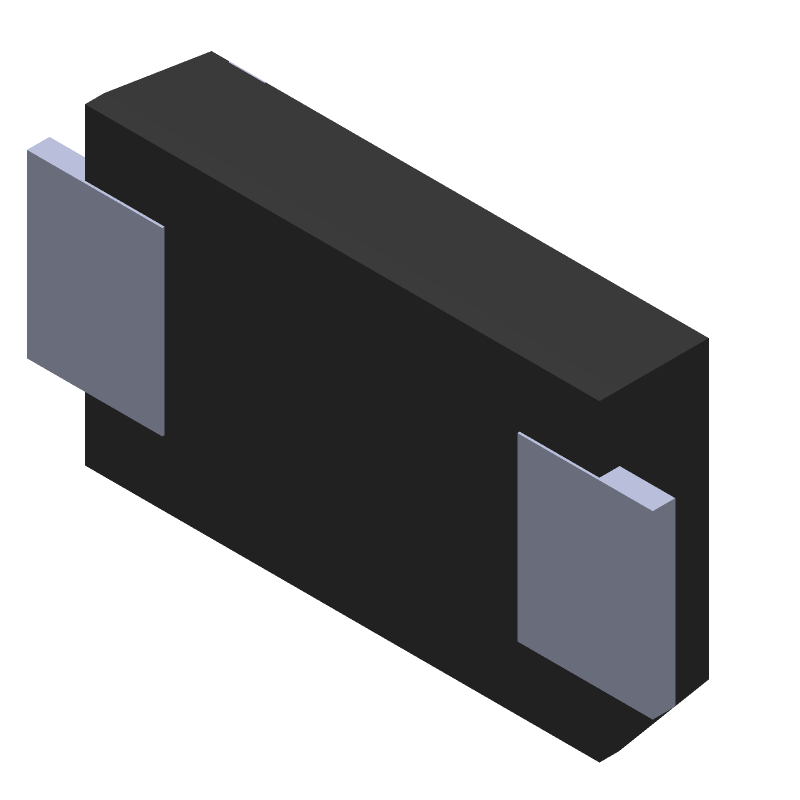

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPSMA6L7.5A by Littelfuse Inc
Results Overview of TPSMA6L7.5A by Littelfuse Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Security and Surveillance
Audio and Video Systems
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
TPSMA6L7.5A Information
TPSMA6L7.5A by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for TPSMA6L7.5A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64W7540
|
Newark | Diode, Tvs, 600W, 7.5V, Unidirectional, Do-221Ac, Full Reel, Product Range:Tpsma6L Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:7.5V, Clamping Voltage Max:12.9V, Diode Case Style:Do-221Ac, No. Of Pins:2Pins Rohs Compliant: Yes |Littelfuse TPSMA6L7.5A RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1390 / $0.1850 | Buy Now |
|
DISTI #
66W7884
|
Newark | Diode, Tvs, 600W, 7.5V, Unidirectional, Do-221Ac, Product Range:Tpsma6L Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:7.5V, Clamping Voltage Max:12.9V, Diode Case Style:Do-221Ac, No. Of Pins:2Pins Rohs Compliant: Yes |Littelfuse TPSMA6L7.5A RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.1810 | Buy Now |
|
DISTI #
576-TPSMA6L7.5A
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 600W 7.5V AEC-Q101 5% Uni-Directional RoHS: Compliant | 52 |
|
$0.1310 / $0.4800 | Buy Now |
|
DISTI #
TPSMA6L7.5A
|
TTI | ESD Protection Diodes / TVS Diodes 600W 7.5V AEC-Q101 5% Uni-Directional RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.1450 | Buy Now |
|
DISTI #
TPSMA6L7.5A
|
TTI | ESD Protection Diodes / TVS Diodes 600W 7.5V AEC-Q101 5% Uni-Directional RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.1450 | Buy Now |
|
DISTI #
TPSMA6L7.5A-LF
|
TME | Diode: TVS, 600W, 8.8V, 46.6A, unidirectional, ±5%, DO221AC, TPSMA6L Min Qty: 3 | 0 |
|
$0.1400 / $0.2630 | RFQ |
Part Details for TPSMA6L7.5A
TPSMA6L7.5A CAD Models
TPSMA6L7.5A Part Data Attributes
|
|
TPSMA6L7.5A
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
TPSMA6L7.5A
Littelfuse Inc
Trans Voltage Suppressor Diode, 600W, 7.5V V(RWM), Unidirectional, 1 Element, Silicon, DO-221AC, SMA, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY | |
| Breakdown Voltage-Max | 9.21 V | |
| Breakdown Voltage-Min | 8.33 V | |
| Breakdown Voltage-Nom | 8.77 V | |
| Clamping Voltage-Max | 12.9 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-221AC | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 3 W | |
| Reference Standard | AEC-Q101; IEC-61000-4-2, 4-4; UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 7.5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
TPSMA6L7.5A Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for TPSMA6L7.5A can be found in the Littelfuse application note AN9313, which provides guidelines for surface mount assembly of TVS diodes.
-
To select the correct TVS diode, consider factors such as the maximum voltage, current, and power rating required for your application. You should also consider the clamping voltage, response time, and capacitance of the TVS diode. Littelfuse provides a TVS Diode Selection Guide that can help with this process.
-
A unidirectional TVS diode protects against overvoltage in one direction, while a bidirectional TVS diode protects against overvoltage in both directions. The TPSMA6L7.5A is a unidirectional TVS diode, which means it is designed to protect against positive overvoltage surges.
-
Yes, the TPSMA6L7.5A is qualified to AEC-Q101, which means it meets the standards for automotive applications. It is also suitable for high-reliability applications, such as aerospace and defense, due to its high surge capability and low leakage current.
-
To ensure proper soldering and assembly, follow the recommended soldering profile and handling procedures outlined in the Littelfuse application note AN9313. This includes using a soldering iron with a temperature of 260°C (500°F) or less, and avoiding excessive mechanical stress or vibration during assembly.
