Capacitors / Tantalum Capacitors / TPSE476K035R0200
Datasheets
TPSE476K035R0200 by: Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 2917, CHIP

Part Details for TPSE476K035R0200 by Kyocera AVX Components

Results Overview of TPSE476K035R0200 by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TPSE476K035R0200 Information

TPSE476K035R0200 by Kyocera AVX Components is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for TPSE476K035R0200

Part # Distributor Description Stock Price Buy
DISTI # 93K0873
Newark Surface Mount Tantalum Capacitor, Tps Series, 47 F, 10%, 35 V, 2917 [7343 Metric], E Rohs Compliant: Yes |Kyocera Avx TPSE476K035R0200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1459
  • 1 $3.6500
  • 10 $2.4900
  • 25 $2.2600
  • 50 $2.0200
  • 100 $1.6700
  • 250 $1.5000
$1.5000 / $3.6500 Buy Now
DISTI # 94W9883
Newark Surface Mount Tantalum Capacitor, Tps Series, 47 F, 10%, 35 V, 2917 [7343 Metric], E Rohs Compliant: Yes |Kyocera Avx TPSE476K035R0200 RoHS: Compliant Min Qty: 400 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 400 $1.3100
  • 800 $1.2900
$1.2900 / $1.3100 Buy Now
DISTI # 478-3109-1-ND
DigiKey CAP TANT 47UF 10% 35V 2917 Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 5447
In Stock
  • 1 $3.1800
  • 10 $2.2170
  • 50 $1.8358
  • 100 $1.7180
  • 400 $1.5412
  • 800 $1.4754
  • 1,200 $1.4425
  • 2,000 $1.4060
  • 2,800 $1.3846
  • 4,000 $1.3641
$1.3641 / $3.1800 Buy Now
DISTI # TPSE476K035R0200
Avnet Americas Surface Mount Tantalum Capacitor, 47 uF, 35 V, ? 10%, -55 ?C to 125 ?C, 2917 [7343 Metric] - Tape and Reel (Alt: TPSE476K035R0200) RoHS: Compliant Min Qty: 400 Package Multiple: 400 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 400 $0.7399
  • 800 $0.7361
  • 1,600 $0.7081
  • 2,400 $0.7045
  • 3,200 $0.7008
$0.7008 / $0.7399 Buy Now
DISTI # 581-TPSE476K035R0200
Mouser Electronics Tantalum Capacitors - Solid SMD 35V 47uF 10% 2917 ES R= 200 mOhm RoHS: Compliant 1307
  • 1 $3.4400
  • 10 $2.4900
  • 50 $2.0500
  • 100 $1.9000
  • 250 $1.4500
  • 400 $1.3500
  • 800 $1.2400
  • 4,800 $1.2000
$1.2000 / $3.4400 Buy Now
DISTI # V36:1790_07465693
Arrow Electronics Cap Tant Solid 47uF 35V E CASE 10%( 7.3 X 4.3 X 4.1mm) Inward L SMD 7343-43 0.2 Ohm 125°C T/R RoHS: Compliant Min Qty: 400 Package Multiple: 400 Lead time: 13 Weeks Date Code: 2441 Americas - 189200
  • 400 $1.2261
  • 2,000 $1.2138
  • 4,000 $1.1873
  • 6,000 $1.1755
  • 10,000 $1.1470
  • 20,000 $1.1353
  • 50,000 $1.1236
$1.1236 / $1.2261 Buy Now
DISTI # E02:0323_01308631
Arrow Electronics Cap Tant Solid 47uF 35V E CASE 10%( 7.3 X 4.3 X 4.1mm) Inward L SMD 7343-43 0.2 Ohm 125°C T/R RoHS: Compliant Min Qty: 400 Package Multiple: 400 Lead time: 12 Weeks Date Code: 2511 Europe - 23600
  • 400 $1.2393
  • 2,000 $1.2270
  • 4,000 $1.2018
  • 6,000 $1.1899
  • 10,000 $1.1780
  • 20,000 $1.1663
  • 50,000 $1.1546
$1.1546 / $1.2393 Buy Now
DISTI # V72:2272_07465693
Arrow Electronics Cap Tant Solid 47uF 35V E CASE 10%( 7.3 X 4.3 X 4.1mm) Inward L SMD 7343-43 0.2 Ohm 125°C T/R RoHS: Compliant Min Qty: 68 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2230 Container: Cut Strips Americas - 68
  • 68 $1.2384
$1.2384 Buy Now
DISTI # 70002025
RS Capacitor, Tantalum, Cap 47uF, Tol 10%, SMT Low ESR, Vol-Rtg 35V, 7343H, TR Min Qty: 400 Package Multiple: 1 Container: Bulk 0
  • 400 $3.7710
  • 800 $3.6950
  • 2,000 $3.5820
  • 4,000 $3.4320
  • 10,000 $3.2050
$3.2050 / $3.7710 RFQ
DISTI # 70001322
RS Capacitor, Tantalum, Cap 47 uF, Tol 10%, Vol-Rtg 35 VDC, SMT, 7343H, ESR 200 mOhms, CT Min Qty: 400 Package Multiple: 1 Container: Bulk 0
  • 400 $3.5200
  • 20,000 $3.4800
  • 40,000 $3.4300
$3.4300 / $3.5200 RFQ
Bristol Electronics   1081
RFQ
Quest Components CAP,TANTALUM / TA2O5,47UF,35VDC,10-% TOL,10+% TOL 3520
  • 1 $3.5100
  • 371 $1.4479
  • 692 $1.3163
$1.3163 / $3.5100 Buy Now
Quest Components CAP,TANTALUM / TA2O5,47UF,35VDC,10-% TOL,10+% TOL 501
  • 1 $2.3000
  • 44 $1.1500
  • 175 $0.9200
$0.9200 / $2.3000 Buy Now
Quest Components CAP,TANTALUM / TA2O5,47UF,35VDC,10-% TOL,10+% TOL 124
  • 1 $3.5100
  • 35 $1.9305
  • 79 $1.7550
$1.7550 / $3.5100 Buy Now
Quest Components CAP,TANTALUM / TA2O5,47UF,35VDC,10-% TOL,10+% TOL 124
  • 1 $3.5100
  • 35 $1.9305
  • 79 $1.7550
$1.7550 / $3.5100 Buy Now
Quest Components CAP,TANTALUM / TA2O5,47UF,35VDC,10-% TOL,10+% TOL 12
  • 1 $3.5100
  • 2 $2.6325
  • 10 $2.1938
$2.1938 / $3.5100 Buy Now
Quest Components CAP,TANTALUM / TA2O5,47UF,35VDC,10-% TOL,10+% TOL 4
  • 1 $3.4908
  • 2 $2.6181
$2.6181 / $3.4908 Buy Now
DISTI # TPSE476K035R0200
TTI Tantalum Capacitors - Solid SMD 35V 47uF 10% 2917 ES R= 200 mOhm RoHS: Compliant pbFree: Pb-Free Min Qty: 400 Package Multiple: 400 Container: Reel Americas - 26800
In Stock
  • 400 $1.3100
  • 1,200 $1.2300
  • 2,000 $1.2000
  • 4,000 $1.1800
  • 6,000 $1.1600
  • 10,000 $1.1300
  • 20,000 $1.1100
$1.1100 / $1.3100 Buy Now
DISTI # TPSE476K035R0200.
TTI Tantalum Capacitors - Solid SMD 47uF 35V 10% L ESR RoHS: Compliant pbFree: Pb-Free Min Qty: 10 Package Multiple: 10 Container: Cut Tape Americas - 570
In Stock
  • 10 $3.4400
$3.4400 Buy Now
DISTI # TPSE476K035R0200
TME Capacitor: tantalum, low ESR, 47uF, 35VDC, SMD, E, 2917, ±10%, 200mΩ Min Qty: 1 0
  • 1 $3.1100
  • 5 $2.4400
  • 10 $2.1500
  • 50 $1.5900
  • 100 $1.4000
  • 200 $1.2300
  • 250 $1.1900
  • 400 $1.1000
$1.1000 / $3.1100 RFQ
ComSIT USA AVAILABLE EU 188
RFQ
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 0
Stock ES - 165
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
NexGen Digital   70
RFQ
DISTI # KTA6021
Rutronik TC 47uF 35V 10% Case E 200mOhm RoHS: Compliant Min Qty: 400 Package Multiple: 400 Container: Reel Stock DE - 16400
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 400 $1.3600
  • 800 $1.3400
  • 1,200 $1.3200
  • 1,600 $1.2800
  • 2,000 $1.2600
$1.2600 / $1.3600 Buy Now
DISTI # SMC-TPSE476K035R0200
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 2800
RFQ
Velocity Electronics Our Stock 2800
RFQ
DISTI # TPSE476K035R0200
Avnet Abacus Surface Mount Tantalum Capacitor 47 uF 35 V 10 55 C to 125 C 2917 7343 Metric - Tape and Reel (Alt: TPSE476K035R0200) RoHS: Compliant Min Qty: 400 Package Multiple: 400 Lead time: 14 Weeks, 0 Days Container: Reel Abacus - 3600
Buy Now
DISTI # TPSE476K035R0200
Avnet Asia Surface Mount Tantalum Capacitor, 47 uF, 35 V, ? 10%, -55 ?C to 125 ?C, 2917 [7343 Metric] (Alt: TPSE476K035R0200) RoHS: Compliant Min Qty: 400 Package Multiple: 400 Lead time: 12 Weeks, 0 Days 0
RFQ
New Advantage Corporation Cap Tant SMD 47�F � 10% 35V E Case Low ESR T&R RoHS: Compliant Min Qty: 1 Package Multiple: 400 5600
  • 400 $1.1900
  • 5,600 $1.1000
$1.1000 / $1.1900 Buy Now
Win Source Electronics CAP TANT 47UF 35V 10% 2917 30000
  • 35 $1.7204
  • 85 $1.4116
  • 130 $1.3675
  • 175 $1.3234
  • 230 $1.2793
  • 305 $1.1469
$1.1469 / $1.7204 Buy Now

Part Details for TPSE476K035R0200

TPSE476K035R0200 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

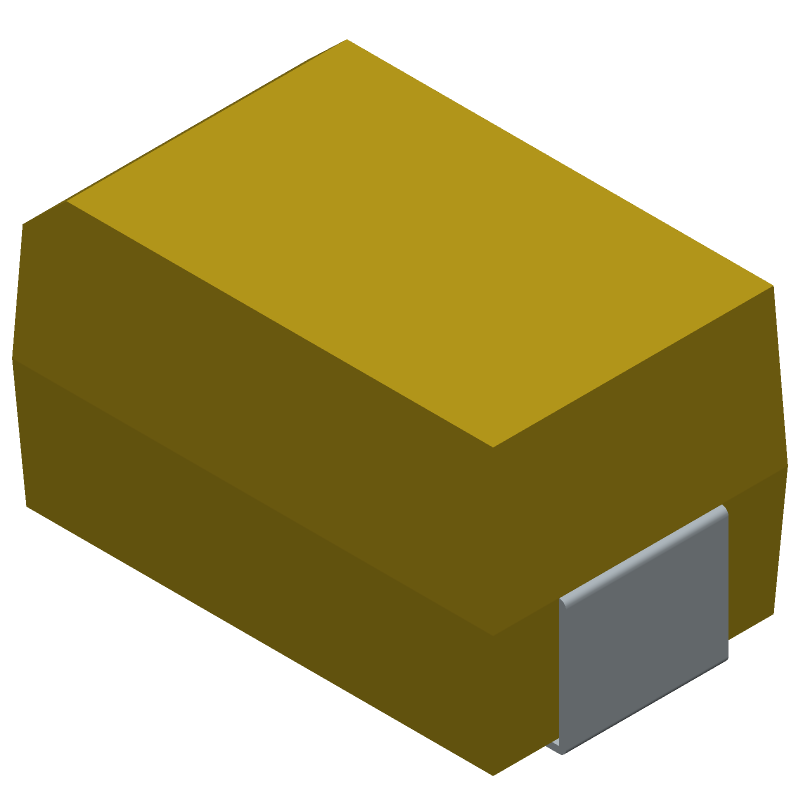

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TPSE476K035R0200 Part Data Attributes

Parametric Data
TPSE476K035R0200 Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
TPSE476K035R0200 Kyocera AVX Components Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 2917, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 13 Weeks
Samacsys Manufacturer Kyocera AVX
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 47 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (DRY/SOLID)
ESR 200 mΩ
Height 4.1 mm
JESD-609 Code e3
Leakage Current 0.0165 mA
Length 7.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PLASTIC, 7 INCH
Polarity POLARIZED
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 35 V
Ripple Current 363 mA
Size Code 2917
Surface Mount YES
Tan Delta 0.06
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape J BEND
Width 4.3 mm

Alternate Parts for TPSE476K035R0200

This table gives cross-reference parts and alternative options found for TPSE476K035R0200. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPSE476K035R0200, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TBJE476K035LRSB0000 Kyocera AVX Components $14.1827 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 2917, CHIP TPSE476K035R0200 vs TBJE476K035LRSB0000
TBME476K035LBSC0023 Kyocera AVX Components $42.4462 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, 2917, TPSE476K035R0200 vs TBME476K035LBSC0023
TPME476K035H0065 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 2917, CHIP TPSE476K035R0200 vs TPME476K035H0065
TBME476K035LRSC0H45 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, 2917, TPSE476K035R0200 vs TBME476K035LRSC0H45
TBJE476K035LBSB0800 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 2917, CHIP TPSE476K035R0200 vs TBJE476K035LBSB0800
TBJE476K035CBLB0H00 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, 2917, TPSE476K035R0200 vs TBJE476K035CBLB0H00
TBJE476K035CWSC0823 Kyocera AVX Components $28.6043 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, 2917, TPSE476K035R0200 vs TBJE476K035CWSC0823
TBME476K035CBSZ0000 Kyocera AVX Components $17.7081 Tantalum Capacitor, Polarized, Tantalum, 35V, 10% +Tol, 10% -Tol, 47uF, 2917, TPSE476K035R0200 vs TBME476K035CBSZ0000
TBJE476K035LRLC0045 Kyocera AVX Components $31.5164 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 2917, CHIP TPSE476K035R0200 vs TBJE476K035LRLC0045
TBME476K035LRLB0824 Kyocera AVX Components $23.8755 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, 2917, TPSE476K035R0200 vs TBME476K035LRLB0824

TPSE476K035R0200 Related Parts

TPSE476K035R0200 Frequently Asked Questions (FAQ)

  • The recommended land pattern for the TPSE476K035R0200 can be found in the Kyocera AVX Components' recommended land pattern document, which provides detailed information on the pad layout and dimensions for optimal assembly and reliability.

  • The TPSE476K035R0200 is rated for operation up to 125°C, and its performance may degrade at higher temperatures. However, Kyocera AVX Components provides derating guidelines for temperature and other environmental factors in the datasheet.

  • The maximum current rating for the TPSE476K035R0200 is 2A, as specified in the datasheet. Exceeding this rating may cause the component to overheat or fail prematurely.

  • Yes, the TPSE476K035R0200 is compatible with lead-free soldering processes, and Kyocera AVX Components provides guidance on soldering profiles and techniques in their application notes.

  • The typical ESR of the TPSE476K035R0200 is 35mΩ, as specified in the datasheet. This value may vary depending on the operating frequency and other factors.
