Capacitors / Tantalum Capacitors / TPSC226K016R0150
Datasheets
TPSC226K016R0150 by: Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2312, CHIP

Part Details for TPSC226K016R0150 by Kyocera AVX Components

Results Overview of TPSC226K016R0150 by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TPSC226K016R0150 Information

TPSC226K016R0150 by Kyocera AVX Components is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for TPSC226K016R0150

Part # Distributor Description Stock Price Buy
DISTI # 15P3603
Newark Surface Mount Tantalum Capacitor, Tps Series, 22 F, 10%, 16 V, 2312 [6032 Metric], C Rohs Compliant: Yes |Kyocera Avx TPSC226K016R0150 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 411
  • 1 $1.0100
  • 10 $0.5020
  • 25 $0.4900
  • 50 $0.4770
  • 100 $0.4650
  • 250 $0.4110
  • 500 $0.3570
$0.3570 / $1.0100 Buy Now
DISTI # 54J8764
Newark Tantalum Capacitor, 22Uf, 16V, 0.15 Ohm, 0.1, 2312, Full Reel, Capacitance:22Μf, Voltage(Dc):16V, Capacitor Case/Package:2312 [6032 Metric], Capacitance Tolerance:± 10%, Esr:0.15Ohm, Manufacturer Size Code:C, Failure Rate:- Rohs Compliant: Yes |Kyocera Avx TPSC226K016R0150 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.3830
  • 5,000 $0.3750
  • 10,000 $0.3480
  • 20,000 $0.3250
  • 30,000 $0.3050
  • 50,000 $0.2920
$0.2920 / $0.3830 Buy Now
DISTI # TPSC226K016R0150
Avnet Americas Surface Mount Tantalum Capacitor, 22 uF, 16 V, ? 10%, -55 ?C, 125 ?C, 2312 [6032-28 Metric] - Tape and Reel (Alt: TPSC226K016R0150) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 13 Weeks, 0 Days Container: Reel 1500
  • 500 $0.3044
  • 1,000 $0.2837
  • 2,000 $0.2788
  • 3,000 $0.2739
  • 4,000 $0.2691
$0.2691 / $0.3044 Buy Now
DISTI # 581-TPSC226K016R0150
Mouser Electronics Tantalum Capacitors - Solid SMD 22UF 16V 6032-28 RoHS: Compliant 1854
  • 1 $1.0600
  • 10 $0.5230
  • 100 $0.5100
  • 500 $0.3520
$0.3520 / $1.0600 Buy Now
DISTI # V72:2272_10778811
Arrow Electronics Cap Tant Solid 22uF 16V C CASE 10% (6 X 3.2 X 2.6mm) Inward L SMD 6032-28 0.15 Ohm 125°C T/R RoHS: Compliant Min Qty: 150 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2109 Container: Cut Strips Americas - 270
  • 0 $0.6560
  • 1 $0.4678
  • 10 $0.4604
  • 25 $0.4530
  • 100 $0.4455
  • 250 $0.4381
$0.4381 / $0.6560 Buy Now
DISTI # 70475388
RS 22uF SMD Solid MnO2 Tantalum Electrolytic Capacitor, 16 V dc +/-10%, TPS Series Min Qty: 5 Package Multiple: 1 Container: Bulk 0
  • 5 $0.7500
$0.7500 RFQ
DISTI # TPSC226K016R0150
TTI Tantalum Capacitors - Solid SMD 22UF 16V 6032-28 RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 500 Container: Reel Americas - 7000
In Stock
  • 500 $0.3070
  • 2,500 $0.3010
$0.3010 / $0.3070 Buy Now
DISTI # TPSC226K016R0150
TTI Tantalum Capacitors - Solid SMD 22UF 16V 6032-28 RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 500 Container: Reel Americas - 7000
In Stock
  • 500 $0.3070
  • 2,500 $0.3010
$0.3010 / $0.3070 Buy Now
DISTI # TPSC226K016R0150
TME Capacitor: tantalum, 22uF, 16VDC, SMD, C, 2312, ±10%, -55÷125°C Min Qty: 500 0
  • 500 $0.3820
  • 1,000 $0.3090
  • 1,500 $0.2980
  • 2,500 $0.2890
  • 25,000 $0.2750
$0.2750 / $0.3820 RFQ
DISTI # TPSC226K016R0150
Avnet Abacus Surface Mount Tantalum Capacitor 22 uF 16 V 10 55 C 125 C 2312 603228 Metric (Alt: TPSC226K016R0150) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 14 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for TPSC226K016R0150

TPSC226K016R0150 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

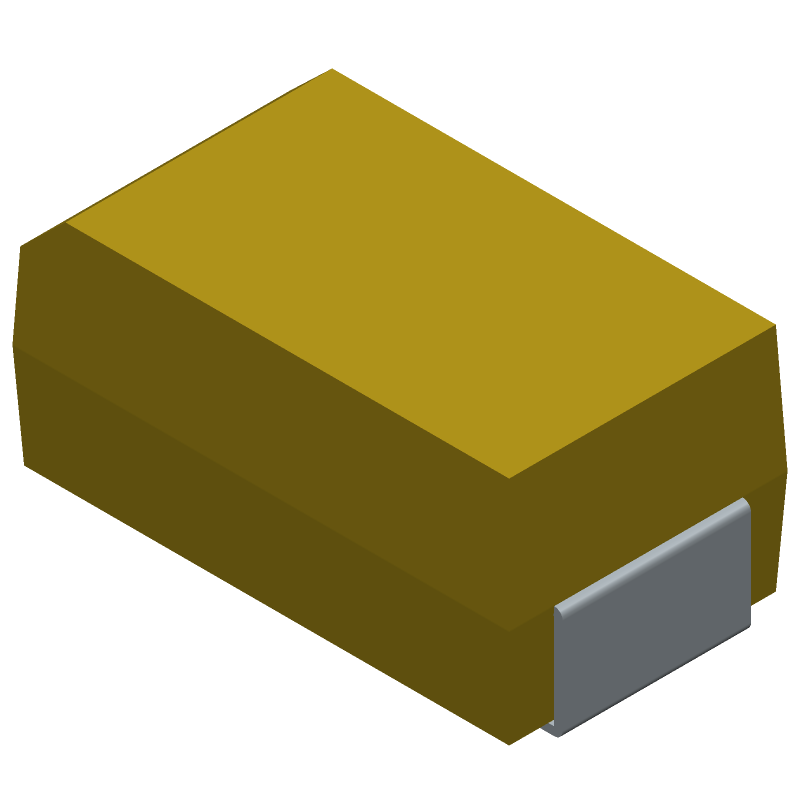

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TPSC226K016R0150 Part Data Attributes

Parametric Data
TPSC226K016R0150 Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
TPSC226K016R0150 Kyocera AVX Components Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2312, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 13 Weeks
Samacsys Manufacturer Kyocera AVX
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 22 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (DRY/SOLID)
ESR 150 mΩ
Height 2.6 mm
JESD-609 Code e3
Leakage Current 0.0035 mA
Length 6 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PLASTIC, 7 INCH
Polarity POLARIZED
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 16 V
Ripple Current 343 mA
Size Code 2312
Surface Mount YES
Tan Delta 0.06
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape J BEND
Width 3.2 mm

Alternate Parts for TPSC226K016R0150

This table gives cross-reference parts and alternative options found for TPSC226K016R0150. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPSC226K016R0150, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TBJC226K016RBLZ0000 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum, 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2312, CHIP TPSC226K016R0150 vs TBJC226K016RBLZ0000
TBJC226K016CBLZ0045 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2412, CHIP TPSC226K016R0150 vs TBJC226K016CBLZ0045
TBJC226K016RWSC0724 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum, 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2312, CHIP TPSC226K016R0150 vs TBJC226K016RWSC0724
TBJC226K016CSLC0H23 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, 2412, TPSC226K016R0150 vs TBJC226K016CSLC0H23
TBJC226K016RRSZ0845 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum, 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2312, CHIP TPSC226K016R0150 vs TBJC226K016RRSZ0845
TBJC226K016LSSC0823 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2412, CHIP TPSC226K016R0150 vs TBJC226K016LSSC0823
TBJC226K016JBSB0823 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum, 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2312, CHIP TPSC226K016R0150 vs TBJC226K016JBSB0823
TBJC226K016CSSC0000 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2412, CHIP TPSC226K016R0150 vs TBJC226K016CSSC0000
TBJC226K016CBSC0023 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2412, CHIP TPSC226K016R0150 vs TBJC226K016CBSC0023
TBJC226K016CSSZ0H23 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, 2412, TPSC226K016R0150 vs TBJC226K016CSSZ0H23

TPSC226K016R0150 Related Parts

TPSC226K016R0150 Frequently Asked Questions (FAQ)

  • The recommended land pattern for the TPSC226K016R0150 can be found in the Kyocera AVX Components' recommended land pattern document, which is available on their website. The document provides detailed information on the recommended pad layout, solder mask, and solder paste requirements.

  • The TPSC226K016R0150 is a moisture-sensitive device, and it requires special handling and storage procedures to prevent damage. It is recommended to follow the IPC/JEDEC J-STD-033 standard for handling and storage of moisture-sensitive devices.

  • The maximum operating temperature range for the TPSC226K016R0150 is -55°C to +125°C, as specified in the datasheet. However, it's recommended to derate the operating temperature range based on the specific application and environmental conditions.

  • The TPSC226K016R0150 is designed to withstand moderate vibration levels, but it's not recommended for use in high-vibration environments without proper testing and validation. It's recommended to consult with Kyocera AVX Components' application engineers to determine the suitability of the device for specific vibration requirements.

  • The recommended soldering profile for the TPSC226K016R0150 is a peak temperature of 260°C, with a dwell time of 10-30 seconds. It's recommended to follow the IPC/JEDEC J-STD-020 standard for soldering electronic components.
