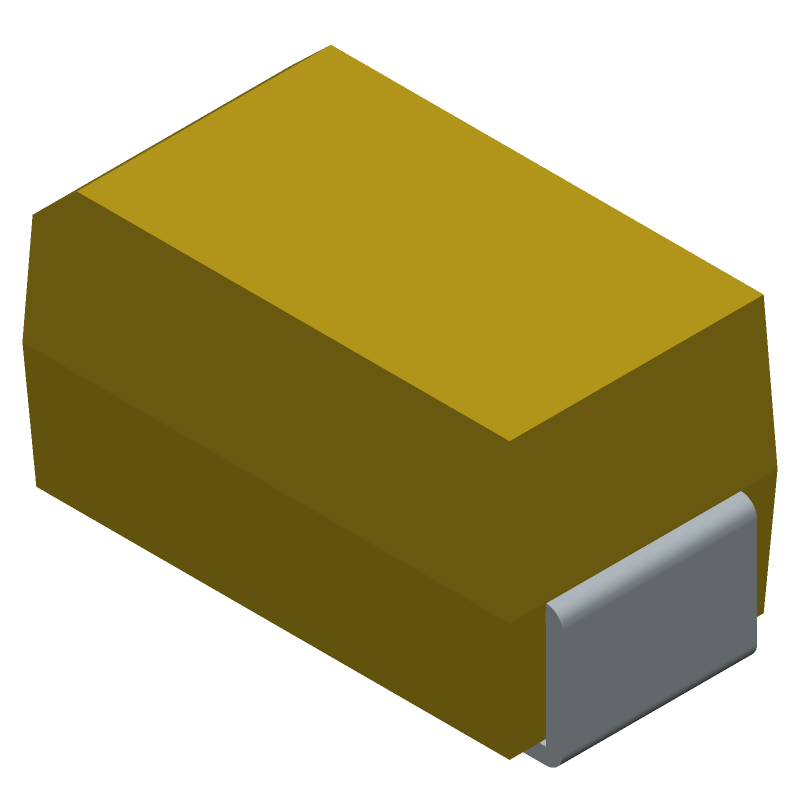

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPSA106K010T0900 by Kyocera AVX Components
Results Overview of TPSA106K010T0900 by Kyocera AVX Components
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TPSA106K010T0900 Information
TPSA106K010T0900 by Kyocera AVX Components is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for TPSA106K010T0900
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
43X9501
|
Newark | Tps Tant/Tape/Reel Rohs Compliant: Yes |Kyocera Avx TPSA106K010T0900 RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2840 / $0.3720 | Buy Now |
|
DISTI #
478-10756-1-ND
|
DigiKey | CAP TANT 10UF 10% 10V 1206 Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1010 In Stock |
|
$0.2880 / $0.9800 | Buy Now |
|
DISTI #
TPSA106K010T0900
|
Avnet Americas | - Tape and Reel (Alt: TPSA106K010T0900) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.2240 / $0.2400 | Buy Now |
|
DISTI #
581-TPSA106K010T0900
|
Mouser Electronics | Tantalum Capacitors - Solid SMD 10V 10uF 10% 1206 ES R = 900mOhm RoHS: Compliant | 346 |
|
$0.2850 / $0.8800 | Buy Now |
|
DISTI #
V72:2272_10778230
|
Arrow Electronics | Cap Tant Solid 10uF 10V A CASE 10% (3.2 X 1.6 X 1.6mm) Inward L SMD 3216-18 0.9 Ohm 125°C Automotive AEC-Q200 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2132 Container: Cut Strips | Americas - 306 |
|
$0.1050 / $0.3096 | Buy Now |
|
DISTI #
73982108
|
RS | Low ESR MnO2,10 uF,10 V Min Qty: 2000 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Container: Bulk | 0 |
|
$0.3400 / $0.4000 | RFQ |
|
DISTI #
TPSA106K010T0900
|
TTI | Tantalum Capacitors - Solid SMD 10V 10uF 10% 1206 ES R = 900mOhm RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel |
Americas - 4000 In Stock |
|
$0.3250 | Buy Now |
|
DISTI #
TPSA106K010T0900
|
TME | Capacitor: tantalum, 10uF, 10VDC, SMD, A, 1206, ±10%, -55÷125°C Min Qty: 2000 | 0 |
|
$0.1220 | RFQ |
|
DISTI #
TPSA106K010T0900
|
Avnet Asia | CAP TANT SOLID 10UF 10V A CASE 10% 3216-18 SMD. (Alt: TPSA106K010T0900) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days | 0 |
|
RFQ |
Part Details for TPSA106K010T0900
TPSA106K010T0900 CAD Models
TPSA106K010T0900 Part Data Attributes
|
|
TPSA106K010T0900
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
TPSA106K010T0900
Kyocera AVX Components
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 10% +Tol, 10% -Tol, 10uF, 1206
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.21.00.50 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | Kyocera AVX | |
| Additional Feature | ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ | |
| Capacitance | 10 µF | |
| Capacitor Type | TANTALUM CAPACITOR | |
| Dielectric Material | TANTALUM (DRY/SOLID) | |
| ESR | 900 mΩ | |
| Height | 1.6 mm | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.001 mA | |
| Length | 3.2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, PLASTIC, 7 INCH | |
| Polarity | POLARIZED | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 10 V | |
| Reference Standard | AEC-Q200 | |
| Ripple Current | 115 mA | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Tan Delta | 0.06 | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | J BEND | |
| Width | 1.6 mm |
TPSA106K010T0900 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature profile for the TPSA106K010T0900 is a peak temperature of 260°C with a dwell time of 10-30 seconds. It's essential to follow the IPC J-STD-020 standard for reflow soldering.
-
The Equivalent Series Resistance (ESR) of the TPSA106K010T0900 is 0.09 ohms, which is relatively low. This makes it suitable for high-frequency circuits, as it reduces energy losses and improves overall circuit efficiency.
-
Yes, the TPSA106K010T0900 is designed to withstand vibrations and shocks. It meets the IEC 60068-2-6 standard for vibration and IEC 60068-2-27 for shock, making it suitable for use in harsh environments.
-
The TPSA106K010T0900 has an MSL rating of 3, which means it can withstand exposure to moisture for up to 168 hours without requiring baking before reflow soldering.
-
Yes, the TPSA106K010T0900 is fully compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives, making it suitable for use in environmentally friendly designs.
