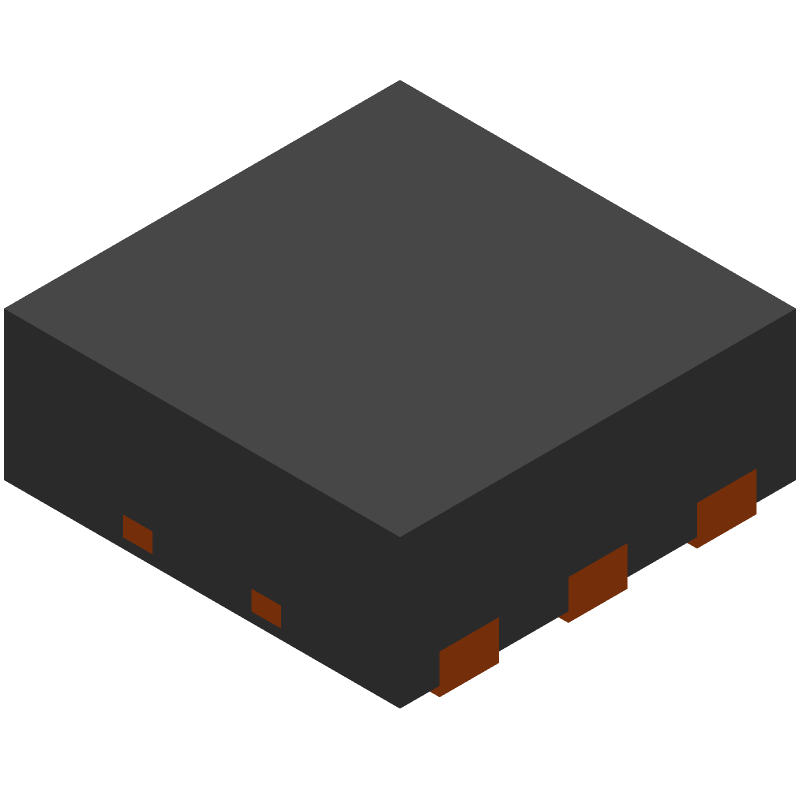

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS7A1118PDRVR by Texas Instruments
Results Overview of TPS7A1118PDRVR by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TPS7A1118PDRVR Information
TPS7A1118PDRVR by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS7A1118PDRVR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-52130-1-ND
|
DigiKey | IC REG LINEAR 1.8V 500MA 6-WSON Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2615 In Stock |
|
$0.4539 / $1.0200 | Buy Now |
|
DISTI #
595-TPS7A1118PDRVR
|
Mouser Electronics | LDO Voltage Regulators 500-mA low-VIN (0.7 5-V) ultra-low-IQ A 595-TPS7A1118PDRVT RoHS: Compliant | 2909 |
|
$0.4440 / $1.0200 | Buy Now |
|
DISTI #
V72:2272_22822447
|
Arrow Electronics | LDO Regulator Pos 1.8V 0.5A 6-Pin WSON EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Container: Cut Strips | Americas - 7 |
|
$0.4100 | Buy Now |
|
|
LCSC | 500mA Fixed 1.8V Positive electrode 3.3V WSON-6-EP(2x2) Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS | 98 |
|
$0.8208 / $1.1904 | Buy Now |
Part Details for TPS7A1118PDRVR
TPS7A1118PDRVR CAD Models
TPS7A1118PDRVR Part Data Attributes
|
|
TPS7A1118PDRVR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS7A1118PDRVR
Texas Instruments
500-mA, low-VIN (0.75-V), ultra-low-IQ, low-dropout voltage regulator with enable 6-WSON -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | WSON-6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.14 V | |
| Dropout Voltage1-Nom | 0.13 V | |
| Input Voltage-Max | 3.3 V | |
| Input Voltage-Min | 2.3 V | |
| JESD-30 Code | S-PDSO-N6 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.5 A | |
| Output Voltage1-Max | 1.827 V | |
| Output Voltage1-Min | 1.773 V | |
| Output Voltage1-Nom | 1.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 1.5% | |
| Width | 2 mm |
TPS7A1118PDRVR Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the TPS7A1118PDRVR is 5.5V. Exceeding this voltage may cause damage to the device.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF with an ESR of 0.1Ω or less, and to place the capacitor close to the output pin of the device.
-
The maximum output current that the TPS7A1118PDRVR can deliver is 1.8A. However, the output current may be limited by the thermal performance of the device and the PCB design.
-
The power dissipation of the TPS7A1118PDRVR can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
-
The EN (Enable) pin is used to turn the device on or off. When the EN pin is high, the device is enabled and the output voltage is regulated. When the EN pin is low, the device is disabled and the output voltage is turned off.
