TPS77601D by:

500-mA, 10-V, low-IQ, low-dropout voltage regulator with power good & enable 8-SOIC -40 to 125

Part Details for TPS77601D by Texas Instruments

Results Overview of TPS77601D by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

TPS77601D Information

TPS77601D by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for TPS77601D

Part # Distributor Description Stock Price Buy
DISTI # 296-2777-5-ND
DigiKey IC REG LIN POS ADJ 500MA 8-SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube 1093
In Stock
  • 1 $2.7900
  • 10 $2.0830
  • 75 $1.7461
  • 150 $1.6677
  • 300 $1.6031
  • 525 $1.5594
  • 1,050 $1.5140
  • 2,550 $1.4674
  • 5,025 $1.4388
$1.4388 / $2.7900 Buy Now
DISTI # 595-TPS77601D
Mouser Electronics LDO Voltage Regulators Fast-Tran-Res 500-mA A 595-TPS77601DR RoHS: Compliant 279
  • 1 $2.7900
  • 10 $2.0900
  • 25 $1.9000
  • 75 $1.6600
  • 300 $1.6000
  • 525 $1.5500
  • 1,050 $1.4600
  • 3,000 $1.3800
  • 6,000 $1.3300
$1.3300 / $2.7900 Buy Now
DISTI # J56:1989_00140857
Arrow Electronics LDO Regulator Pos 1.2V to 5.5V 0.5A 8-Pin SOIC Tube RoHS: Compliant Min Qty: 75 Package Multiple: 75 Lead time: 6 Weeks Date Code: 2321 Europe - 150
  • 75 $1.4290
  • 300 $1.3900
  • 525 $1.3560
  • 1,050 $1.2970
  • 3,000 $1.2570
  • 6,000 $1.2400
$1.2400 / $1.4290 Buy Now
DISTI # V99:2348_07425259
Arrow Electronics LDO Regulator Pos 1.2V to 5.5V 0.5A 8-Pin SOIC Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2207 Americas - 13
  • 1 $1.2840
$1.2840 Buy Now
DISTI # 61596107
Verical LDO Regulator Pos 1.2V to 5.5V 0.5A 8-Pin SOIC Tube RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 2207 Americas - 13
  • 5 $2.7844
  • 10 $2.0858
  • 25 $1.8962
  • 75 $1.6567
  • 300 $1.5968
  • 525 $1.5814
$1.5814 / $2.7844 Buy Now
Bristol Electronics   1125
RFQ
Bristol Electronics   150
RFQ
Quest Components ADJUSTABLE POSITIVE LDO REGULATOR, 1.2V MIN, 5.5V MAX, PMOS, PDSO8 120
  • 1 $3.0600
  • 11 $2.2440
  • 34 $2.0400
$2.0400 / $3.0600 Buy Now
Quest Components ADJUSTABLE POSITIVE LDO REGULATOR, 1.2V MIN, 5.5V MAX, PMOS, PDSO8 75
  • 1 $3.0600
  • 4 $2.0400
  • 13 $1.5300
$1.5300 / $3.0600 Buy Now
Quest Components ADJUSTABLE POSITIVE LDO REGULATOR, 1.2V MIN, 5.5V MAX, PMOS, PDSO8 22
  • 1 $3.0600
  • 4 $2.5500
  • 11 $2.2440
$2.2440 / $3.0600 Buy Now
Quest Components ADJUSTABLE POSITIVE LDO REGULATOR, 1.2V MIN, 5.5V MAX, PMOS, PDSO8 2
  • 1 $2.9400
  • 3 $2.2050
$2.2050 / $2.9400 Buy Now
ComSIT USA FAST-TRANSIENT-RESPONSE 500 MILLIAMP LOW-DROPOUT VOLTAGE REGULATOR Adjustable Positive LDO Regulator, 1.2V Min, 5.5V Max, PMOS, PDSO8 ECCN: EAR99 RoHS: Not Compliant Stock DE - 225
Stock ES - 0
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
Vyrian Regulators 8201
RFQ
Win Source Electronics IC REG LDO ADJ 0.5A 8SOIC 20197
  • 30 $2.1899
  • 65 $1.7972
  • 100 $1.7406
  • 140 $1.6851
  • 180 $1.6286
  • 240 $1.4599
$1.4599 / $2.1899 Buy Now

Part Details for TPS77601D

TPS77601D CAD Models

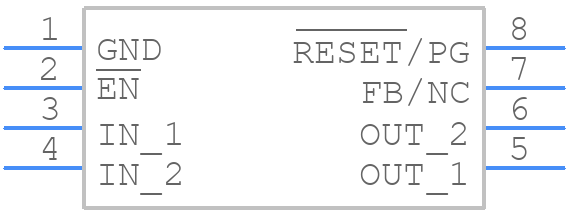

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TPS77601D Part Data Attributes

Parametric Data
TPS77601D Texas Instruments
Buy Now Datasheet
Compare Parts:
TPS77601D Texas Instruments 500-mA, 10-V, low-IQ, low-dropout voltage regulator with power good & enable 8-SOIC -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description SOIC-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Adjustability ADJUSTABLE
Dropout Voltage1-Nom 0.169 V
Input Voltage-Max 10 V
Input Voltage-Min 2.7 V
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 4.9 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current1-Max 0.5 A
Output Voltage1-Max 5.5 V
Output Voltage1-Min 1.2 V
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TUBE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 1.75 mm
Surface Mount YES
Technology PMOS
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max 2%
Width 3.9 mm
