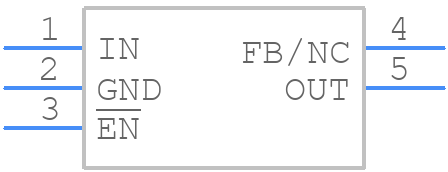

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS76950QDBVRQ1 by Texas Instruments
Results Overview of TPS76950QDBVRQ1 by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TPS76950QDBVRQ1 Information
TPS76950QDBVRQ1 by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS76950QDBVRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-15295-1-ND
|
DigiKey | IC REG LINEAR 5V 100MA SOT23-5 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
8507 In Stock |
|
$0.4700 / $1.1000 | Buy Now |
|
DISTI #
595-TPS76950QDBVRQ1
|
Mouser Electronics | LDO Voltage Regulators Ultra Low-Power 100- mA LDO A 595-PS76950QDBVRG4Q1 RoHS: Compliant | 2790 |
|
$0.4700 / $1.1000 | Buy Now |
|
|
LCSC | 100mA 60dB(1kHz) Fixed 5V Positive electrode 10V SOT-23-5 Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS | 17 |
|
$1.6195 / $1.8127 | Buy Now |
|
|
Vyrian | Regulators | 7849 |
|
RFQ | |
|
|
Win Source Electronics | IC REG LINEAR 5V 100MA SOT23-5 / Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-5 | 8250 |
|
$0.5000 / $0.6458 | Buy Now |
Part Details for TPS76950QDBVRQ1
TPS76950QDBVRQ1 CAD Models
TPS76950QDBVRQ1 Part Data Attributes
|
|
TPS76950QDBVRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS76950QDBVRQ1
Texas Instruments
Automotive, 100mA 10V low-IQ low-dropout voltage regulator with enable 5-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.17 V | |
| Dropout Voltage1-Nom | 0.071 V | |
| Input Voltage Absolute-Max | 13.5 V | |
| Input Voltage-Max | 10 V | |
| Input Voltage-Min | 6 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Line Regulation-Max | 0.0064% | |
| Load Regulation-Max | 0.012% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.1 A | |
| Output Voltage1-Max | 5.15 V | |
| Output Voltage1-Min | 4.85 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.45 mm | |
| Surface Mount | YES | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 3% | |
| Width | 1.6 mm |
TPS76950QDBVRQ1 Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the TPS76950QDBVRQ1 is 13.2V, as specified in the datasheet. Exceeding this voltage may damage the device.
-
To ensure stability of the output voltage, it is recommended to use a minimum output capacitance of 2.2uF and a maximum equivalent series resistance (ESR) of 1 ohm, as specified in the datasheet.
-
The maximum output current that the TPS76950QDBVRQ1 can deliver is 150mA, as specified in the datasheet. Exceeding this current may cause the device to overheat or malfunction.
-
The TPS76950QDBVRQ1 has a fixed output voltage of 5V, but it can be adjusted using external resistors. The output voltage can be calculated using the formula: Vout = 1.25V x (1 + R1/R2), where R1 and R2 are the external resistors.
-
The power dissipation of the TPS76950QDBVRQ1 depends on the input voltage, output voltage, and output current. The maximum power dissipation is approximately 1.5W, as specified in the datasheet.
