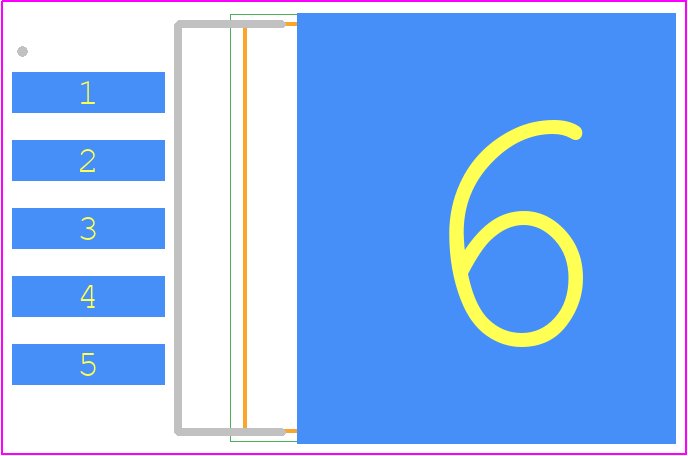

Footprint
-

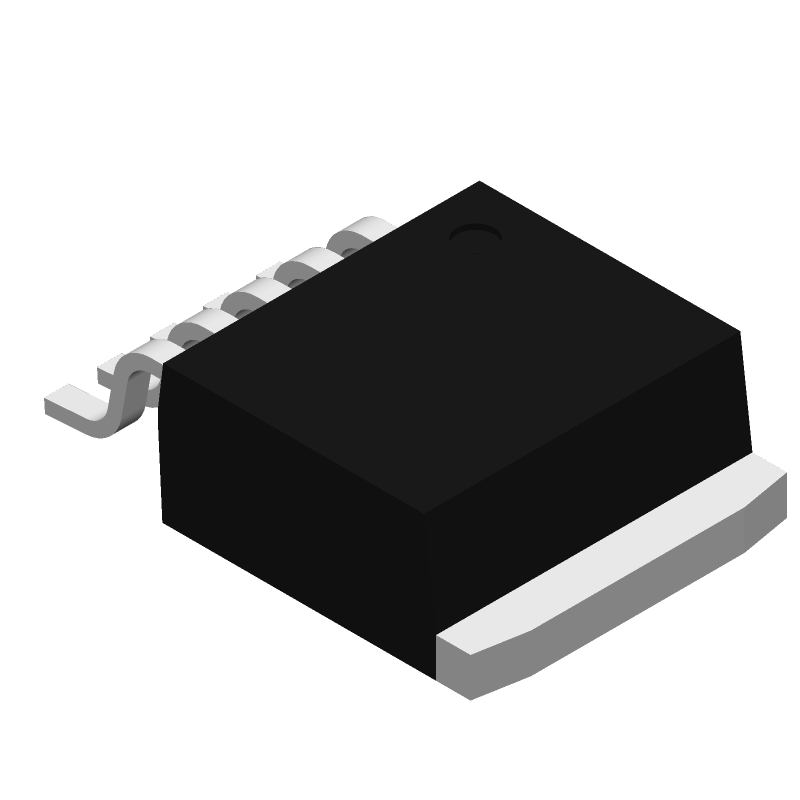

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS75801KTTR by Texas Instruments
Results Overview of TPS75801KTTR by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TPS75801KTTR Information
TPS75801KTTR by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS75801KTTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-31994-1-ND
|
DigiKey | IC REG LINEAR POS ADJ 3A TO263 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1194 In Stock |
|
$4.2115 / $7.2400 | Buy Now |
|
DISTI #
595-TPS75801KTTR
|
Mouser Electronics | LDO Voltage Regulators 3-A Fast-Trans Resp Adjustable A 595-TPS75801KTTT RoHS: Compliant | 624 |
|
$4.0000 / $7.2400 | Buy Now |
|
|
Rochester Electronics | TPS758 Fast-Transient Response, 3A, Low-Dropout Voltage Regulators RoHS: Compliant Status: Active Min Qty: 1 | 1 |
|
$3.2500 / $4.0600 | Buy Now |
|
|
Vyrian | Regulators | 440 |
|
RFQ | |
|
|
Win Source Electronics | IC REG LDO ADJ 3A DDPAK | 2950 |
|
$3.5706 / $5.3557 | Buy Now |
Part Details for TPS75801KTTR
TPS75801KTTR CAD Models
TPS75801KTTR Part Data Attributes
|
|
TPS75801KTTR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS75801KTTR
Texas Instruments
3-A, ultra-low-dropout voltage regulator with low-noise & enable 5-DDPAK/TO-263 -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | D2PAK | |
| Package Description | D2PAK-5 | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | ADJUSTABLE | |
| Dropout Voltage1-Max | 0.3 V | |
| Dropout Voltage1-Nom | 0.15 V | |
| Input Voltage Absolute-Max | 6 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.8 V | |
| JESD-30 Code | R-PSSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 10.16 mm | |
| Line Regulation-Max (%/V) | 0.1 | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 3 A | |
| Output Voltage1-Max | 5 V | |
| Output Voltage1-Min | 1.22 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-263 | |
| Package Equivalence Code | SMSIP5H,.6,67TB | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 4.83 mm | |
| Surface Mount | YES | |
| Technology | PMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.7 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 3% | |
| Width | 8.925 mm |
Alternate Parts for TPS75801KTTR
This table gives cross-reference parts and alternative options found for TPS75801KTTR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS75801KTTR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS75801KTTTG3 | Texas Instruments | Check for Price | Fast-Transient Response, 3A, Low-Dropout Voltage Regulators 5-DDPAK/TO-263 -40 to 85 | TPS75801KTTR vs TPS75801KTTTG3 |
TPS75801KTTR Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the TPS75801KTTR is 6.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum equivalent series resistance (ESR) of 1 ohm, as specified in the datasheet.
-
The maximum output current that the TPS75801KTTR can deliver is 1A, as specified in the datasheet. Exceeding this current may cause the device to overheat or malfunction.
-
To handle thermal considerations, ensure that the device is mounted on a PCB with a sufficient thermal pad, and that the ambient temperature is within the specified operating range of -40°C to 125°C. Additionally, ensure that the device is not exposed to excessive heat sources or thermal stress.
-
The EN (enable) pin is used to enable or disable the output voltage of the TPS75801KTTR. When the EN pin is high, the output voltage is enabled, and when it is low, the output voltage is disabled.
