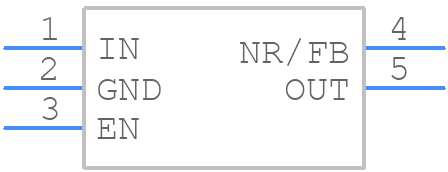

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS73618DBVT by Texas Instruments
Results Overview of TPS73618DBVT by Texas Instruments
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TPS73618DBVT Information
TPS73618DBVT by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS73618DBVT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH6123
|
Newark | Ldo, Fixed, 1.8V, 0.5A, Sot-23-5, Output Type:Fixed, Input Voltage Min:1.7V, Input Voltage Max:5.5V, Fixed Output Voltage Nom.:1.8V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Output Current:500Ma, Dropout Rohs Compliant: Yes |Texas Instruments TPS73618DBVT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 139 |
|
$2.7600 / $3.3200 | Buy Now |
|
DISTI #
296-15816-1-ND
|
DigiKey | IC REG LINEAR 1.8V 400MA SOT23-5 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1752 In Stock |
|
$1.2873 / $2.5400 | Buy Now |
|
DISTI #
595-TPS73618DBVT
|
Mouser Electronics | LDO Voltage Regulators Cap-Free NMOS 400mA A 595-TPS73618DBVR RoHS: Compliant | 1637 |
|
$1.1900 / $2.5400 | Buy Now |
|
DISTI #
V72:2272_07424083
|
Arrow Electronics | LDO Regulator Pos 1.8V 0.4A 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2311 Container: Cut Strips | Americas - 17 |
|
$1.2300 / $1.7770 | Buy Now |
|
DISTI #
67565346
|
Verical | LDO Regulator Pos 1.8V 0.4A 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 2311 | Americas - 17 |
|
$1.2300 / $1.7770 | Buy Now |
|
|
Bristol Electronics | 72 |
|
RFQ | ||
|
|
Rochester Electronics | TPS736 Single Output LDO, 400mA, Adj.(1.2 to 5.5V), Cap free, Low Noise, Reverse Current Protection RoHS: Compliant Status: Active Min Qty: 1 | 7 |
|
$1.3000 / $1.6300 | Buy Now |
|
DISTI #
TPS73618DBVT
|
TME | IC: voltage regulator, LDO,fixed, 1.8V, 0.4A, SOT23-5, SMD, ±1% Min Qty: 1 | 0 |
|
$1.6700 / $2.7000 | RFQ |
|
DISTI #
TPS73618DBVT
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 185 |
|
$1.0500 / $1.7000 | Buy Now |
|
|
Vyrian | Regulators | 5225 |
|
RFQ |
Part Details for TPS73618DBVT
TPS73618DBVT CAD Models
TPS73618DBVT Part Data Attributes
|
|
TPS73618DBVT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS73618DBVT
Texas Instruments
400mA high-accuracy ultra-low-dropout voltage regulator with reverse current protection and enable 5-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.2 V | |
| Dropout Voltage1-Nom | 0.075 V | |
| Input Voltage Absolute-Max | 6 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Line Regulation-Max | 0.000396% | |
| Load Regulation-Max | 0.014364% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.4 A | |
| Output Voltage1-Max | 1.818 V | |
| Output Voltage1-Min | 1.782 V | |
| Output Voltage1-Nom | 1.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.45 mm | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 1% | |
| Width | 1.6 mm |
Alternate Parts for TPS73618DBVT
This table gives cross-reference parts and alternative options found for TPS73618DBVT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS73618DBVT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS73618DBVR | Texas Instruments | $1.2997 | 400mA high-accuracy ultra-low-dropout voltage regulator with reverse current protection and enable 5-SOT-23 -40 to 125 | TPS73618DBVT vs TPS73618DBVR |
| TPS73618MDBVREP | Texas Instruments | $3.2683 | Enhanced product, cap-free NMOS, 400-mA low-dropout regulator with reverse current protection 5-SOT-23 -55 to 125 | TPS73618DBVT vs TPS73618MDBVREP |
| TPS73618DBVRG4 | Texas Instruments | Check for Price | 400mA high-accuracy ultra-low-dropout voltage regulator with reverse current protection and enable 5-SOT-23 -40 to 125 | TPS73618DBVT vs TPS73618DBVRG4 |
| TPS73618DBVTG4 | Texas Instruments | Check for Price | 400mA high-accuracy ultra-low-dropout voltage regulator with reverse current protection and enable 5-SOT-23 -40 to 125 | TPS73618DBVT vs TPS73618DBVTG4 |
| V62/06626-03XE | Texas Instruments | Check for Price | Enhanced product, cap-free NMOS, 400-mA low-dropout regulator with reverse current protection 5-SOT-23 -55 to 125 | TPS73618DBVT vs V62/06626-03XE |
TPS73618DBVT Frequently Asked Questions (FAQ)
-
The maximum input voltage is 13.2V, but it's recommended to keep it below 12V for optimal performance and to prevent overheating.
-
To ensure stability, use a minimum output capacitance of 10uF, and ensure that the capacitor's ESR (Equivalent Series Resistance) is less than 1 ohm. Also, place the capacitor as close to the output pin as possible.
-
The minimum input capacitance required is 1uF, but it's recommended to use a 2.2uF to 4.7uF capacitor to ensure stability and reduce noise.
-
The TPS73618DBVT is rated for operation up to 125°C, but it's recommended to derate the output current at high temperatures to prevent overheating. Consult the datasheet for thermal derating information.
-
Power dissipation (PD) can be calculated using the formula: PD = (VIN - VOUT) x IOUT. Ensure that the calculated PD is within the maximum allowed power dissipation of 1.4W.
