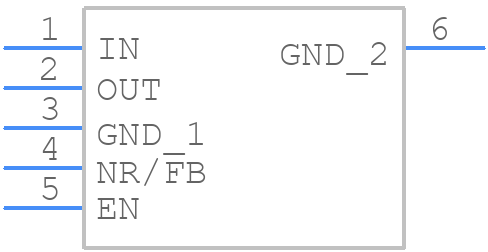

Part Symbol
-

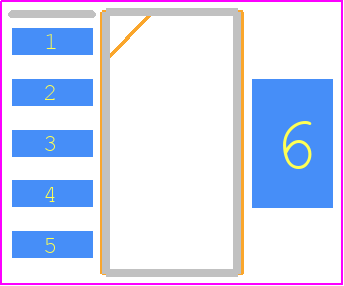

Footprint
-

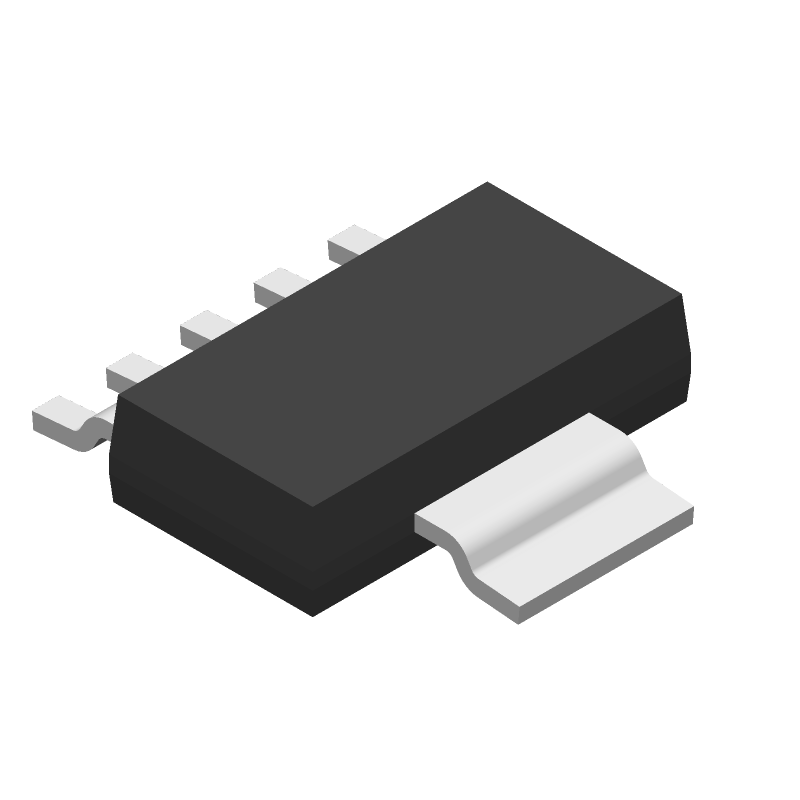

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
400mA high-accuracy ultra-low-dropout voltage regulator with reverse current protection and enable 6-SOT-223 -40 to 125
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TPS73601DCQR by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Part # | Manufacturer | Description | Datasheet |
---|---|---|---|
TPS73601DCQR | Texas Instruments | Single Output LDO, 400mA, Adj.(1.2 to 5.5V), Cap free, Low Noise, Reverse Current Protection 6-SOT-223 -40 to 125 |
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
296-16909-1-ND
|
DigiKey | IC REG LIN POS ADJ 400MA SOT223 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
11824 In Stock |
|
$1.0378 / $2.0900 | Buy Now |
DISTI #
595-TPS73601DCQR
|
Mouser Electronics | LDO Voltage Regulators Cap-Free NMOS 400mA A 595-TPS73601DCQ RoHS: Compliant | 2677 |
|
$0.9920 / $2.0900 | Buy Now |
|
Bristol Electronics | 4005 |
|
RFQ | ||
|
Quest Components | 1.2 V-5.5 V ADJUSTABLE POSITIVE LDO REGULATOR, 0.2 V DROPOUT, PDSO6 | 5880 |
|
$0.5852 / $2.1280 | Buy Now |
|
Quest Components | 1.2 V-5.5 V ADJUSTABLE POSITIVE LDO REGULATOR, 0.2 V DROPOUT, PDSO6 | 1207 |
|
$0.6670 / $1.4500 | Buy Now |
|
Quest Components | 1.2 V-5.5 V ADJUSTABLE POSITIVE LDO REGULATOR, 0.2 V DROPOUT, PDSO6 | 80 |
|
$3.0600 / $4.5900 | Buy Now |
|
ComSIT USA | CAP-FREE, NMOS, 400 MILLIAMP LOW-DROPOUT REGULATOR WITH REVERSE CURRENT PROTECTION Adjustable Positive LDO Regulator, 1.2V Min, 5.5V Max, 0.2V Dropout, BICMOS, PDSO6 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 1706 |
|
$4.2500 / $6.5400 | Buy Now |
|
LCSC | 400mA Adjustable 1.2V5.5V Positive electrode 5.5V SOT-223-6 Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS | 2006 |
|
$0.5986 / $1.1277 | Buy Now |
|
Vyrian | Regulators | 5885 |
|
RFQ |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
TPS73601DCQR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS73601DCQR
Texas Instruments
400mA high-accuracy ultra-low-dropout voltage regulator with reverse current protection and enable 6-SOT-223 -40 to 125
|
Pbfree Code | Yes | |
Rohs Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
Part Package Code | SOT-223 | |
Pin Count | 6 | |
Reach Compliance Code | compliant | |
ECCN Code | EAR99 | |
HTS Code | 8542.39.00.01 | |
Samacsys Manufacturer | Texas Instruments | |
Adjustability | ADJUSTABLE | |
Dropout Voltage1-Max | 0.2 V | |
Dropout Voltage1-Nom | 0.075 V | |
Input Voltage-Max | 5.5 V | |
Input Voltage-Min | 1.7 V | |
JESD-30 Code | R-PDSO-G6 | |
JESD-609 Code | e3 | |
Length | 6.5 mm | |
Line Regulation-Max (%/V) | 0.01 | |
Moisture Sensitivity Level | 2 | |
Number of Functions | 1 | |
Number of Outputs | 1 | |
Number of Terminals | 6 | |
Operating Temperature TJ-Max | 125 °C | |
Operating Temperature TJ-Min | -40 °C | |
Output Current1-Max | 0.4 A | |
Output Voltage1-Max | 5.4 V | |
Output Voltage1-Min | 1.2 V | |
Package Body Material | PLASTIC/EPOXY | |
Package Code | SOP | |
Package Equivalence Code | SOT-223-5 | |
Package Shape | RECTANGULAR | |
Package Style | SMALL OUTLINE | |
Packing Method | TR, 13 INCH | |
Peak Reflow Temperature (Cel) | 260 | |
Qualification Status | Not Qualified | |
Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR | |
Seated Height-Max | 1.8 mm | |
Surface Mount | YES | |
Technology | BICMOS | |
Terminal Finish | Matte Tin (Sn) | |
Terminal Form | GULL WING | |
Terminal Pitch | 1.27 mm | |
Terminal Position | DUAL | |
Time@Peak Reflow Temperature-Max (s) | 30 | |
Voltage Tolerance-Max | 1% | |
Width | 3.5 mm |
This table gives cross-reference parts and alternative options found for TPS73601DCQR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS73601DCQR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number | Manufacturer | Composite Price | Description | Compare |
---|---|---|---|---|
TPS73601DBVR | Texas Instruments | $1.0618 | 400mA high-accuracy ultra-low-dropout voltage regulator with reverse current protection and enable 5-SOT-23 -40 to 125 | TPS73601DCQR vs TPS73601DBVR |
TPS73601DCQ | Texas Instruments | $1.5568 | 400mA high-accuracy ultra-low-dropout voltage regulator with reverse current protection and enable 6-SOT-223 -40 to 125 | TPS73601DCQR vs TPS73601DCQ |
TPS73601DBVT | Texas Instruments | $2.3027 | 400mA high-accuracy ultra-low-dropout voltage regulator with reverse current protection and enable 5-SOT-23 -40 to 125 | TPS73601DCQR vs TPS73601DBVT |
TPS73601DBVRG4 | Texas Instruments | Check for Price | 400mA high-accuracy ultra-low-dropout voltage regulator with reverse current protection and enable 5-SOT-23 -40 to 125 | TPS73601DCQR vs TPS73601DBVRG4 |
TPS73601DBVTG4 | Texas Instruments | Check for Price | 400mA high-accuracy ultra-low-dropout voltage regulator with reverse current protection and enable 5-SOT-23 -40 to 125 | TPS73601DCQR vs TPS73601DBVTG4 |
The maximum input voltage for the TPS73601DCQR is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent overheating.
To ensure stability, it's essential to use a minimum output capacitance of 10uF with an ESR (Equivalent Series Resistance) of 0.1Ω or less, and to place the capacitor close to the output pin of the regulator.
The dropout voltage of the TPS73601DCQR is typically around 300mV at an output current of 1A, but it can vary depending on the input voltage and output current.
The TPS73601DCQR is rated for operation up to 125°C, but it's essential to ensure proper thermal management and heat sinking to prevent overheating, especially in high-temperature environments.
To calculate the power dissipation, use the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
