TPS73534DRBR by: Texas Instruments

500-mA, low-IQ, low-dropout voltage regulator with enable 8-SON -40 to 125

Part Details for TPS73534DRBR by Texas Instruments

Results Overview of TPS73534DRBR by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TPS73534DRBR Information

TPS73534DRBR by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for TPS73534DRBR

Part # Distributor Description Stock Price Buy
DISTI # 2156-TPS73534DRBR-ND
DigiKey IC REG LINEAR 3.4V 500MA 8-SON Min Qty: 1 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT 14042
In Stock
  • 283 $1.0600
$1.0600 Buy Now
DISTI # 296-27853-1-ND
DigiKey IC REG LINEAR 3.4V 500MA 8-SON Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) Temporarily Out of Stock
  • 1 $1.6700
  • 3,000 $0.8312
  • 6,000 $0.8136
  • 9,000 $0.8048
$0.8048 / $1.6700 Buy Now
DISTI # 595-TPS73534DRBR
Mouser Electronics LDO Voltage Regulators Sgl Out LDO500mA Fix edLo Quies Crnt A 595-TPS73534DRBT RoHS: Compliant 31
  • 1 $2.0100
  • 10 $1.7100
  • 100 $1.4600
  • 250 $1.4000
  • 500 $1.2200
  • 1,000 $1.0500
  • 3,000 $0.8210
  • 6,000 $0.7960
$0.7960 / $2.0100 Buy Now
DISTI # 86049079
Verical LDO Regulator Pos 3.4V 0.5A 8-Pin VSON EP T/R RoHS: Compliant Min Qty: 295 Package Multiple: 1 Date Code: 1201 Americas - 11242
  • 295 $1.2750
  • 500 $1.1431
  • 1,000 $1.0543
  • 10,000 $0.9399
  • 100,000 $0.7875
$0.7875 / $1.2750 Buy Now
DISTI # 86049244
Verical LDO Regulator Pos 3.4V 0.5A 8-Pin VSON EP T/R RoHS: Compliant Min Qty: 295 Package Multiple: 1 Date Code: 1001 Americas - 2800
  • 295 $1.2750
  • 500 $1.1431
  • 1,000 $1.0543
  • 10,000 $0.9399
  • 100,000 $0.7875
$0.7875 / $1.2750 Buy Now
Rochester Electronics TPS735 500mA, Adjustable, Low Quiescent Current, Low-Noise, High-PSRR, Single-Output LDO Regulator RoHS: Compliant Status: Active Min Qty: 1 14042
  • 100 $1.0200
  • 500 $0.9145
  • 1,000 $0.8434
  • 10,000 $0.7519
  • 100,000 $0.6300
$0.6300 / $1.0200 Buy Now
DISTI # TPS73534DRBR
TME IC: voltage regulator, LDO,fixed, 3.4V, 0.5A, SON8, SMD, reel,tape Min Qty: 1 0
  • 1 $1.3900
  • 5 $1.2500
  • 25 $1.1000
  • 100 $0.9900
  • 500 $0.9200
$0.9200 / $1.3900 RFQ
LCSC 500mA Fixed 3.4V Positive electrode 6.5V VSON-8-EP(3x3) Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS 36
  • 1 $1.8795
  • 10 $1.5932
  • 30 $1.4135
  • 100 $1.1652
  • 500 $1.0814
  • 1,000 $1.0464
$1.0464 / $1.8795 Buy Now

Part Details for TPS73534DRBR

TPS73534DRBR CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

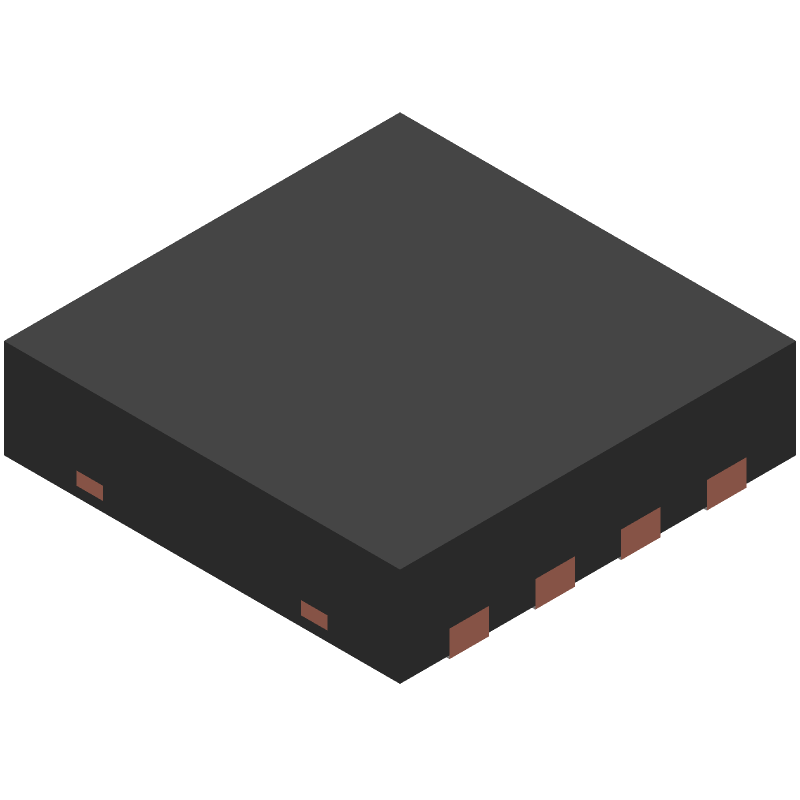

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TPS73534DRBR Part Data Attributes

Parametric Data
TPS73534DRBR Texas Instruments
Buy Now Datasheet
Compare Parts:
TPS73534DRBR Texas Instruments 500-mA, low-IQ, low-dropout voltage regulator with enable 8-SON -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SON
Package Description 3 X 3 MM, GREEN, PLASTIC, SON-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Adjustability FIXED
Dropout Voltage1-Max 0.5 V
Dropout Voltage1-Nom 0.28 V
Input Voltage Absolute-Max 7 V
Input Voltage-Max 6.5 V
Input Voltage-Min 3.9 V
JESD-30 Code S-PDSO-N8
JESD-609 Code e4
Length 3 mm
Moisture Sensitivity Level 2
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current1-Max 0.5 A
Output Voltage1-Max 3.502 V
Output Voltage1-Min 3.298 V
Output Voltage1-Nom 3.4 V
Package Body Material PLASTIC/EPOXY
Package Code HVSON
Package Equivalence Code SOLCC8,.12,25
Package Shape SQUARE
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 1 mm
Surface Mount YES
Technology BICMOS
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form NO LEAD
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max 3%
Width 3 mm

Alternate Parts for TPS73534DRBR

This table gives cross-reference parts and alternative options found for TPS73534DRBR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS73534DRBR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TPS73534DRBT Texas Instruments Check for Price 500-mA, low-IQ, low-dropout voltage regulator with enable 8-SON -40 to 125 TPS73534DRBR vs TPS73534DRBT
