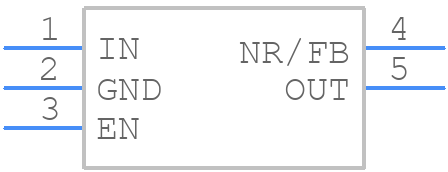

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS71733DCKRG4 by Texas Instruments
Results Overview of TPS71733DCKRG4 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TPS71733DCKRG4 Information
TPS71733DCKRG4 by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS71733DCKRG4 | Texas Instruments | 150mA, High PSRR, Low Quiescent Current, Low Noise LDO 5-SC70 -40 to 125 |
Price & Stock for TPS71733DCKRG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Regulators | 2270 |
|
RFQ | |
|
|
Win Source Electronics | Low Noise, High-Bandwidth PSRR Low-Dropout 150mA Linear Regulator | IC REG LINEAR 3.3V 150MA SC70-5 | 7000 |
|
$0.5311 / $0.7965 | Buy Now |
Part Details for TPS71733DCKRG4
TPS71733DCKRG4 CAD Models
TPS71733DCKRG4 Part Data Attributes
|
|
TPS71733DCKRG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS71733DCKRG4
Texas Instruments
150-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable 5-SC70 -40 to 125
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.3 V | |
| Dropout Voltage1-Nom | 0.17 V | |
| Input Voltage Absolute-Max | 7 V | |
| Input Voltage-Max | 6.5 V | |
| Input Voltage-Min | 3.6 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 0.15 A | |
| Output Voltage1-Max | 3.399 V | |
| Output Voltage1-Min | 3.201 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 3% | |
| Width | 1.25 mm |
Alternate Parts for TPS71733DCKRG4
This table gives cross-reference parts and alternative options found for TPS71733DCKRG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS71733DCKRG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS71733DCKR | Texas Instruments | $0.6258 | 150-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable 5-SC70 -40 to 125 | TPS71733DCKRG4 vs TPS71733DCKR |
| TPS71733DCKT | Texas Instruments | $0.7709 | 150-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable 5-SC70 -40 to 125 | TPS71733DCKRG4 vs TPS71733DCKT |
| TPS71733DCKTG4 | Texas Instruments | Check for Price | 150-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable 5-SC70 -40 to 125 | TPS71733DCKRG4 vs TPS71733DCKTG4 |
| MAX8891EXK33+T | Analog Devices Inc | Check for Price | High PSRR, Low-Dropout, 150mA Linear Regulators, 5-SC70-N/A, 5 Pins, -40 to 85C | TPS71733DCKRG4 vs MAX8891EXK33+T |
| MAX8891EXK33+T | Maxim Integrated Products | Check for Price | Fixed Positive LDO Regulator, 3.3V, BICMOS, PDSO5, ROHS COMPLIANT, SC-70, 5 PIN | TPS71733DCKRG4 vs MAX8891EXK33+T |
| MAX8511EXK33+T | Analog Devices Inc | Check for Price | Ultra-Low-Noise, High PSRR, Low-Dropout, 120mA Linear Regulators, 5-SC70-N/A, 5 Pins, -40 to 85C | TPS71733DCKRG4 vs MAX8511EXK33+T |
| MAX8511EXK33-T | Maxim Integrated Products | Check for Price | Fixed Positive LDO Regulator, 3.3V, 0.17V Dropout, BICMOS, PDSO5, EIAJ, SC-70, 5 PIN | TPS71733DCKRG4 vs MAX8511EXK33-T |
TPS71733DCKRG4 Frequently Asked Questions (FAQ)
-
The maximum input voltage is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
-
To ensure stability, follow the recommended layout and component selection guidelines in the datasheet, and use a sufficient output capacitor with a low ESR value.
-
The device is rated for operation up to 125°C, but thermal considerations should be made to ensure the junction temperature does not exceed 150°C. Use thermal design and layout techniques to minimize temperature rise.
-
A minimum input capacitance of 1uF is recommended, but the optimal value depends on the input voltage source impedance and the desired level of input ripple rejection.
-
The output voltage tolerance is specified in the datasheet as ±2%. To calculate the output voltage accuracy, consider the tolerance of the internal voltage reference, the output voltage divider, and any external resistors used to set the output voltage.
