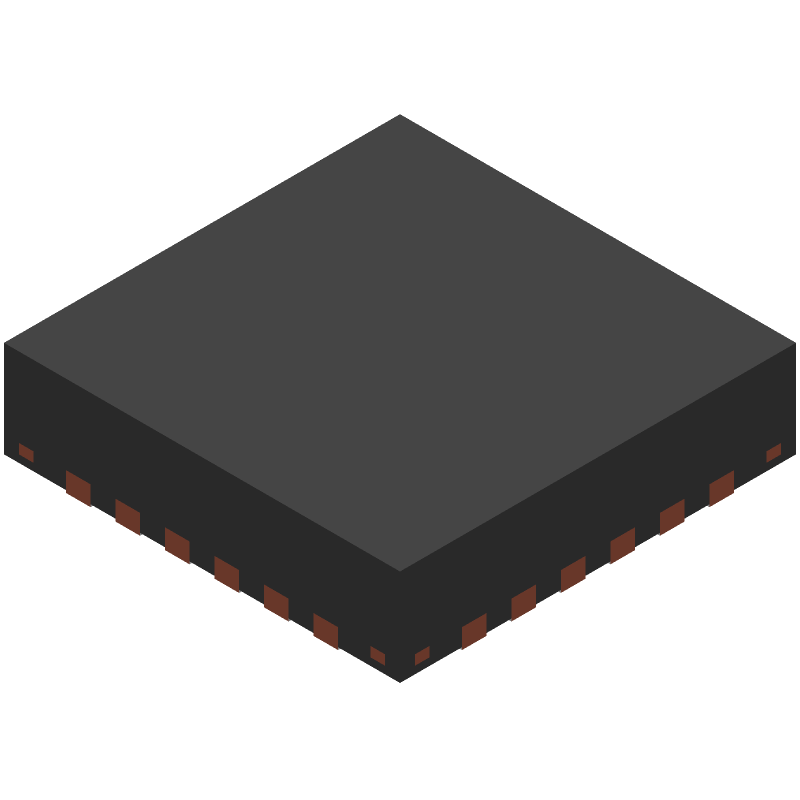

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS65131TRGERQ1 by Texas Instruments
Results Overview of TPS65131TRGERQ1 by Texas Instruments
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
TPS65131TRGERQ1 Information
TPS65131TRGERQ1 by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS65131TRGERQ1 | Texas Instruments | Automotive Split-Rail Converter with Dual, Positive and Negative Outputs (750mA typ) 24-VQFN -40 to 105 |
Price & Stock for TPS65131TRGERQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-40865-1-ND
|
DigiKey | IC REG BUCK BOOST ADJ DL 24VQFN Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
7287 In Stock |
|
$1.6610 / $3.1900 | Buy Now |
|
DISTI #
595-TPS65131TRGERQ1
|
Mouser Electronics | Switching Voltage Regulators Automotive Split-Rai l Converter with Dua RoHS: Compliant | 684 |
|
$1.6600 / $3.1900 | Buy Now |
|
DISTI #
V72:2272_07420785
|
Arrow Electronics | Conv DC-DC 2.7V to 5.5V Inv/Step Up Dual-Out -15V to -2V/3.2V to 15V 0.2A/0.2A Automotive AEC-Q100 24-Pin VQFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2247 Container: Cut Strips | Americas - 2597 |
|
$1.5930 / $1.7550 | Buy Now |
|
DISTI #
65740676
|
Verical | Conv DC-DC 2.7V to 5.5V Inv/Step Up Dual-Out -15V to -2V/3.2V to 15V 0.2A/0.2A Automotive AEC-Q100 24-Pin VQFN EP T/R RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 2247 | Americas - 2597 |
|
$1.5930 / $1.7550 | Buy Now |
|
|
Quest Components | SWITCHING REGULATOR, 2.25A, PQCC24 | 1614 |
|
$10.9695 / $16.4543 | Buy Now |
|
|
LCSC | Adjustable 2.7V5.5V VQFN-24-EP(4x4) DC-DC Converters ROHS | 468 |
|
$0.8429 / $1.3963 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 5720 |
|
RFQ | |
|
|
Win Source Electronics | IC REG BCK BST INV ADJ DL 24VQFN | 144000 |
|
$1.3063 / $1.9589 | Buy Now |
Part Details for TPS65131TRGERQ1
TPS65131TRGERQ1 CAD Models
TPS65131TRGERQ1 Part Data Attributes
|
|
TPS65131TRGERQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS65131TRGERQ1
Texas Instruments
Automotive split-rail converter with dual, positive and negative outputs (750mA typ) 24-VQFN -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | VQFN-24 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | VOUT2 IS (-15 TO -2)V AVAILABLE WITH INVERTING CONVERTER | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | VOLTAGE-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.7 V | |
| Input Voltage-Nom | 3.6 V | |
| JESD-30 Code | S-PQCC-N24 | |
| JESD-609 Code | e4 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 3 | |
| Negative Input Voltage-Max | -2 V | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.75 A | |
| Output Voltage-Max | 15 V | |
| Output Voltage-Min | 3.2 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC24,.16SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 1500 kHz | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 mm |
TPS65131TRGERQ1 Frequently Asked Questions (FAQ)
-
A good PCB layout for the TPS65131TRGERQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g., 100nF) in parallel with the output capacitor.
-
The TPS65131TRGERQ1 can handle a maximum input voltage of 18V. However, it's recommended to operate the device within the recommended input voltage range of 4.5V to 15V for optimal performance and reliability.
-
The output voltage of the TPS65131TRGERQ1 can be calculated using the following formula: Vout = (R1 / R2) * (Vref), where R1 and R2 are the resistors connected to the FB pin, and Vref is the internal reference voltage (1.2V).
-
The EN (Enable) pin on the TPS65131TRGERQ1 is used to enable or disable the device. When the EN pin is pulled high (above 1.4V), the device is enabled, and when it's pulled low (below 0.4V), the device is disabled. This pin can be used to implement power sequencing or to shut down the device when not in use.
