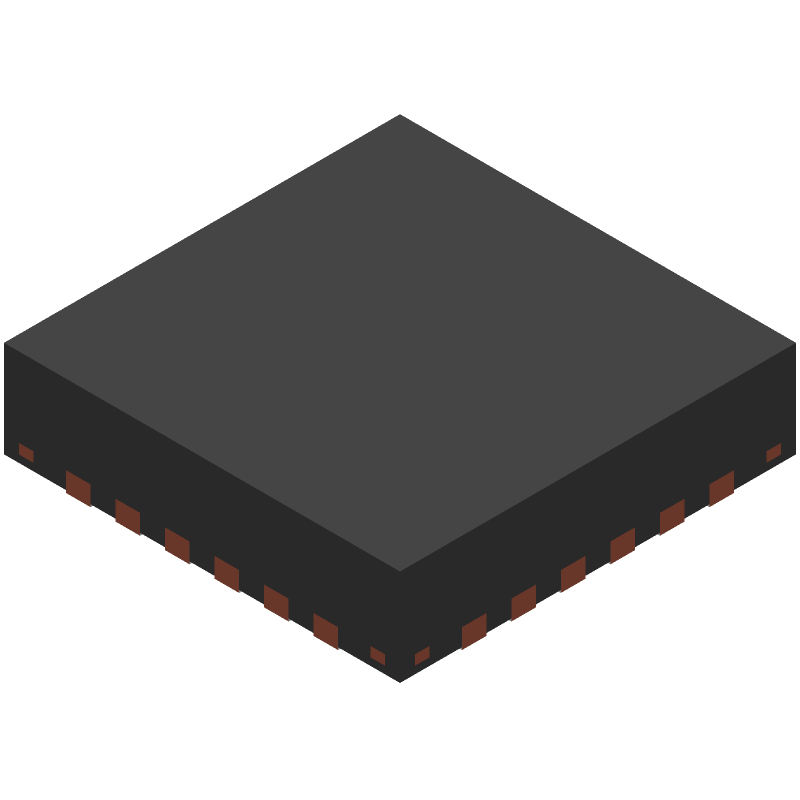

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS65130RGER by Texas Instruments
Results Overview of TPS65130RGER by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Energy and Power Systems
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
Robotics and Drones
TPS65130RGER Information
TPS65130RGER by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS65130RGER | Texas Instruments | Split-Rail Converter with Dual, Positive and Negative Outputs (300mA typ) 24-VQFN -40 to 85 |
Price & Stock for TPS65130RGER
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
27AJ0685
|
Newark | Ic, Dc-Dc Converter ((Nw)), Msl:Msl 2 - 1 Year, Svhc:No Svhc (15-Jan-2019) Rohs Compliant: Yes |Texas Instruments TPS65130RGER RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$2.6300 / $3.4000 | Buy Now |
|
DISTI #
296-17080-1-ND
|
DigiKey | IC REG BUCK BOOST ADJ DL 24VQFN Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
973 In Stock |
|
$1.4914 / $2.9000 | Buy Now |
|
DISTI #
595-TPS65130RGER
|
Mouser Electronics | Switching Voltage Regulators Adj Dl Otp Switch Bo ost DC/DC A 595-TPS65130RGET RoHS: Compliant | 2221 |
|
$1.5000 / $2.9000 | Buy Now |
|
|
Bristol Electronics | 10 |
|
RFQ | ||
|
|
Vyrian | Other Function Semiconductors | 1763 |
|
RFQ | |
|
|
Win Source Electronics | IC REG BUCK BST INV ADJ DL 24QFN | 27220 |
|
$1.0070 / $1.3006 | Buy Now |
Part Details for TPS65130RGER
TPS65130RGER CAD Models
TPS65130RGER Part Data Attributes
|
|
TPS65130RGER
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS65130RGER
Texas Instruments
Split-Rail Converter with Dual, Positive and Negative Outputs (300mA typ) 24-VQFN -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFN | |
| Package Description | 4 X 4 MM, GREEN, PLASTIC, QFN-24 | |
| Pin Count | 24 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.7 V | |
| Input Voltage-Nom | 3.6 V | |
| JESD-30 Code | S-PQCC-N24 | |
| JESD-609 Code | e4 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 2 | |
| Negative Input Voltage-Max | -2 V | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.3 A | |
| Output Voltage-Max | 15 V | |
| Output Voltage-Min | 3.2 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC24,.16SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 1500 kHz | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 mm |
Alternate Parts for TPS65130RGER
This table gives cross-reference parts and alternative options found for TPS65130RGER. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS65130RGER, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS65130RGET | Texas Instruments | $1.3609 | Split-Rail Converter with Dual, Positive and Negative Outputs (300mA typ) 24-VQFN -40 to 85 | TPS65130RGER vs TPS65130RGET |
| TPS65130RGERG4 | Texas Instruments | Check for Price | Split-Rail Converter with Dual, Positive and Negative Outputs (300mA typ) 24-VQFN -40 to 85 | TPS65130RGER vs TPS65130RGERG4 |
| TPS65130RGE | Texas Instruments | Check for Price | 0.9A SWITCHING REGULATOR, 1500kHz SWITCHING FREQ-MAX, PQCC24, 4 X 4 MM, PLASTIC, QFN-24 | TPS65130RGER vs TPS65130RGE |
| R1204N113G-TR-FE | Ricoh Electronic Devices Co Ltd | Check for Price | Switching Regulator | TPS65130RGER vs R1204N113G-TR-FE |
| BD8316GWL | ROHM Semiconductor | Check for Price | Switching Regulator, | TPS65130RGER vs BD8316GWL |
| R1204N113C-TR-FE | Ricoh Electronic Devices Co Ltd | Check for Price | Switching Regulator | TPS65130RGER vs R1204N113C-TR-FE |
TPS65130RGER Frequently Asked Questions (FAQ)
-
A good PCB layout for the TPS65130RGER involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to use a sufficient output capacitor with a low ESR, and add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
-
The TPS65130RGER can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
-
The TPS65130RGER is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and thermal design to prevent overheating.
-
The output voltage of the TPS65130RGER can be calculated using the formula: Vout = (R1 / R2) * (Vref), where R1 and R2 are the resistors in the feedback network, and Vref is the internal reference voltage (1.21V).
