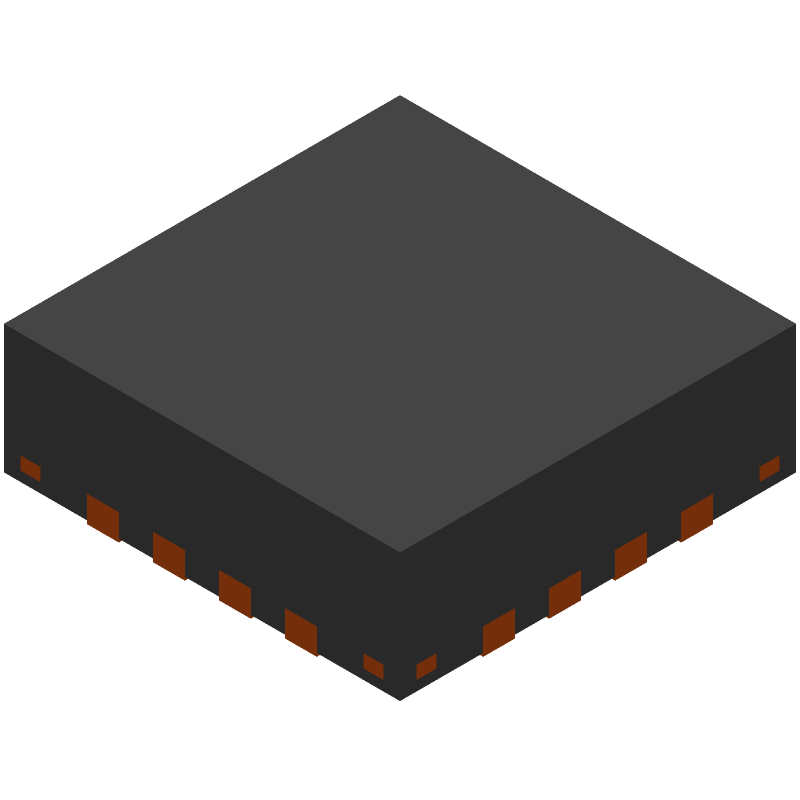

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS62130RGTRF0 by Texas Instruments
Results Overview of TPS62130RGTRF0 by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
TPS62130RGTRF0 Information
TPS62130RGTRF0 by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS62130RGTRF0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-TPS62130RGTRF0
|
Mouser Electronics | Switching Voltage Regulators Buck Converter RoHS: Compliant | 0 |
|
$0.8960 | Order Now |
Part Details for TPS62130RGTRF0
TPS62130RGTRF0 CAD Models
TPS62130RGTRF0 Part Data Attributes
|
|
TPS62130RGTRF0
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS62130RGTRF0
Texas Instruments
3-17V 3A Step-Down Converter with DCS-Control in 3x3 QFN Package 16-QFN -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | HVQCCN, | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ADJUSTABLE OUTPUT VOLTAGE FROM 0.9 TO 6V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 17 V | |
| Input Voltage-Min | 3 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | S-PQCC-N16 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 2500 kHz | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for TPS62130RGTRF0
This table gives cross-reference parts and alternative options found for TPS62130RGTRF0. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS62130RGTRF0, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS62130ARGTR | Texas Instruments | $1.5228 | 3-V to 17-V, 3-A step-down converter with DCS-control in 3x3 QFN package 16-VQFN -40 to 125 | TPS62130RGTRF0 vs TPS62130ARGTR |
| TPS62130ARGTT | Texas Instruments | $2.4447 | 3-V to 17-V, 3-A step-down converter with DCS-control in 3x3 QFN package 16-VQFN -40 to 125 | TPS62130RGTRF0 vs TPS62130ARGTT |
| TPS62130AQRGTTQ1 | Texas Instruments | Check for Price | TPS62130A-Q1 3 to 17-V 3-A Automotive Step-Down Converter in 3 x 3 QFN Package 16-VQFN -40 to 125 | TPS62130RGTRF0 vs TPS62130AQRGTTQ1 |
| TPS62130ARGT | Texas Instruments | Check for Price | SWITCHING REGULATOR | TPS62130RGTRF0 vs TPS62130ARGT |
TPS62130RGTRF0 Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the TPS62130RGTRF0 is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
-
To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value. A 10uF ceramic capacitor is recommended.
-
The minimum input capacitance required for the TPS62130RGTRF0 is 4.7uF, but it's recommended to use a 10uF or larger capacitor to ensure stability and optimal performance.
-
The TPS62130RGTRF0 is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure that the device is properly cooled to prevent overheating and ensure reliability.
-
The output voltage of the TPS62130RGTRF0 can be calculated using the formula: Vout = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors used in the feedback network.
