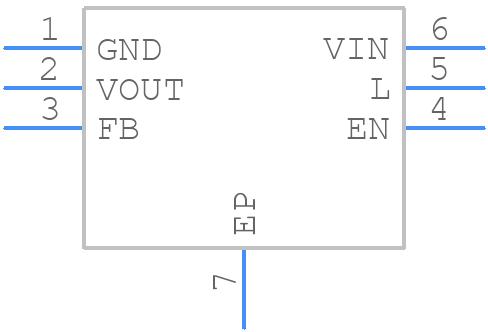

Part Symbol
-
Footprint
-

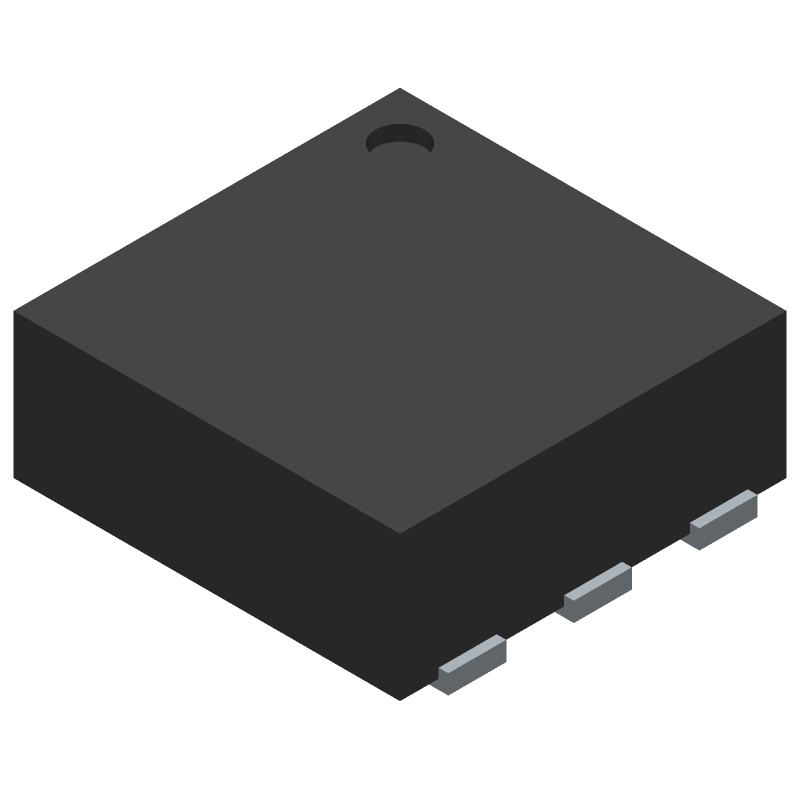

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS61240IDRVRQ1 by Texas Instruments
Results Overview of TPS61240IDRVRQ1 by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TPS61240IDRVRQ1 Information
TPS61240IDRVRQ1 by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS61240IDRVRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-28184-1-ND
|
DigiKey | IC REG BOOST 5V 500MA 6WSON Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
10475 In Stock |
|
$0.9416 / $1.9300 | Buy Now |
|
DISTI #
595-TPS61240IDRVRQ1
|
Mouser Electronics | Switching Voltage Regulators 5V 400mA 4MHz Step- Up DC/DC Converter RoHS: Compliant | 2955 |
|
$0.9170 / $1.9300 | Buy Now |
|
|
Bristol Electronics | 2197 |
|
RFQ | ||
|
|
Chip 1 Exchange | INSTOCK | 2970 |
|
RFQ | |
|
|
Cytech Systems Limited | IC REG BOOST 5V 500MA 6WSON | 6000 |
|
RFQ | |
|
|
Vyrian | Other Function Semiconductors | 8394 |
|
RFQ | |
|
|
Win Source Electronics | IC REG BOOST 5V 500MA 6SON / 3.5-MHz High Efficiency Step-Up Converter | 27000 |
|
$1.7417 / $2.6115 | Buy Now |
Part Details for TPS61240IDRVRQ1
TPS61240IDRVRQ1 CAD Models
TPS61240IDRVRQ1 Part Data Attributes
|
|
TPS61240IDRVRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS61240IDRVRQ1
Texas Instruments
2.3-V to 5.5-V input range, 3.5-MHz fixed frequency 450-mA boost converter, AEC-Q100 qualified 6-WSON -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SON | |
| Package Description | 2 X 2 MM, GREEN, PLASTIC, SON-6 | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO HAVE PFM CONTROL MODE | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.3 V | |
| Input Voltage-Nom | 3.6 V | |
| JESD-30 Code | S-PDSO-N6 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.45 A | |
| Output Voltage-Max | 5 V | |
| Output Voltage-Min | 5 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC6,.08,25 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Nom (Vsup) | 3.6 V | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 3500 kHz | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 2 mm |
TPS61240IDRVRQ1 Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the TPS61240IDRVRQ1 is 18V. Exceeding this voltage may damage the device.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the output voltage can be stabilized by adding a 10nF capacitor between the VOUT and GND pins.
-
The maximum output current that the TPS61240IDRVRQ1 can deliver is 2A. Exceeding this current may cause the device to overheat or shut down.
-
The output voltage of the TPS61240IDRVRQ1 can be configured by connecting a resistor divider network between the VOUT and GND pins. The output voltage can be calculated using the formula: VOUT = 1.2V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
-
The thermal shutdown temperature of the TPS61240IDRVRQ1 is 150°C. If the device temperature exceeds this value, it will shut down to prevent damage.
