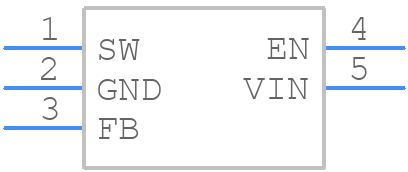

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS61041QDBVRQ1 by Texas Instruments
Results Overview of TPS61041QDBVRQ1 by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
TPS61041QDBVRQ1 Information
TPS61041QDBVRQ1 by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS61041QDBVRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-21895-1-ND
|
DigiKey | IC LED DRVR RGLTR 250MA SOT23-5 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
5257 In Stock |
|
$1.0063 / $2.1700 | Buy Now |
|
DISTI #
595-TPS61041QDBVRQ1
|
Mouser Electronics | Switching Voltage Regulators Auto Cat Low Pwr DC/ DC Boost Cnvrtr RoHS: Compliant | 1733 |
|
$1.0000 / $2.1700 | Buy Now |
|
DISTI #
J56:1989_00580010
|
Arrow Electronics | Conv DC-DC 1.8V to 6V Step Up Single-Out 1.8V to 28V Automotive AEC-Q100 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks | Europe - 165000 |
|
$0.9892 / $1.0650 | Buy Now |
|
|
LCSC | 28V 1MHz 1 boost converter DC-DCVoltage Stabilizer 250mA 1.8V6V SOT-23-5 LED Drivers ROHS | 10 |
|
$2.0587 / $2.1674 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 13373 |
|
RFQ |
Part Details for TPS61041QDBVRQ1
TPS61041QDBVRQ1 CAD Models
TPS61041QDBVRQ1 Part Data Attributes
|
|
TPS61041QDBVRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS61041QDBVRQ1
Texas Instruments
1.8-V to 6-V input range, 250-mA boost converter, AEC-Q100 qualified 5-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-23 | |
| Package Description | GREEN, PLASTIC, SOT-23, 5 PIN | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE FREQUENCY MODULATION | |
| Input Voltage-Max | 6 V | |
| Input Voltage-Min | 1.8 V | |
| Input Voltage-Nom | 2.4 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.325 A | |
| Output Voltage-Max | 28 V | |
| Output Voltage-Min | 1.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | SOP5,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.45 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BOOST | |
| Switching Frequency-Max | 1000 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
