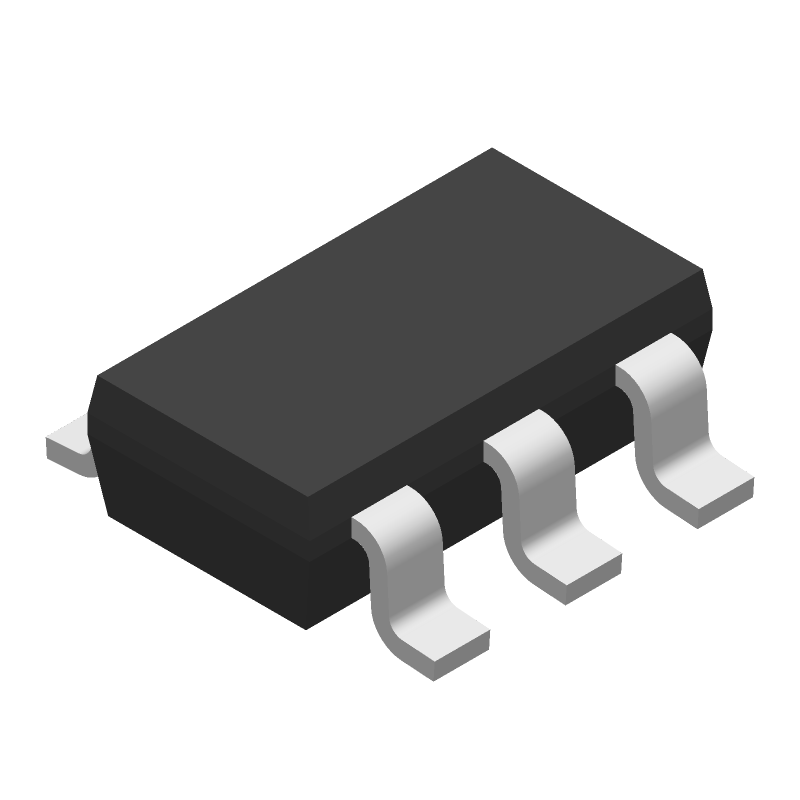

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS562209DDCT by Texas Instruments
Results Overview of TPS562209DDCT by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
TPS562209DDCT Information
TPS562209DDCT by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS562209DDCT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-37302-1-ND
|
DigiKey | IC REG BUCK ADJ 2A SOT23 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
5248 In Stock |
|
$0.3335 / $0.7700 | Buy Now |
|
DISTI #
595-TPS562209DDCT
|
Mouser Electronics | Switching Voltage Regulators 17V Input 2A Sync SD Regulator A 595-TPS562209DDCR RoHS: Compliant | 2522 |
|
$0.3130 / $0.7700 | Buy Now |
|
|
Rochester Electronics | TPS562209 17 V Input, 2A Synchronous Step-Down Regulator in SOT-23 RoHS: Compliant Status: Active Min Qty: 1 | 173 |
|
$0.2635 / $0.4250 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 250 |
|
RFQ | |
|
|
Vyrian | Other Function Semiconductors | 71555 |
|
RFQ | |
|
|
Win Source Electronics | IC REG BUCK ADJ 2A SYNC SOT-23-6 / Conv DC-DC 4.5V to 17V Synchronous Step Down Single-Out 0.76V to 7V 3A 6-Pin TSOT-23 T/R | 239000 |
|
$0.1271 / $0.1894 | Buy Now |
Part Details for TPS562209DDCT
TPS562209DDCT CAD Models
TPS562209DDCT Part Data Attributes
|
|
TPS562209DDCT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS562209DDCT
Texas Instruments
17 V Input, 2A Synchronous Step-Down Regulator in SOT-23 6-SOT-23-THIN -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | TSOT-23, 6 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | OUTPUT VOLTAGE IS 0.76 TO 7V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 17 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 2 A | |
| Output Voltage-Max | 7 V | |
| Output Voltage-Min | 0.76 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 650 kHz | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
TPS562209DDCT Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the TPS562209DDCT is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
-
To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value. A 10uF to 22uF ceramic capacitor is recommended.
-
The minimum input capacitance required for the TPS562209DDCT is 1uF, but it's recommended to use a 2.2uF to 4.7uF ceramic capacitor for optimal performance.
-
The TPS562209DDCT is rated for operation up to 125°C, but it's essential to ensure that the device is properly heatsinked and that the junction temperature is kept below 125°C to ensure reliability.
-
The output voltage of the TPS562209DDCT can be calculated using the following formula: Vout = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors used in the feedback network.
