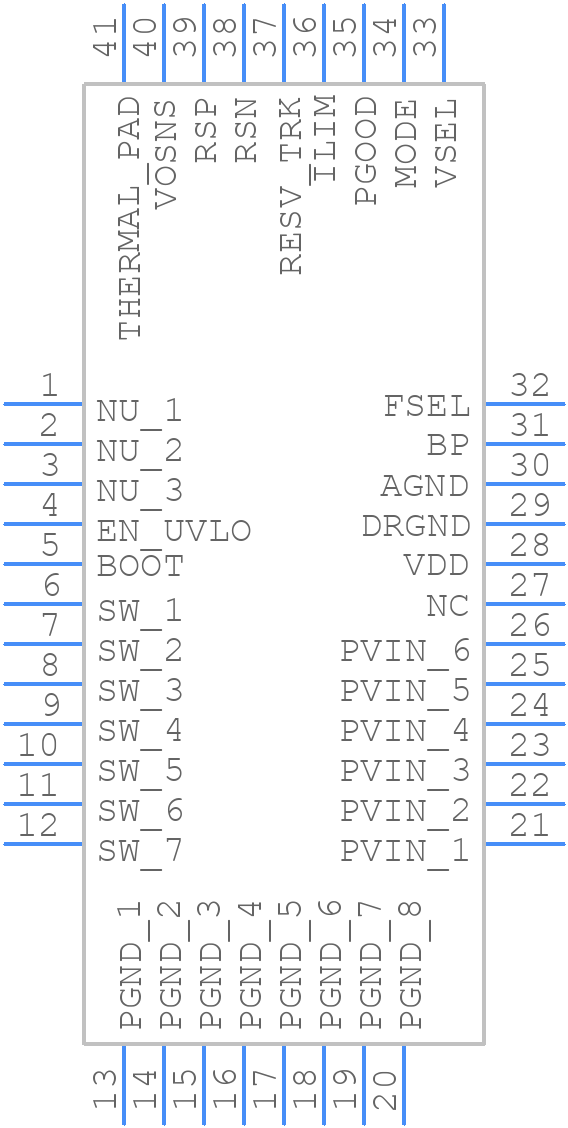

Part Symbol
-

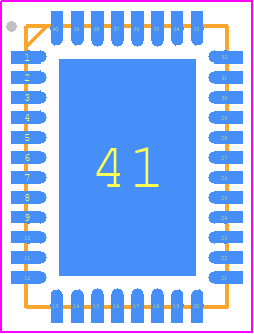

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS548D22RVFT by Texas Instruments
Results Overview of TPS548D22RVFT by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TPS548D22RVFT Information
TPS548D22RVFT by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS548D22RVFT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-44238-1-ND
|
DigiKey | IC REG BUCK ADJ 40A 40LQFN Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
552 In Stock |
|
$6.4668 / $10.7100 | Buy Now |
|
DISTI #
595-TPS548D22RVFT
|
Mouser Electronics | Switching Voltage Regulators 1.5Vin to 16Vin 40A SWIFT Sync A 595-TPS548D22RVFR RoHS: Compliant | 1964 |
|
$6.1200 / $9.9600 | Buy Now |
|
DISTI #
J56:1989_10186919
|
Arrow Electronics | Conv DC-DC 1.5V to 16V Synchronous Step Down Single-Out 0.6V to 5.5V 40A 40-Pin LQFN-CLIP EP T/R Min Qty: 250 Package Multiple: 250 Lead time: 12 Weeks Date Code: 2324 | Europe - 250 |
|
$6.1030 | Buy Now |
|
DISTI #
V72:2272_16019154
|
Arrow Electronics | Conv DC-DC 1.5V to 16V Synchronous Step Down Single-Out 0.6V to 5.5V 40A 40-Pin LQFN-CLIP EP T/R Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2324 Container: Cut Strips | Americas - 30 |
|
$6.1030 / $9.8540 | Buy Now |
|
|
Win Source Electronics | IC REG BUCK ADJ 40A SYNC 40LQFN / Conv DC-DC 1.5V to 16V Synchronous Step Down Single-Out 0.6V to 5.5V 40A 40-Pin LQFN-CLIP EP T/R | 9010 |
|
$3.9600 / $5.1150 | Buy Now |
Part Details for TPS548D22RVFT
TPS548D22RVFT CAD Models
TPS548D22RVFT Part Data Attributes
|
|
TPS548D22RVFT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS548D22RVFT
Texas Instruments
1.5-V to 16-V, 40-A synchronous SWIFT™ buck converter with differential remote sense 40-LQFN-CLIP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | LQFN-CLIP, 40 PIN | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2016-05-01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO REQUIRE 1.5 TO 16V INPUT SUPPLY VOLTAGE, ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 5.5V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 16 V | |
| Input Voltage-Min | 1.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PQCC-N40 | |
| JESD-609 Code | e4 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 40 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 40 A | |
| Output Voltage-Max | 5.5 V | |
| Output Voltage-Min | 0.6 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HQCCN | |
| Package Equivalence Code | LCC40,.2X.28,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.52 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 1050 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5 mm |
Alternate Parts for TPS548D22RVFT
This table gives cross-reference parts and alternative options found for TPS548D22RVFT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS548D22RVFT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS548D22RVFR | Texas Instruments | Check for Price | 1.5-V to 16-V, 40-A synchronous SWIFT™ buck converter with differential remote sense 40-LQFN-CLIP -40 to 125 | TPS548D22RVFT vs TPS548D22RVFR |
| IR3888MTRPBF | Infineon Technologies AG | Check for Price | Switching Regulator, | TPS548D22RVFT vs IR3888MTRPBF |
TPS548D22RVFT Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the TPS548D22RVFT is 6.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1ohm or less, as specified in the datasheet. Additionally, the input capacitance should be at least 10uF with an ESR of 1ohm or less.
-
The maximum output current that the TPS548D22RVFT can deliver is 2A, as specified in the datasheet. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations.
-
The power dissipation of the TPS548D22RVFT can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. The thermal resistance of the package should also be considered to ensure that the junction temperature does not exceed the maximum rating.
-
The TPS548D22RVFT has a maximum junction temperature rating of 150°C. The thermal resistance of the package is 24.5°C/W. It is recommended to use a heat sink or thermal pad to ensure that the junction temperature does not exceed the maximum rating.
