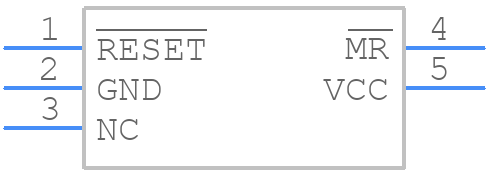

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS3847085DBVR by Texas Instruments
Results Overview of TPS3847085DBVR by Texas Instruments
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TPS3847085DBVR Information
TPS3847085DBVR by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS3847085DBVR | Texas Instruments | 380nA voltage monitor for 12V rails 5-SOT-23 -40 to 105 |
Price & Stock for TPS3847085DBVR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-TPS3847085DBVR-296-ND
|
DigiKey | IC SUPERVISOR 1 CHANNEL SOT23-5 Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
3000 In Stock |
|
$1.3300 | Buy Now |
|
DISTI #
296-40763-1-ND
|
DigiKey | IC SUPERVISOR 1 CHANNEL SOT23-5 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1443 In Stock |
|
$1.0125 / $2.0600 | Buy Now |
|
DISTI #
595-TPS3847085DBVR
|
Mouser Electronics | Supervisory Circuits SVS A 595-TPS3847085DBVT RoHS: Compliant | 563 |
|
$0.9860 / $2.0600 | Buy Now |
|
DISTI #
86049271
|
Verical | Processor Supervisor 8.5V 1 Active Low/Push-Pull 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 235 Package Multiple: 1 Date Code: 1501 | Americas - 3000 |
|
$1.6000 | Buy Now |
|
|
Bristol Electronics | 50 |
|
RFQ | ||
|
|
Rochester Electronics | TPS3847 - 380nA voltage monitor for 12V rails RoHS: Compliant Status: Active Min Qty: 1 | 3000 |
|
$0.7959 / $1.2800 | Buy Now |
|
|
Cytech Systems Limited | IC SUPERVISOR 1 CHANNEL SOT23-5 | 9000 |
|
RFQ | |
|
|
LCSC | 20ms Active Low 1 SOT-23-5 Supervisor and Reset ICs ROHS | 20 |
|
$2.5489 / $2.6938 | Buy Now |
Part Details for TPS3847085DBVR
TPS3847085DBVR CAD Models
TPS3847085DBVR Part Data Attributes
|
|
TPS3847085DBVR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS3847085DBVR
Texas Instruments
380-nA voltage monitor for 12-V rails 5-SOT-23 -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SOT-23, 5 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.45 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +8.5V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 mm |
Alternate Parts for TPS3847085DBVR
This table gives cross-reference parts and alternative options found for TPS3847085DBVR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS3847085DBVR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS3847108DBVR | Texas Instruments | $1.1171 | 380-nA voltage monitor for 12-V rails 5-SOT-23 -40 to 105 | TPS3847085DBVR vs TPS3847108DBVR |
| TPS3847085DBVT | Texas Instruments | $1.1278 | 380-nA voltage monitor for 12-V rails 5-SOT-23 -40 to 105 | TPS3847085DBVR vs TPS3847085DBVT |
| DS2715BZ+ | Maxim Integrated Products | $4.5957 | Power Supply Support Circuit, Fixed, 1 Channel, PDSO16, ROHS COMPLIANT, SOP-16 | TPS3847085DBVR vs DS2715BZ+ |
| DS2715BZ+ | Analog Devices Inc | Check for Price | NiMH Battery Pack Charge Controller, 16-SOIC_N-150_MIL, 16 Pins, -40 to 85C | TPS3847085DBVR vs DS2715BZ+ |
| DS2715BZ+T&R | Analog Devices Inc | Check for Price | NiMH Battery Pack Charge Controller, 16-SOIC_N-150_MIL, 16 Pins, -40 to 85C | TPS3847085DBVR vs DS2715BZ+T&R |
| DS2715B2+ | Maxim Integrated Products | Check for Price | Power Supply Support Circuit, Fixed, 1 Channel, PDSO16, ROHS COMPLIANT, SOP-16 | TPS3847085DBVR vs DS2715B2+ |
TPS3847085DBVR Frequently Asked Questions (FAQ)
-
A good PCB layout for the TPS3847085DBVR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure the stability of the output voltage, it is essential to choose the correct output capacitor value and type. A minimum output capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple.
-
The TPS3847085DBVR can handle a maximum input voltage of 18V. Exceeding this voltage may damage the device.
-
The output voltage of the TPS3847085DBVR can be programmed using an external resistor divider network connected to the FB (Feedback) pin. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
-
The TPS3847085DBVR has a thermal derating of 12.5mW/°C above 25°C. This means that the device's power dissipation should be reduced as the ambient temperature increases to prevent overheating.
