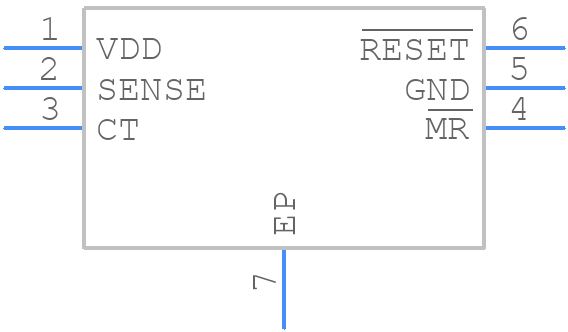

Part Symbol
-
Footprint
-

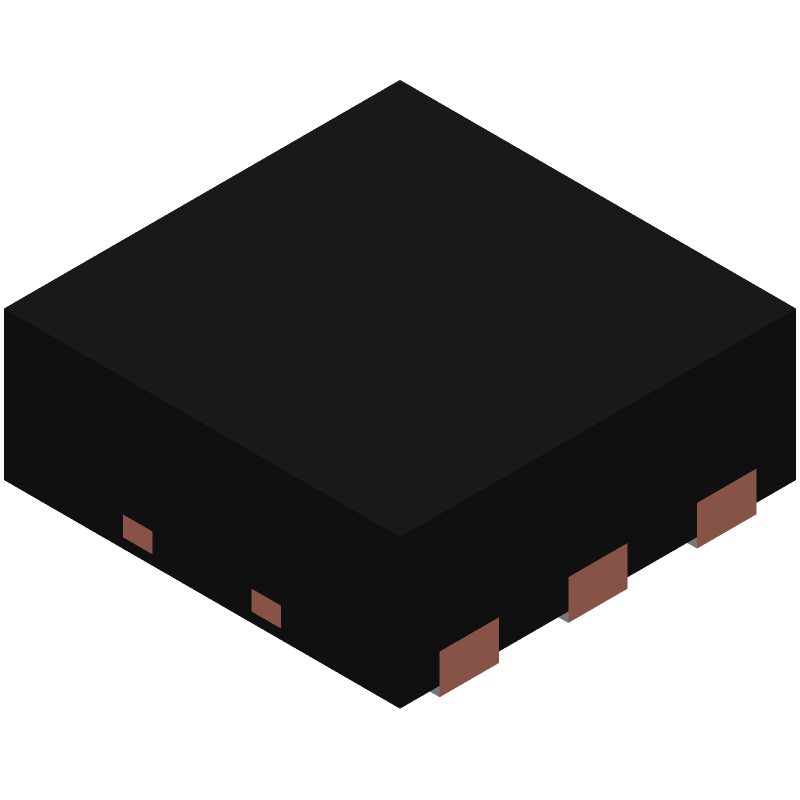

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS3808G01DRVR by Texas Instruments
Results Overview of TPS3808G01DRVR by Texas Instruments
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TPS3808G01DRVR Information
TPS3808G01DRVR by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS3808G01DRVR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-23656-1-ND
|
DigiKey | IC SUPERVISOR 1 CHANNEL 6WSON Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
7582 In Stock |
|
$0.7281 / $1.5300 | Buy Now |
|
DISTI #
595-TPS3808G01DRVR
|
Mouser Electronics | Supervisory Circuits Low Quies Crnt Progr Delay Sup Crct A 595-TPS3808G01DRVT RoHS: Compliant | 2926 |
|
$0.7230 / $1.5200 | Buy Now |
|
DISTI #
V72:2272_07415947
|
Arrow Electronics | Processor Supervisor Adj 1 Active Low/Open Drain 6-Pin WSON EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2312 Container: Cut Strips | Americas - 518 |
|
$0.8079 / $1.6467 | Buy Now |
|
DISTI #
87208847
|
Verical | Processor Supervisor Adj 1 Active Low/Open Drain 6-Pin WSON EP T/R RoHS: Compliant Min Qty: 9 Package Multiple: 1 Date Code: 2312 | Americas - 518 |
|
$0.8079 / $1.4800 | Buy Now |
|
|
Quest Components | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO6 | 10 |
|
$1.2765 / $1.3875 | Buy Now |
|
DISTI #
TPS3808G01DRVR
|
TME | IC: supervisor circuit, power on reset monitor (PoR), SOT23-6 Min Qty: 1 | 0 |
|
$0.9700 / $1.4500 | RFQ |
|
DISTI #
SMC-TPS3808G01DRVR
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 18159 |
|
RFQ | |
|
|
LCSC | 20ms Active Low 1.7V6.5V 1 WSON-6-EP(2x2) Supervisor and Reset ICs ROHS | 1162 |
|
$0.6726 / $1.1596 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 547549 |
|
RFQ | |
|
|
Win Source Electronics | IC VOLT SUPERVISOR ADJ 6SON | 91690 |
|
$0.2733 / $0.3530 | Buy Now |
Part Details for TPS3808G01DRVR
TPS3808G01DRVR CAD Models
TPS3808G01DRVR Part Data Attributes
|
|
TPS3808G01DRVR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS3808G01DRVR
Texas Instruments
Low-quiescent current supervisor with programmable delay & manual reset 6-WSON -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SON | |
| Package Description | 2 X 2 MM, GREEN, PLASTIC, SON-6 | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | BAT BUP SW:N;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:Y;UV DET:N;WD:N;WWD:N | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC | |
| JESD-30 Code | S-PDSO-N6 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC6,.08,25 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Supply Current-Max (Isup) | 0.006 mA | |
| Supply Voltage-Max (Vsup) | 6.5 V | |
| Supply Voltage-Min (Vsup) | 1.8 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +0.405V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 2 mm |
Alternate Parts for TPS3808G01DRVR
This table gives cross-reference parts and alternative options found for TPS3808G01DRVR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS3808G01DRVR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PT7M3808G01TAEX | Diodes Incorporated | $0.2090 | Power Supply Support Circuit, | TPS3808G01DRVR vs PT7M3808G01TAEX |
| TPS3703F6050DSER | Texas Instruments | $0.8396 | High-accuracy window supervisor with reset time delay 6-WSON -40 to 125 | TPS3808G01DRVR vs TPS3703F6050DSER |
| TPS3808G01DBVT | Texas Instruments | $2.0051 | Low-quiescent current supervisor with programmable delay & manual reset 6-SOT-23 -40 to 125 | TPS3808G01DRVR vs TPS3808G01DBVT |
| TPS3808G01MDBVTEP | Texas Instruments | $3.5458 | Enhanced Product Low Quiescent Current, Programmable Delay Supervisory Circuit 6-SOT-23 -55 to 125 | TPS3808G01DRVR vs TPS3808G01MDBVTEP |
| TPS3808G01DRVRG4 | Texas Instruments | Check for Price | Low-quiescent current supervisor with programmable delay & manual reset 6-WSON -40 to 125 | TPS3808G01DRVR vs TPS3808G01DRVRG4 |
| V62/19602-01XE | Texas Instruments | Check for Price | Radiation-tolerant, 40-V adjustable voltage supervisor in a plastic package 8-TSSOP -55 to 125 | TPS3808G01DRVR vs V62/19602-01XE |
| 84N04L-AE6-R | Unisonic Technologies Co Ltd | Check for Price | Power Management Circuit, | TPS3808G01DRVR vs 84N04L-AE6-R |
| PT7M3808G01ZCEX | Diodes Incorporated | Check for Price | Power Supply Support Circuit, | TPS3808G01DRVR vs PT7M3808G01ZCEX |
TPS3808G01DRVR Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the TPS3808G01DRVR involves placing the device close to the power source, using a solid ground plane, and keeping the input and output capacitors close to the device. A 4-layer PCB with a solid ground plane is recommended. Refer to the TI application note 'TPS3808G01DRVR Layout and Placement Guidelines' for more information.
-
The choice of input and output capacitors for the TPS3808G01DRVR depends on the specific application requirements. A general guideline is to use low-ESR capacitors with a capacitance value of 10uF to 22uF for the input and output. The capacitor selection should also consider the voltage rating, temperature range, and ripple current rating. Refer to the TI application note 'TPS3808G01DRVR Capacitor Selection Guidelines' for more information.
-
The maximum ambient temperature range for the TPS3808G01DRVR is -40°C to 125°C. However, the device can operate up to 150°C with derating. Refer to the datasheet for more information on thermal derating.
-
The TPS3808G01DRVR has a built-in overvoltage protection (OVP) feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be set by selecting the appropriate resistor values. Refer to the datasheet for more information on OVP implementation.
-
The maximum output current capability of the TPS3808G01DRVR is 1.5A. However, the device can deliver higher currents for short durations. Refer to the datasheet for more information on output current capability.
