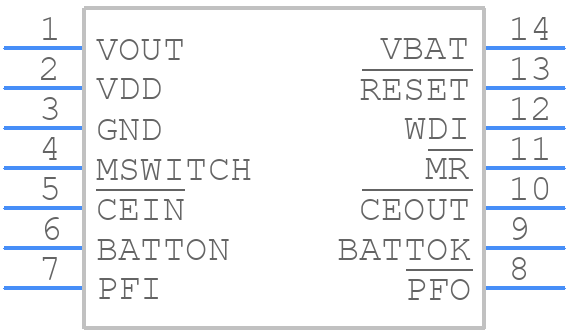

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS3600D33PWRG4 by Texas Instruments
Results Overview of TPS3600D33PWRG4 by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
Transportation and Logistics
Healthcare
Renewable Energy
Medical Imaging
Automotive
Robotics and Drones
TPS3600D33PWRG4 Information
TPS3600D33PWRG4 by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS3600D33PWRG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Other Function Semiconductors | 202 |
|
RFQ |
Part Details for TPS3600D33PWRG4
TPS3600D33PWRG4 CAD Models
TPS3600D33PWRG4 Part Data Attributes
|
|
TPS3600D33PWRG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS3600D33PWRG4
Texas Instruments
Battery-backup supervisor for low-power processors 14-TSSOP -40 to 85
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP, TSSOP14,.25 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | RESET THRESHOLD VOLTAGE IS 2.93V; MANUAL RESET, POWER-ON RESET GENERATOR | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | BATTERY BACKUP SUPERVISOR | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max (Isup) | 0.04 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +2.93V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for TPS3600D33PWRG4
This table gives cross-reference parts and alternative options found for TPS3600D33PWRG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS3600D33PWRG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS3600D33PWG4 | Texas Instruments | Check for Price | Battery-Backup Supervisors for Low Power Processors 14-TSSOP -40 to 85 | TPS3600D33PWRG4 vs TPS3600D33PWG4 |
TPS3600D33PWRG4 Frequently Asked Questions (FAQ)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good thermal design practices, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
-
To ensure accurate voltage sensing, it's crucial to follow the recommended pin connections, use a low-impedance voltage source, and minimize noise and interference on the voltage sense lines. Additionally, consider using a voltage sense resistor with a low temperature coefficient to minimize errors.
-
The maximum allowed voltage on the VSENSE pin is 6.5V, which is higher than the recommended operating voltage of 5.5V. However, it's essential to ensure that the voltage on the VSENSE pin does not exceed 6.5V to prevent damage to the device.
-
The TPS3600D33PWRG4 is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heatsinked and that the thermal design is adequate to prevent overheating.
-
The power dissipation of the TPS3600D33PWRG4 can be calculated using the formula: Pd = (VIN - VOUT) x IOUT x Efficiency. The efficiency of the device can be found in the datasheet, and the input and output voltages and currents should be measured or calculated based on the application.
