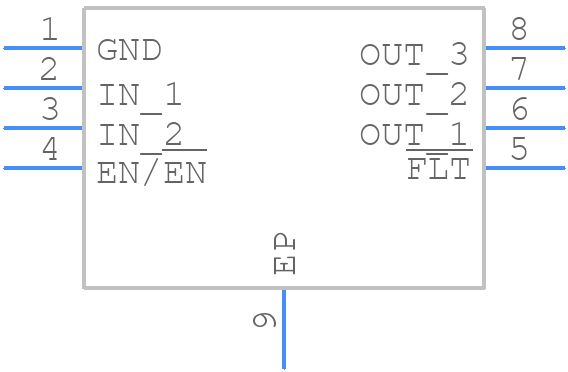

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS2065CDGN-2 by Texas Instruments
Results Overview of TPS2065CDGN-2 by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TPS2065CDGN-2 Information
TPS2065CDGN-2 by Texas Instruments is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS2065CDGN | Texas Instruments | Single Channel, Current-Limited USB Power Distribution Switch 8-MSOP-PowerPAD -40 to 85 | |
| TPS2065CDGNR | Texas Instruments | Single Channel, Current-Limited USB Power Distribution Switch 8-MSOP-PowerPAD -40 to 85 | |
| TPS2065CDGNR-2 | Texas Instruments | Single Channel, Current-Limited USB Power Distribution Switch 8-MSOP-PowerPAD -40 to 85 |
