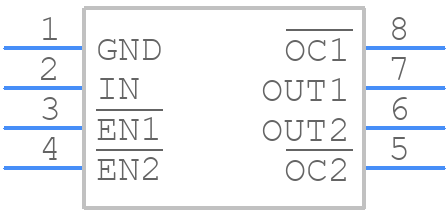

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPS2052BDR by Texas Instruments
Results Overview of TPS2052BDR by Texas Instruments
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TPS2052BDR Information
TPS2052BDR by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS2052BDR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3008872RL
|
Farnell | POWER LOAD SW, HIGH SIDE, 5.5V, SOIC-8 RoHS: Compliant Min Qty: 10 Lead time: 53 Weeks, 2 Days Container: Reel | 6 |
|
$0.8981 | Buy Now |
|
DISTI #
3008872
|
Farnell | POWER LOAD SW, HIGH SIDE, 5.5V, SOIC-8 RoHS: Compliant Min Qty: 1 Lead time: 53 Weeks, 2 Days Container: Cut Tape | 6 |
|
$0.8981 / $0.8995 | Buy Now |
|
DISTI #
296-17451-1-ND
|
DigiKey | IC PWR SWITCH N-CHAN 1:2 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6191 In Stock |
|
$0.4964 / $1.1000 | Buy Now |
|
DISTI #
595-TPS2052BDR
|
Mouser Electronics | Power Switch ICs - Power Distribution Current-Limited A 595-TPS2052BD RoHS: Compliant | 12646 |
|
$0.5110 / $1.1000 | Buy Now |
|
DISTI #
V72:2272_07410749
|
Arrow Electronics | Power Switch Hi Side 2-OUT 0A 0.075mOhm 8-Pin SOIC T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2417 Container: Cut Strips | Americas - 2589 |
|
$0.5171 / $1.0816 | Buy Now |
|
DISTI #
83688192
|
Verical | Power Switch Hi Side 2-OUT 0A 0.075mOhm 8-Pin SOIC T/R RoHS: Compliant Min Qty: 13 Package Multiple: 1 Date Code: 2417 | Americas - 2589 |
|
$0.5171 / $0.7817 | Buy Now |
|
|
Bristol Electronics | 4100 |
|
RFQ | ||
|
|
Quest Components | 2-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8 | 3280 |
|
$0.5535 / $1.8450 | Buy Now |
|
|
Quest Components | 2-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8 | 356 |
|
$0.7380 / $1.8450 | Buy Now |
|
DISTI #
TPS2052BDR
|
TME | IC: power switch, high-side, 0.5A, Ch: 2, N-Channel, SMD, SO8 Min Qty: 1 | 250 |
|
$0.6300 / $1.1600 | Buy Now |
Part Details for TPS2052BDR
TPS2052BDR CAD Models
TPS2052BDR Part Data Attributes
|
|
TPS2052BDR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS2052BDR
Texas Instruments
2-ch, 0.5A loading, 2.7-5.5V, 70mΩ USB power switch, active-high 8-SOIC -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | UNDERVOLTAGE LOCKOUT | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | LOAD SWITCH | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.7 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 0.09 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for TPS2052BDR
This table gives cross-reference parts and alternative options found for TPS2052BDR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS2052BDR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS2052BDGN | Texas Instruments | $0.7073 | 2-ch, 0.5A loading, 2.7-5.5V, 70mΩ USB power switch, active-high 8-HVSSOP -40 to 125 | TPS2052BDR vs TPS2052BDGN |
| MIC2076-2YM-TR | Microchip Technology Inc | $1.5133 | 2-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8 | TPS2052BDR vs MIC2076-2YM-TR |
| TPS2052BDG4 | Texas Instruments | Check for Price | 2-ch, 0.5A loading, 2.7-5.5V, 70mΩ USB power switch, active-high 8-SOIC -40 to 125 | TPS2052BDR vs TPS2052BDG4 |
| TPS2052BDRBT | Texas Instruments | Check for Price | 2-ch, 0.5A loading, 2.7-5.5V, 70mΩ USB power switch, active-high 8-SON -40 to 85 | TPS2052BDR vs TPS2052BDRBT |
| MIC2026A-2YMTR | Microchip Technology Inc | Check for Price | 2-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8, LEAD FREE, SOIC-8 | TPS2052BDR vs MIC2026A-2YMTR |
