TPS2032D by: Texas Instruments

1A loading, 2.7-5.5V, 33mΩ USB power switch, active-high 8-SOIC -40 to 125

Part Details for TPS2032D by Texas Instruments

Results Overview of TPS2032D by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Renewable Energy

TPS2032D Information

TPS2032D by Texas Instruments is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for TPS2032D

Part # Distributor Description Stock Price Buy
DISTI # 28AH5721
Newark Ic, 1.5A Power Dist Switch 8-Soic, Power Load Switch Type:High Side, Input Voltage:5.5V, Current Limit:1.5A, On State Resistance:0.033Ohm, Distribution Switch Case Style:Soic, No. Of Pins:8Pins, Thermal Protection:Yes, On/Enable Rohs Compliant: Yes |Texas Instruments TPS2032D RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 1 $3.3900
  • 10 $3.1400
  • 25 $2.9300
  • 50 $2.8000
  • 150 $2.6300
  • 300 $2.5100
  • 525 $2.4600
$2.4600 / $3.3900 Buy Now
DISTI # 2156-TPS2032D-ND
DigiKey IC PWR SWITCH N-CHAN 1:1 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT 8746
In Stock
  • 187 $1.6100
$1.6100 Buy Now
DISTI # 296-2567-5-ND
DigiKey IC PWR SWITCH N-CHAN 1:1 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube 882
In Stock
  • 1 $2.4300
  • 10 $1.8020
  • 75 $1.5048
  • 150 $1.4357
  • 300 $1.3787
  • 525 $1.3401
  • 1,050 $1.3001
  • 2,550 $1.2590
  • 5,025 $1.2338
$1.2338 / $2.4300 Buy Now
DISTI # 595-TPS2032D
Mouser Electronics Power Switch ICs - Power Distribution 1.1A 2.7-5.5V Sngl H i-Side MOSFET A 595-TPS2032DR RoHS: Compliant 435
  • 1 $2.4300
  • 10 $1.8100
  • 25 $1.5100
  • 75 $1.4300
  • 300 $1.3700
  • 525 $1.3400
  • 1,050 $1.3000
  • 3,000 $1.2500
  • 6,000 $1.2000
$1.2000 / $2.4300 Buy Now
DISTI # J56:1989_00138291
Arrow Electronics USB Power Switch Single 5.5V 1.5A 8-Pin SOIC Tube RoHS: Compliant Min Qty: 75 Package Multiple: 75 Lead time: 6 Weeks Europe - 150
  • 75 $1.0599
$1.0599 Buy Now
DISTI # 86047497
Verical USB Power Switch Single 5.5V 1.5A 8-Pin SOIC Tube RoHS: Compliant Min Qty: 194 Package Multiple: 1 Americas - 5292
  • 194 $1.9375
  • 500 $1.7375
  • 1,000 $1.6000
  • 10,000 $1.4250
  • 100,000 $1.1983
$1.1983 / $1.9375 Buy Now
DISTI # 86047066
Verical USB Power Switch Single 5.5V 1.5A 8-Pin SOIC Tube RoHS: Compliant Min Qty: 194 Package Multiple: 1 Date Code: 0601 Americas - 1800
  • 194 $1.9375
  • 500 $1.7375
  • 1,000 $1.6000
  • 10,000 $1.4250
  • 100,000 $1.1983
$1.1983 / $1.9375 Buy Now
DISTI # 86047231
Verical USB Power Switch Single 5.5V 1.5A 8-Pin SOIC Tube RoHS: Compliant Min Qty: 194 Package Multiple: 1 Date Code: 1101 Americas - 1436
  • 194 $1.9375
  • 500 $1.7375
  • 1,000 $1.6000
  • 10,000 $1.4250
  • 100,000 $1.1983
$1.1983 / $1.9375 Buy Now
DISTI # 86037109
Verical USB Power Switch Single 5.5V 1.5A 8-Pin SOIC Tube RoHS: Compliant Min Qty: 194 Package Multiple: 1 Date Code: 1001 Americas - 218
  • 194 $1.9375
  • 500 $1.7375
  • 1,000 $1.6000
  • 10,000 $1.4250
  • 100,000 $1.1983
$1.1983 / $1.9375 Buy Now
Bristol Electronics   214
RFQ
Quest Components   16
  • 1 $2.5200
  • 3 $1.8900
  • 14 $1.5750
$1.5750 / $2.5200 Buy Now
Rochester Electronics TPS2032 1.1A, 2.7-5.5V Single Hot-Swap IC High-Side MOSFET, Fault Report, Act-High Enable RoHS: Compliant Status: Active Min Qty: 1 8746
  • 100 $1.5500
  • 500 $1.3900
  • 1,000 $1.2800
  • 10,000 $1.1400
  • 100,000 $0.9586
$0.9586 / $1.5500 Buy Now
Vyrian Interface ICs 5924
RFQ

Part Details for TPS2032D

TPS2032D CAD Models

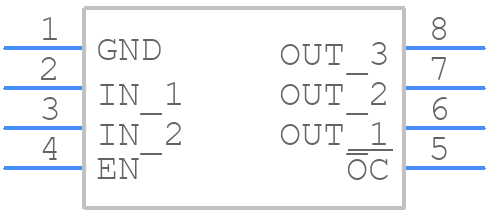

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TPS2032D Part Data Attributes

Parametric Data
TPS2032D Texas Instruments
Buy Now Datasheet
Compare Parts:
TPS2032D Texas Instruments 1A loading, 2.7-5.5V, 33mΩ USB power switch, active-high 8-SOIC -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description SOIC-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Built-in Protections OVER CURRENT; THERMAL; UNDER VOLTAGE
Driver Number of Bits 1
Input Characteristics STANDARD
Interface IC Type BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 4.9 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Current Flow Direction SOURCE
Output Current-Max 1 A
Output Peak Current Limit-Nom 1.5 A
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Current-Max 0.1 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.7 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology MOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Turn-off Time 40000 µs
Turn-on Time 20000 µs
Width 3.9 mm
