TPS2024P by: Texas Instruments

2A loading, 2.7-5.5V, 33mΩ USB power switch, active-low 8-PDIP -40 to 125

Part Details for TPS2024P by Texas Instruments

Results Overview of TPS2024P by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

TPS2024P Information

TPS2024P by Texas Instruments is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
TPS2024P Texas Instruments 2.2A, 2.7-5.5V Single Power Distribution Switch IC Hi-Side MOSFET, Fault Report, Act-Low Enable 8-PDIP -40 to 85

Price & Stock for TPS2024P

Part # Distributor Description Stock Price Buy
DISTI # 2156-TPS2024P-ND
DigiKey IC PWR SWITCH N-CHANNEL 1:1 8DIP Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT 3652
In Stock
  • 229 $1.3100
$1.3100 Buy Now
DISTI # 296-12234-5-ND
DigiKey IC PWR SWITCH N-CHANNEL 1:1 8DIP Min Qty: 1 Lead time: 6 Weeks Container: Tube 480
In Stock
  • 1 $2.5400
  • 10 $1.8860
  • 50 $1.6256
  • 100 $1.5450
  • 250 $1.4599
  • 500 $1.4086
  • 1,000 $1.3663
  • 2,500 $1.3217
  • 5,000 $1.2948
$1.2948 / $2.5400 Buy Now
DISTI # 595-TPS2024P
Mouser Electronics Power Switch ICs - Power Distribution 2.2A 2.7-5.5V Sngl H i-Side MOSFET RoHS: Compliant 0
  • 1 $2.5400
  • 10 $1.8900
  • 50 $1.6200
  • 100 $1.5400
  • 250 $1.4500
  • 500 $1.4000
  • 1,000 $1.3500
  • 2,500 $1.2900
  • 5,000 $1.2500
$1.2500 / $2.5400 Order Now
DISTI # 86291760
Verical USB Power Switch Single 5.5V 3A 8-Pin PDIP Tube RoHS: Compliant Min Qty: 250 Package Multiple: 1 Date Code: 9801 Americas - 1650
  • 250 $1.5000
  • 500 $1.4125
  • 1,000 $1.3375
$1.3375 / $1.5000 Buy Now
DISTI # 86289440
Verical USB Power Switch Single 5.5V 3A 8-Pin PDIP Tube RoHS: Compliant Min Qty: 250 Package Multiple: 1 Date Code: 0101 Americas - 1600
  • 250 $1.5000
  • 500 $1.4125
  • 1,000 $1.3375
$1.3375 / $1.5000 Buy Now
Rochester Electronics TPS2024 2.2A, 2.7-5.5V Single Power Distribution Switch IC Hi-Side MOSFET, Fault Report, Act-Low Enable RoHS: Compliant Status: Active Min Qty: 1 3652
  • 25 $1.2600
  • 100 $1.2000
  • 500 $1.1300
  • 1,000 $1.0700
  • 10,000 $1.0100
$1.0100 / $1.2600 Buy Now

Part Details for TPS2024P

TPS2024P CAD Models

  • Part Symbol

    Part Symbol

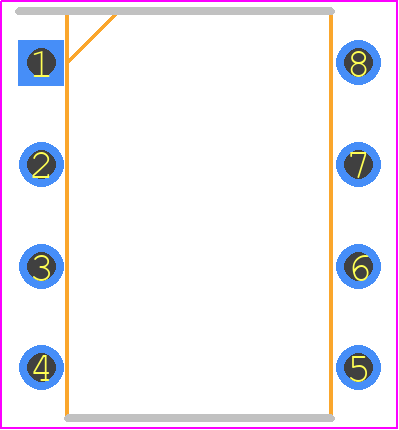

  • Footprint
