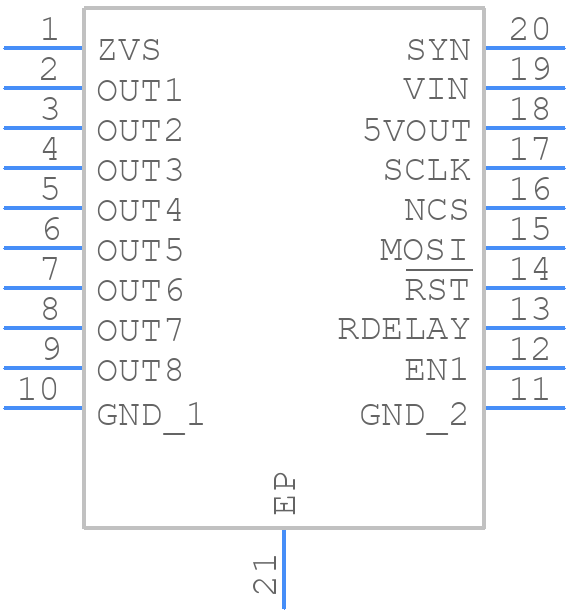

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPL9201PWP by Texas Instruments
Results Overview of TPL9201PWP by Texas Instruments
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
TPL9201PWP Information
TPL9201PWP by Texas Instruments is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for TPL9201PWP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-TPL9201PWP-ND
|
DigiKey | IC PWR DRVR N-CHAN 1:8 20HTSSOP Min Qty: 1 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT |
30934 In Stock |
|
$1.0900 | Buy Now |
|
DISTI #
TPL9201PWP-ND
|
DigiKey | IC PWR DRVR N-CHAN 1:8 20HTSSOP Min Qty: 1 Lead time: 12 Weeks Container: Tube |
197 In Stock |
|
$1.0935 / $1.8700 | Buy Now |
|
DISTI #
595-TPL9201PWP
|
Mouser Electronics | Gate Drivers 8-Channel Relay Driv er A 595-TPL9201PWPR RoHS: Compliant | 60 |
|
$0.9140 / $1.8700 | Buy Now |
|
DISTI #
86295783
|
Verical | 8-CHANNEL RELAY DRIVER WITH INTEGRATED 5-V LDO AND ZERO-VOLT DETECTION RoHS: Compliant Min Qty: 286 Package Multiple: 1 Date Code: 1401 | Americas - 10710 |
|
$0.8138 / $1.3125 | Buy Now |
|
DISTI #
86290708
|
Verical | 8-CHANNEL RELAY DRIVER WITH INTEGRATED 5-V LDO AND ZERO-VOLT DETECTION RoHS: Compliant Min Qty: 286 Package Multiple: 1 Date Code: 1101 | Americas - 9660 |
|
$0.8138 / $1.3125 | Buy Now |
|
DISTI #
86291601
|
Verical | 8-CHANNEL RELAY DRIVER WITH INTEGRATED 5-V LDO AND ZERO-VOLT DETECTION RoHS: Compliant Min Qty: 286 Package Multiple: 1 Date Code: 1001 | Americas - 5394 |
|
$0.8138 / $1.3125 | Buy Now |
|
DISTI #
86291867
|
Verical | 8-CHANNEL RELAY DRIVER WITH INTEGRATED 5-V LDO AND ZERO-VOLT DETECTION RoHS: Compliant Min Qty: 286 Package Multiple: 1 Date Code: 0701 | Americas - 4120 |
|
$0.8138 / $1.3125 | Buy Now |
|
DISTI #
86290294
|
Verical | 8-CHANNEL RELAY DRIVER WITH INTEGRATED 5-V LDO AND ZERO-VOLT DETECTION RoHS: Compliant Min Qty: 286 Package Multiple: 1 Date Code: 1301 | Americas - 1050 |
|
$0.8138 / $1.3125 | Buy Now |
|
|
Rochester Electronics | 8-Channel Relay Driver with Integrated 5-V Ldo and Zero-Volt Detection, HTSSOP-20 RoHS: Compliant Status: Active Min Qty: 1 | 30934 |
|
$0.6510 / $1.0500 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 19512 |
|
RFQ |
Part Details for TPL9201PWP
TPL9201PWP CAD Models
TPL9201PWP Part Data Attributes
|
|
TPL9201PWP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPL9201PWP
Texas Instruments
24-V, 8-ch NMOS low-side driver with 5-V LDO and zero-Volt detect 20-HTSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | HTSSOP-20 | |
| Pin Count | 20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 6.5 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.15 A | |
| Output Voltage-Max | 16.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Equivalence Code | TSSOP20,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max (Isup) | 5 mA | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 7 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for TPL9201PWP
This table gives cross-reference parts and alternative options found for TPL9201PWP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPL9201PWP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPL9201PWPRG4 | Texas Instruments | Check for Price | 8-Channel Relay Driver with Integrated 5V LDO and Zero-Volt Detection 20-HTSSOP -40 to 125 | TPL9201PWP vs TPL9201PWPRG4 |
TPL9201PWP Frequently Asked Questions (FAQ)
-
TI recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a separate power plane for the input and output voltages. Keep the input and output capacitors close to the device, and use short, wide traces for the power lines.
-
To ensure stability, use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, place a 1nF to 10nF capacitor between the VOUT and GND pins to filter out high-frequency noise.
-
Although the datasheet specifies a maximum input voltage of 5.5V, TI recommends limiting the input voltage to 5V to ensure reliable operation and prevent damage to the device.
-
The output voltage ripple can be calculated using the formula: ΔVOUT = (IOUT * ESL) / (COUT * fSW), where IOUT is the output current, ESL is the equivalent series inductance of the output capacitor, COUT is the output capacitance, and fSW is the switching frequency.
-
The EN (enable) pin is used to turn the device on and off. Connect the EN pin to a logic high (VIN or VOUT) to enable the device, and to a logic low (GND) to disable it. Use a pull-down resistor to ensure the device is disabled during power-up and power-down.
