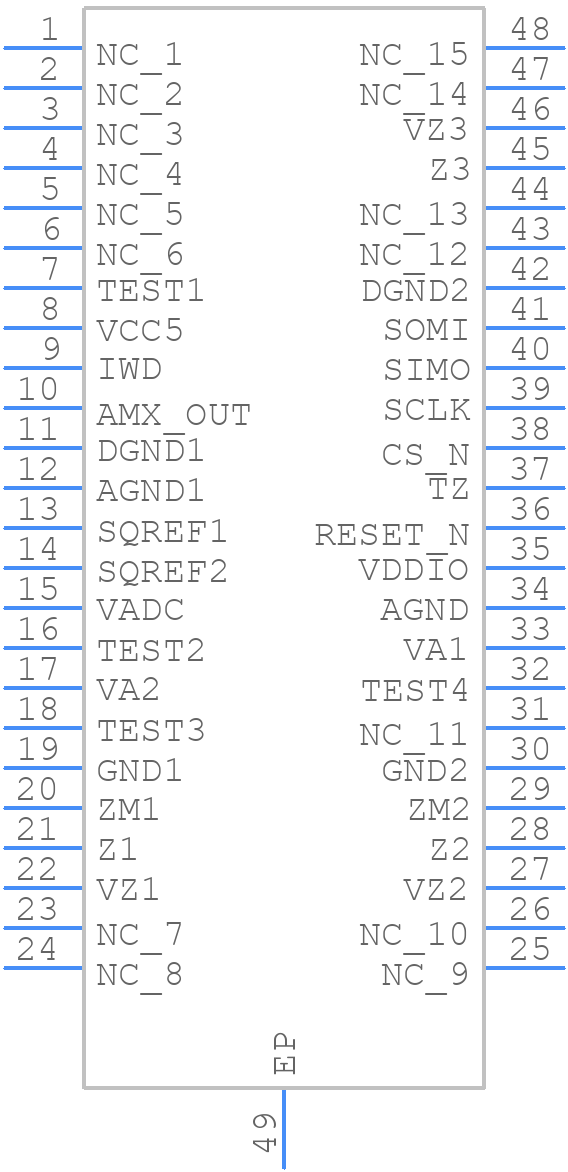

Part Symbol
-

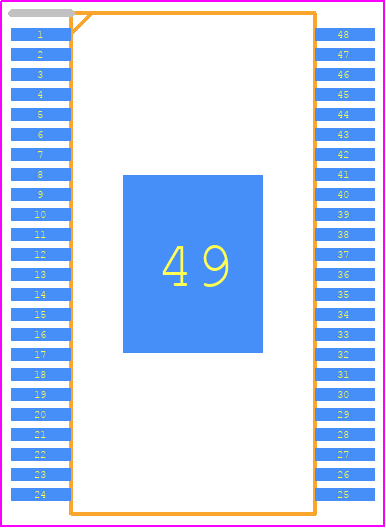

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPIC71002TDCARQ1 by Texas Instruments
Results Overview of TPIC71002TDCARQ1 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TPIC71002TDCARQ1 Information
TPIC71002TDCARQ1 by Texas Instruments is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for TPIC71002TDCARQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-TPIC71002TDCARQ1
|
Mouser Electronics | Interface - Specialized AC Two Ch Squib Driv er RoHS: Compliant | 1890 |
|
$3.1900 / $5.3700 | Buy Now |
|
DISTI #
86291862
|
Verical | Automotive AEC-Q100 48-Pin HTSSOP EP T/R RoHS: Compliant Min Qty: 110 Package Multiple: 1 Date Code: 1701 | Americas - 3405 |
|
$2.8875 / $3.4375 | Buy Now |
Part Details for TPIC71002TDCARQ1
TPIC71002TDCARQ1 CAD Models
TPIC71002TDCARQ1 Part Data Attributes
|
|
TPIC71002TDCARQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPIC71002TDCARQ1
Texas Instruments
Automotive Catalog Two-Channel Squib Driver 48-HTSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | HTSSOP-48 | |
| Pin Count | 48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | R-PDSO-G48 | |
| JESD-609 Code | e4 | |
| Length | 12.5 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.2 mm | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6.1 mm |
TPIC71002TDCARQ1 Frequently Asked Questions (FAQ)
-
The maximum current rating for each output channel is 1.5A, but it's recommended to derate the current to 1A or less for reliable operation.
-
Proper thermal management can be achieved by providing a heat sink, ensuring good airflow, and keeping the device away from heat sources. The thermal pad on the bottom of the package should be connected to a copper plane on the PCB for optimal heat dissipation.
-
The recommended input voltage range is 4.5V to 5.5V, but the device can operate with an input voltage as low as 4V. However, the output voltage regulation may not be as accurate at lower input voltages.
-
The output voltage can be configured by connecting the VSENSE pin to a resistive divider network that sets the desired output voltage. The datasheet provides a formula to calculate the required resistor values.
-
The EN (Enable) pin is used to enable or disable the device. When the EN pin is pulled low, the device is in shutdown mode, and the output voltage is disabled. When the EN pin is pulled high, the device is enabled, and the output voltage is regulated to the set value.
