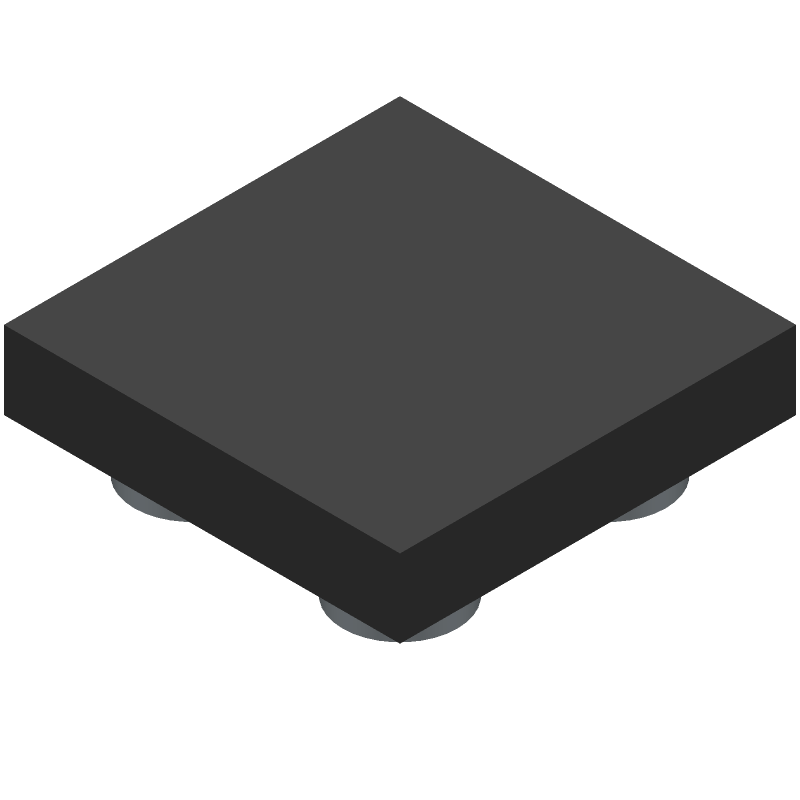

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPD2E007YFMRG4 by Texas Instruments
Results Overview of TPD2E007YFMRG4 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TPD2E007YFMRG4 Information
TPD2E007YFMRG4 by Texas Instruments is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for TPD2E007YFMRG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
Vyrian | Diodes | 1924 |
|
RFQ |
Part Details for TPD2E007YFMRG4
TPD2E007YFMRG4 CAD Models
TPD2E007YFMRG4 Part Data Attributes
|
|
TPD2E007YFMRG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPD2E007YFMRG4
Texas Instruments
Dual 10-pF, ±13-V, ±8-kV ESD protection diode for AC Signal Data Interfaces 4-DSLGA -40 to 85
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | LGA | |
| Package Description | 0.8 MM X 0.8 MM, GREEN, DSLGA-4 | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | Texas Instruments | |
| Breakdown Voltage-Min | 14 V | |
| Clamping Voltage-Max | 20 V | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | S-XBCC-N4 | |
| JESD-609 Code | e1 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 0.27 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61000-4-2, 4-5 | |
| Reverse Current-Max | 0.05 µA | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | NO LEAD | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
TPD2E007YFMRG4 Frequently Asked Questions (FAQ)
-
A good PCB layout for TPD2E007YFMRG4 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the protected IC. Additionally, it's recommended to use a common ground point for the device and the protected IC.
-
The recommended capacitor value for the VCC pin of TPD2E007YFMRG4 is 1-10uF, depending on the specific application and noise requirements. A larger capacitor value can help filter out noise, but may increase the device's turn-on time.
-
The TPD2E007YFMRG4 can handle surge currents up to 100A, depending on the duration and waveform of the surge. However, it's recommended to use a TVS diode or other protection device in conjunction with TPD2E007YFMRG4 for high-surge applications.
-
Yes, TPD2E007YFMRG4 is suitable for protecting high-speed data lines, such as USB, HDMI, and Ethernet. However, it's recommended to use a device with a lower capacitance value to minimize signal distortion and attenuation.
-
To ensure proper soldering of TPD2E007YFMRG4, use a soldering iron with a temperature of 260°C (500°F) or less, and apply a small amount of solder paste to the pads. Avoid applying excessive heat or pressure, which can damage the device.
