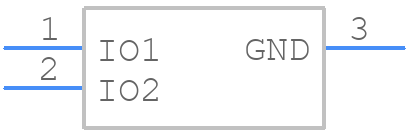

Part Symbol
-
Footprint
-

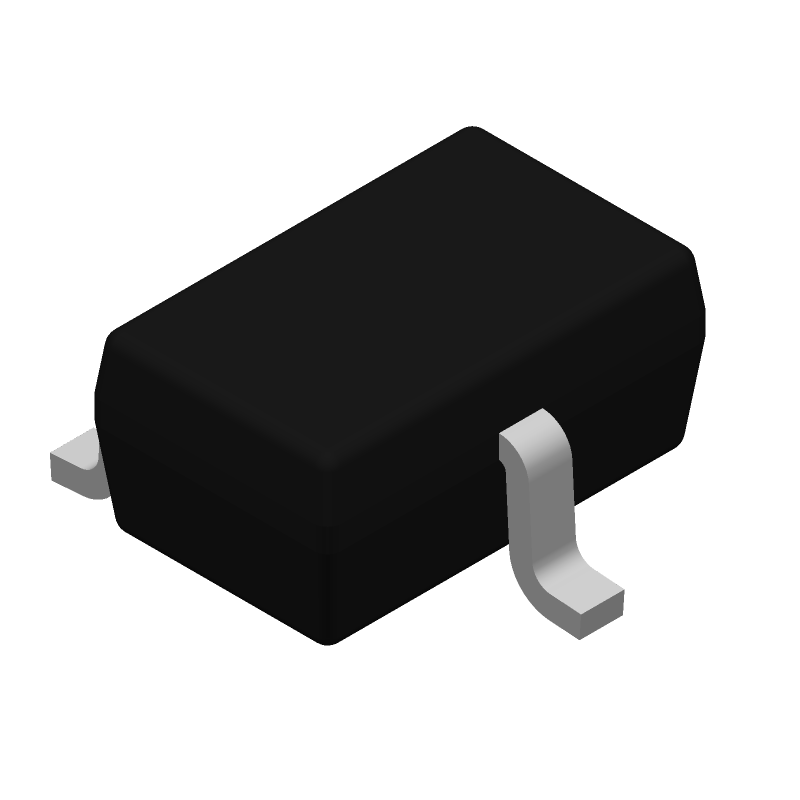

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TPD2E007DCKR by Texas Instruments
Results Overview of TPD2E007DCKR by Texas Instruments
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TPD2E007DCKR Information
TPD2E007DCKR by Texas Instruments is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for TPD2E007DCKR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AH1548
|
Newark | Esd Protection Array, 2Ch, Sc-70, Clamping Voltage Vc Max:-, Diode Case Style:Sc-70, No. Of Pins:3Pins, Operating Voltage:-, Power Dissipation Pd:218Mw, Product Range:Tpd2E Series, Automotive Qualification Standard:-, Svhc:No Svhc Rohs Compliant: Yes |Texas Instruments TPD2E007DCKR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.6660 / $0.8610 | Buy Now |
|
DISTI #
296-25281-1-ND
|
DigiKey | TVS DIODE 13VWM SC703 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
21844 In Stock |
|
$0.2425 / $0.8200 | Buy Now |
|
DISTI #
595-TPD2E007DCKR
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 2-Channel ESD RoHS: Compliant | 11093 |
|
$0.2420 / $0.8200 | Buy Now |
|
DISTI #
J56:1989_00587163
|
Arrow Electronics | ESD Suppressor Diode Array Bi-Dir 13V 3-Pin SC-70 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks | Europe - 57000 |
|
$0.2488 | Buy Now |
|
DISTI #
V72:2272_07410271
|
Arrow Electronics | ESD Suppressor Diode Array Bi-Dir 13V 3-Pin SC-70 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2332 Container: Cut Strips | Americas - 1 |
|
$0.2488 / $0.4401 | Buy Now |
|
|
Bristol Electronics | 2006 |
|
RFQ | ||
|
|
Quest Components | TRANS VOLTAGE SUPPRESSOR DIODE, 13V V(RWM), UNIDIRECTIONAL, 4 ELEMENT, SILICON | 63435 |
|
$0.3750 / $1.2500 | Buy Now |
|
DISTI #
TPD2E007DCKR
|
TME | Diode: TVS array, 14V, unidirectional, SC70, Ch: 2, ESD Min Qty: 1 | 0 |
|
$0.3050 / $0.8180 | RFQ |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
NexGen Digital | 33 |
|
RFQ |
Part Details for TPD2E007DCKR
TPD2E007DCKR CAD Models
TPD2E007DCKR Part Data Attributes
|
|
TPD2E007DCKR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPD2E007DCKR
Texas Instruments
Dual 10-pF, ±13-V, ±8-kV ESD protection diode for AC Signal Data Interfaces 3-SC70 -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SC-70 | |
| Package Description | GREEN, PLASTIC, SC-70, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | Texas Instruments | |
| Breakdown Voltage-Min | 14 V | |
| Clamping Voltage-Max | 20 V | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e4 | |
| Moisture Sensitivity Level | 2 | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 0.218 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61000-4-2, 4-5 | |
| Reverse Current-Max | 0.05 µA | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for TPD2E007DCKR
This table gives cross-reference parts and alternative options found for TPD2E007DCKR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPD2E007DCKR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPD2E007YFMRG4 | Texas Instruments | Check for Price | Dual 10-pF, ±13-V, ±8-kV ESD protection diode for AC Signal Data Interfaces 4-DSLGA -40 to 85 | TPD2E007DCKR vs TPD2E007YFMRG4 |
| TPD2E007YFMTG4 | Texas Instruments | Check for Price | Dual 10-pF, ±13-V, ±8-kV ESD protection diode for AC Signal Data Interfaces 4-DSLGA -40 to 85 | TPD2E007DCKR vs TPD2E007YFMTG4 |
TPD2E007DCKR Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the TPD2E007DCKR is -40°C to 125°C.
-
To prevent damage, ensure that the PCB assembly process follows the recommended handling and storage procedures, and that the device is not exposed to excessive heat, moisture, or mechanical stress.
-
Yes, the TPD2E007DCKR is suitable for high-speed data lines, such as USB, HDMI, and DisplayPort, due to its low capacitance and high bandwidth.
-
Place the TPD2E007DCKR as close as possible to the protected IC, and ensure that the PCB layout minimizes signal routing and reduces noise coupling.
-
Select the correct variant based on the specific voltage and current requirements of your application, as well as the desired level of ESD protection.
