Part Details for TP5KP17A by Littelfuse Inc
Results Overview of TP5KP17A by Littelfuse Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TP5KP17A Information
TP5KP17A by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for TP5KP17A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
34AC6910
|
Newark | Tvs Axial Hi-Power 5Kw Aeq101 Tr/ Tr |Littelfuse TP5KP17A RoHS: Not Compliant Min Qty: 800 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.9680 / $1.2400 | Buy Now |
|
DISTI #
F7657CT-ND
|
DigiKey | TVS DIODE 17VWM 27.6VC P600 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
678 In Stock |
|
$0.9375 / $2.0000 | Buy Now |
|
DISTI #
576-TP5KP17A
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 17V 5kW UNI-DIR TP5KP AEC-Q101 RoHS: Compliant | 440 |
|
$0.9370 / $2.0000 | Buy Now |
|
DISTI #
V79:2366_27060829
|
Arrow Electronics | TVS Diode Single Uni-Dir 17V 5KW Automotive AEC-Q101 2-Pin Case P-600 T/R Min Qty: 1 Package Multiple: 1 Date Code: 1706 | Americas - 763 |
|
$1.1910 | Buy Now |
|
DISTI #
64974117
|
Verical | TVS Diode Single Uni-Dir 17V 5KW Automotive AEC-Q101 2-Pin Case P-600 T/R Min Qty: 5 Package Multiple: 1 Date Code: 1706 | Americas - 763 |
|
$1.1910 | Buy Now |
Part Details for TP5KP17A

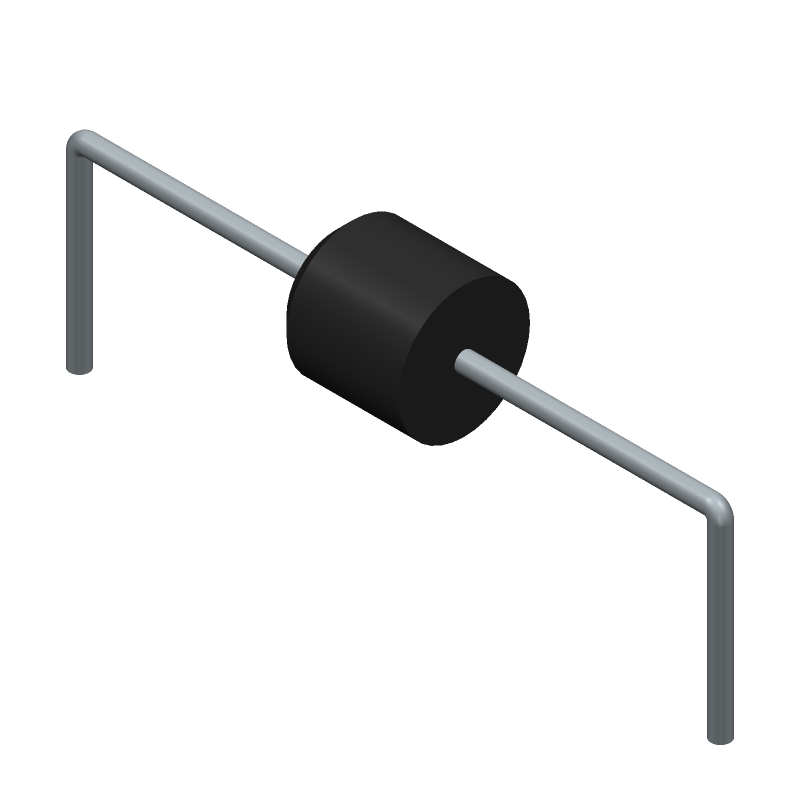

TP5KP17A CAD Models
TP5KP17A Part Data Attributes
|
|
TP5KP17A
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
TP5KP17A
Littelfuse Inc
Trans Voltage Suppressor Diode, 5000W, 17V V(RWM), Unidirectional, 1 Element, Silicon,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Date Of Intro | 2016-08-03 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY, UL RECOGNIZED | |
| Breakdown Voltage-Max | 20.9 V | |
| Breakdown Voltage-Min | 18.9 V | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Non-rep Peak Rev Power Dis-Max | 5000 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 8 W | |
| Reference Standard | AEC-Q101; IEC-61000-4-2, 4-4 | |
| Rep Pk Reverse Voltage-Max | 17 V | |
| Surface Mount | NO | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
