Switches / Pushbutton Switches / TP11SHZQE
Datasheets

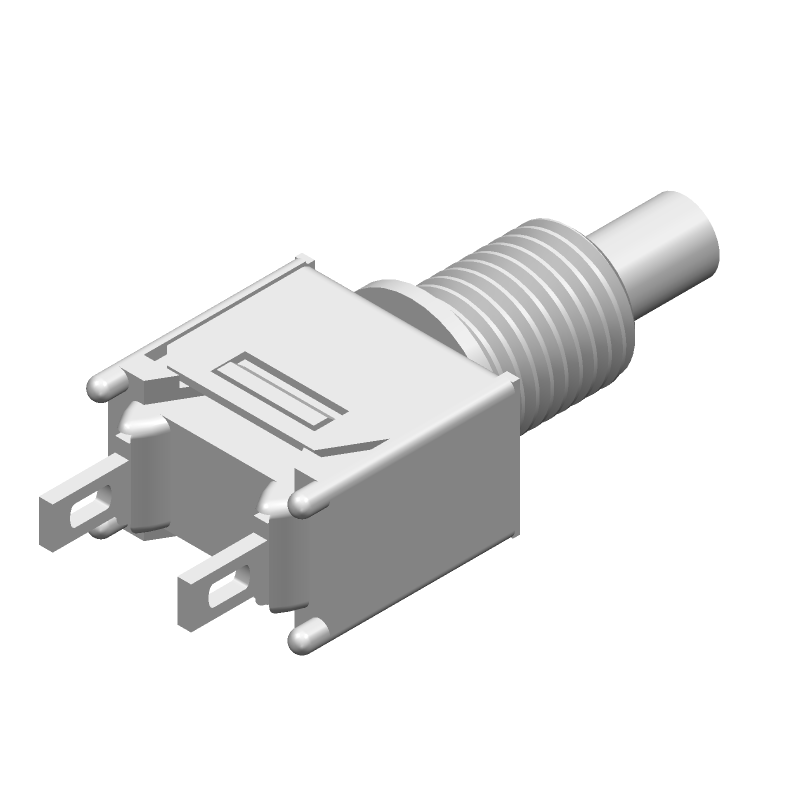

TP11SHZQE by:

PUSHBUTTON SWITCH, SPST, MOMENTARY, 1A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT

Part Details for TP11SHZQE by C&K

Results Overview of TP11SHZQE by C&K

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TP11SHZQE Information

TP11SHZQE by C&K is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for TP11SHZQE

Part # Distributor Description Stock Price Buy
DISTI # 79X5914
Newark Switch Push Spst-No, Switch Operation:Off-(On), Contact Configuration:Spst, Contact Voltage Ac Nom:120V, Contact Voltage Dc Nom:28V, Contact Current Max:1A, Switch Terminals:Solder Lug, Product Range:Tp Series, Svhc:Lead Rohs Compliant: Yes |C&k Components TP11SHZQE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 14
  • 1 $8.6700
  • 10 $7.6500
  • 25 $6.9800
  • 50 $6.7700
  • 100 $6.5700
$6.5700 / $8.6700 Buy Now
DISTI # CKN4001-ND
DigiKey SWITCH PUSH SPST-NO 1A 120V Min Qty: 1 Lead time: 13 Weeks Container: Bulk 1073
In Stock
  • 1 $7.9900
  • 10 $6.8960
  • 25 $6.5028
  • 50 $6.2198
  • 200 $5.6888
  • 400 $5.4399
  • 600 $5.3025
$5.3025 / $7.9900 Buy Now
DISTI # 611-TP11-002
Mouser Electronics Pushbutton Switches OFF-MOM SPST SLDR RoHS: Compliant 203
  • 1 $6.6800
  • 10 $6.3100
  • 25 $5.5800
  • 100 $5.5700
  • 200 $5.3100
  • 1,000 $5.3000
$5.3000 / $6.6800 Buy Now
DISTI # 70128503
RS Switch, P/B, Sealed, SPST-NO, OFF-MOM,.115" Round Plunger,1A,120VAC,28VDC, Solder Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Container: Bulk 197
  • 1 $6.8900
  • 5 $6.2000
  • 10 $5.9200
  • 20 $5.3700
$5.3700 / $6.8900 Buy Now
Future Electronics TP Series Tiny SPST Off-Momentary Solder Lug Pushbutton Switch RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Container: Bulk 160
Bulk
  • 1 $5.5300
  • 5 $5.4800
  • 20 $5.4100
  • 40 $5.3800
  • 100 $5.3000
$5.3000 / $5.5300 Buy Now
Future Electronics   RoHS: Compliant pbFree: Yes Min Qty: 10 Package Multiple: 1 0
  • 10 $7.0700
$7.0700 Buy Now
DISTI # 54435282
Verical Switch Push Button OFF Mom SPST Round Plunger 1A 120VAC 28VDC Momentary Panel Mount Solder Lug Bulk Min Qty: 10 Package Multiple: 5 Date Code: 1805 Americas - 964
  • 10 $8.3590
  • 25 $6.9550
  • 50 $6.8120
  • 200 $6.7210
  • 400 $6.6820
$6.6820 / $8.3590 Buy Now
DISTI # 87357960
Verical Switch Push Button OFF Mom SPST Round Plunger 1A 120VAC 28VDC Momentary Panel Mount Solder Lug Bulk Min Qty: 11 Package Multiple: 1 Americas - 231
  • 11 $6.5800
  • 20 $5.3900
  • 25 $5.1660
  • 200 $4.8580
$4.8580 / $6.5800 Buy Now
DISTI # 16495921
Verical Switch Push Button OFF Mom SPST Round Plunger 1A 120VAC 28VDC Momentary Panel Mount Solder Lug Bulk Min Qty: 9 Package Multiple: 1 Americas - 200
  • 1 $7.8000
  • 50 $6.8000
  • 100 $6.4600
  • 200 $5.8900
$5.8900 / $7.8000 Buy Now
Quest Components PUSHBUTTON SWITCH,STRAIGHT,SPST,OFF-(ON),SOLDER TERMINAL 480
  • 1 $11.4750
  • 142 $6.3113
  • 318 $5.7375
$5.7375 / $11.4750 Buy Now
Quest Components PUSHBUTTON SWITCH,STRAIGHT,SPST,OFF-(ON),SOLDER TERMINAL 89
  • 1 $11.4750
  • 10 $7.6500
  • 34 $7.0763
$7.0763 / $11.4750 Buy Now
Quest Components PUSHBUTTON SWITCH,STRAIGHT,SPST,OFF-(ON),SOLDER TERMINAL 61
  • 1 $11.4750
  • 10 $7.6500
  • 34 $7.0763
$7.0763 / $11.4750 Buy Now
Quest Components PUSHBUTTON SWITCH,STRAIGHT,SPST,OFF-(ON),SOLDER TERMINAL 20
  • 1 $13.5000
  • 3 $12.6000
  • 7 $12.0000
$12.0000 / $13.5000 Buy Now
Quest Components PUSHBUTTON SWITCH,STRAIGHT,SPST,OFF-(ON),SOLDER TERMINAL 12
  • 1 $10.5000
  • 2 $7.0000
  • 5 $5.2500
$5.2500 / $10.5000 Buy Now
DISTI # TP11SHZQE
TTI Pushbutton Switches OFF-MOM SPST SLDR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Kit Americas - 1592
In Stock
  • 1 $6.6300
  • 5 $6.0600
  • 10 $5.9000
  • 25 $5.6300
  • 50 $5.4600
  • 400 $5.3500
  • 1,000 $5.2400
$5.2400 / $6.6300 Buy Now
Future Electronics TP Series Tiny SPST Off-Momentary Solder Lug Pushbutton Switch Min Qty: 1 Package Multiple: 1 160
null
  • 1 $5.5300
  • 5 $5.4800
  • 20 $5.4100
  • 40 $5.3800
  • 100 $5.3000
$5.3000 / $5.5300 Buy Now
DISTI # TP11SHZQE
TME Switch: push-button, Pos: 2, SPST, 0.4A/20VAC, 0.4A/20VDC, OFF-(ON) Min Qty: 1 291
  • 1 $4.1000
  • 5 $3.8500
  • 25 $3.6900
  • 50 $3.6600
  • 100 $3.6100
$3.6100 / $4.1000 Buy Now
DISTI # TP11SHZQE
IBS Electronics PUSHBUTTON SWITCH SPST MOMENTARY 1A 28VDC SOLDER TERMINAL PANEL MOUNT-THREADED Min Qty: 10 Package Multiple: 1 1324
  • 5 $7.1240
  • 10 $7.1890
  • 20 $7.0330
  • 40 $6.9940
  • 100 $6.8900
  • 600 $6.6560
  • 1,000 $6.6170
  • 2,600 $6.5910
$6.5910 / $7.1890 Buy Now
DISTI # 000000000000021352
Sager Pushbutton Switches OFF-MOM SPST SLDR Min Qty: 200 15
  • 200 $5.8900
  • 400 $5.6600
$5.6600 / $5.8900 Buy Now
New Advantage Corporation TP Series Tiny SPST Off-Momentary Solder Lug Pushbutton Switch RoHS: Compliant Min Qty: 1 Package Multiple: 1 200
  • 22 $7.7800
$7.7800 Buy Now

Part Details for TP11SHZQE

TP11SHZQE Part Data Attributes

Parametric Data
TP11SHZQE C&K
Buy Now Datasheet
Compare Parts:
TP11SHZQE C&K PUSHBUTTON SWITCH, SPST, MOMENTARY, 1A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer C & K COMPONENTS LLC
Package Description ROHS COMPLIANT
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8536.50.90.31
Samacsys Manufacturer C & K COMPONENTS
Actuator Length 0.155 inch
Actuator Material POLYETHYLENE POLYESTER
Actuator Type PLUNGER
Additional Feature APPROVAL: UL
Body Breadth 5.08 mm
Body Height 8.64 mm
Body Length or Diameter 8.13 mm
Bushing Length 0.22 inch
Bushing Type 10-48UNS-2A
Center Contact Material COPPER ALLOY
Center Contact Plating SILVER
Contact (AC) Max Rating R Load 1A@120VAC
Contact Current(AC)-Max 1 A
Contact Current(DC)-Max 1 A
Contact (DC) Max Rating R Load 1A@28VDC
Contact Function OFF-(ON)
Contact Resistance 0.02 mΩ
Contact Voltage(AC)-Max 120 V
Contact Voltage(DC)-Max 28 V
Dielectric Withstand Volts 1000VAC V
Electrical Life 60000 Cycle(s)
End Contact Material COIN SILVER
End Contact Plating SILVER
Housing Material STAINLESS STEEL
Illumination NON-ILLUMINATED
Insulation Resistance 1000000000 Ω
Insulator Material GLASS FILLED POLYAMIDE/DIALLYLPHTHALATE
JESD-609 Code e4
Mounting Feature PANEL MOUNT-THREADED
Operating Temperature-Max 85 °C
Operating Temperature-Min -35 °C
Sealing EPOXY TERMINAL SEALED
Solderability MIL-STD
Surface Mount NO
Switch Action MOMENTARY
Switch Function SPST
Switch Type MINIATURE SWITCH
Terminal Finish SILVER
Terminal Length 0.53 inch
Terminal Material COPPER ALLOY
Termination Type SOLDER

Alternate Parts for TP11SHZQE

This table gives cross-reference parts and alternative options found for TP11SHZQE. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TP11SHZQE, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
8-1437572-3 TE Connectivity $27.8906 Pushbutton Switch, SPST, Momentary, 1A, 28VDC, Wire Terminal, Panel Mount TP11SHZQE vs 8-1437572-3
8-1437572-2 TE Connectivity Check for Price Pushbutton Switch, SPST, Momentary, 1A, 28VDC, Wire Terminal, Panel Mount TP11SHZQE vs 8-1437572-2

TP11SHZQE Related Parts

TP11SHZQE Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the TP11SHZQE is between 250°C to 260°C for a maximum of 5 seconds.

  • Handle the TP11SHZQE in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and avoid touching the pins or components.

  • The TP11SHZQE can operate up to 100 MHz, but it's recommended to consult the datasheet for specific frequency-related characteristics.

  • The TP11SHZQE is rated for operation up to 85°C, but it's recommended to derate the voltage and current ratings for temperatures above 70°C.

  • Use a soft brush and a mild detergent to clean the TP11SHZQE, and avoid using harsh chemicals or abrasive materials that can damage the component.
