TP11SH9AVBE Information
TP11SH9AVBE by C&K is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for TP11SH9AVBE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79X5916
|
Newark | Switch Push Spst-No, Switch Operation:Off-(On), Contact Configuration:Spst, Contact Voltage Ac Nom:20V, Contact Voltage Dc Nom:20V, Contact Current Max:-, Switch Terminals:Pc Pin, Product Range:Tp Series, Svhc:Lead (15-Jan-2019), Rohs Compliant: Yes |C&k Components TP11SH9AVBE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$7.2400 / $7.5300 | Buy Now |
|
DISTI #
CKN1725-ND
|
DigiKey | SWITCH PUSH SPST-NO 0.4VA 20V Min Qty: 1 Lead time: 13 Weeks Container: Tray | Temporarily Out of Stock |
|
$6.3950 / $9.5000 | Buy Now |
|
DISTI #
611-TP11-009
|
Mouser Electronics | Pushbutton Switches OFF-(ON) SPST R/A PC RoHS: Compliant | 287 |
|
$6.1400 | Buy Now |
|
|
Future Electronics | TP Series Tiny SPST Off-Momentary Right Angle Through Hole Pushbutton Switch RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Container: Tray | 1950Tray |
|
$6.5500 / $6.8800 | Buy Now |
|
|
Future Electronics | RoHS: Compliant pbFree: Yes Min Qty: 10 Package Multiple: 1 | 0 |
|
$8.5400 | Buy Now |
|
DISTI #
55957274
|
Verical | Switch Push Button OFF Mom SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Thru-Hole PC Pins Bulk Min Qty: 10 Package Multiple: 5 Date Code: 2005 | Americas - 2310 |
|
$2.9787 / $7.7215 | Buy Now |
|
DISTI #
88795117
|
Verical | Switch Push Button OFF Mom SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Thru-Hole PC Pins Bulk Min Qty: 80 Package Multiple: 80 Date Code: 2511 | Americas - 1040 |
|
$8.3997 / $10.0000 | Buy Now |
|
DISTI #
71210915
|
Verical | Switch Push Button OFF Mom SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Thru-Hole PC Pins Bulk Min Qty: 7 Package Multiple: 1 | Americas - 70 |
|
$8.7600 / $10.1500 | Buy Now |
|
|
Quest Components | PUSHBUTTON SWITCH, SPST, MOMENTARY, 0.02A, 20VDC, SOLDER TERMINAL, THROUGH HOLE-RIGHT ANGLE | 40 |
|
$6.0000 / $9.0000 | Buy Now |
|
|
Quest Components | PUSHBUTTON SWITCH, SPST, MOMENTARY, 0.02A, 20VDC, SOLDER TERMINAL, THROUGH HOLE-RIGHT ANGLE | 27 |
|
$6.6488 / $13.2975 | Buy Now |
Part Details for TP11SH9AVBE

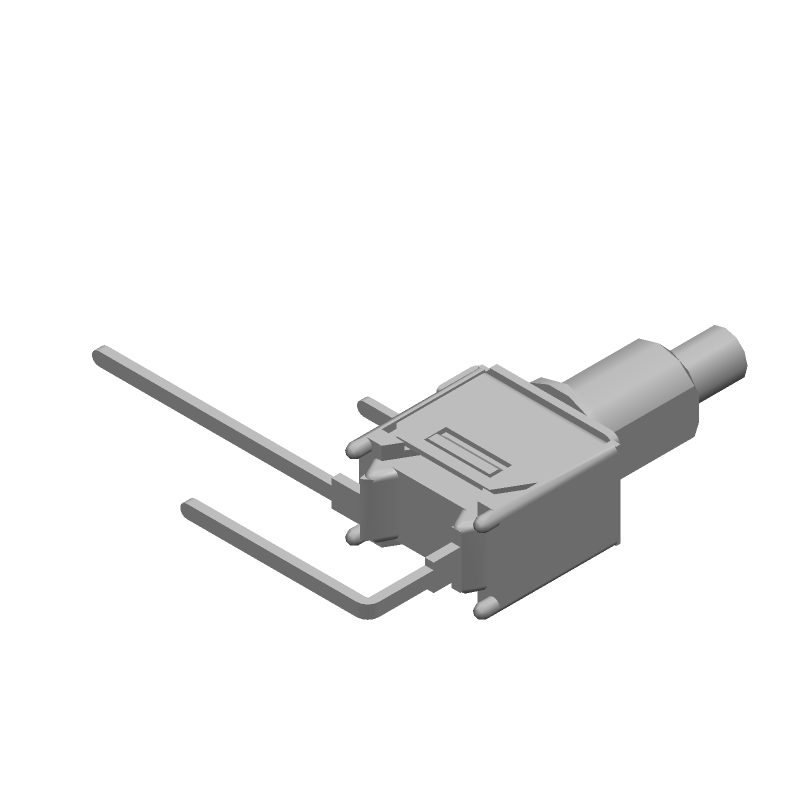

TP11SH9AVBE CAD Models
TP11SH9AVBE Part Data Attributes
|
|
TP11SH9AVBE
C&K
Buy Now
Datasheet
|
Compare Parts:
TP11SH9AVBE
C&K
PUSHBUTTON SWITCH, SPST, MOMENTARY, 0.02A, 20VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | C & K COMPONENTS LLC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.31 | |
| Samacsys Manufacturer | C & K COMPONENTS | |
| Actuator Length | 0.155 inch | |
| Actuator Material | POLYETHYLENE POLYESTER | |
| Actuator Type | PLUNGER | |
| Body Breadth | 8.94 mm | |
| Body Height | 8.77 mm | |
| Body Length or Diameter | 5.08 mm | |
| Bushing Length | 0.22 inch | |
| Bushing Type | UNTHREADED | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | GOLD OVER NICKEL | |
| Contact (AC) Max Power Rating R Load | 0.4VA@20VAC | |
| Contact (AC) Max Rating R Load | 0.02A@20VAC | |
| Contact Current(AC)-Max | 0.02 A | |
| Contact Current(DC)-Max | 0.02 A | |
| Contact (DC) Max Rating R Load | 0.02A@20VDC | |
| Contact Function | OFF-(ON) | |
| Contact Resistance | 0.02 mΩ | |
| Contact Voltage(AC)-Max | 20 V | |
| Contact Voltage(DC)-Max | 20 V | |
| Dielectric Withstand Volts | 1000VAC V | |
| Electrical Life | 60000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | GOLD OVER NICKEL | |
| Housing Material | STAINLESS STEEL | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | GLASS FILLED POLYAMIDE/DIALLYLPHTHALATE | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -35 °C | |
| PCB Hole Count | 3 | |
| Sealing | EPOXY TERMINAL SEALED | |
| Solderability | MIL-STD | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Switch Type | MINIATURE SWITCH | |
| Terminal Finish | GOLD OVER NICKEL | |
| Terminal Length | 0.13 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
