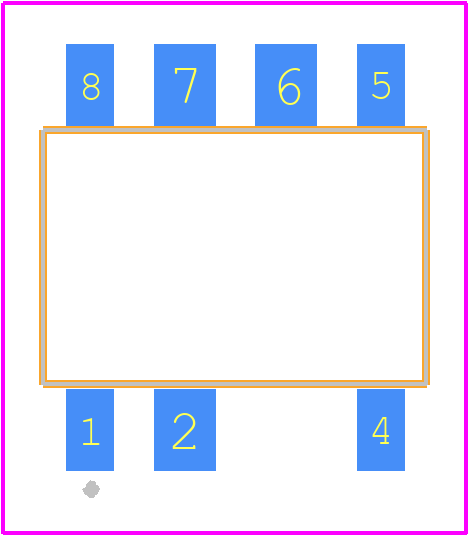

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TOP253GN-TL by Power Integrations
Results Overview of TOP253GN-TL by Power Integrations
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TOP253GN-TL Information
TOP253GN-TL by Power Integrations is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for TOP253GN-TL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10AH1366
|
Newark | Ac/Dc Conv, Flyback, -40 To 150Deg C, Input Voltage Min:85Vac, Input Voltage Max:265Vac, Ic Case/Package:Smd-8C, No. Of Pins:7Pins, Power Rating Max:15W, Topology:Flyback, Isolation:Isolated, Power Switch Voltage Rating:700V Rohs Compliant: Yes |Power Integrations TOP253GN-TL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 155 |
|
$1.0100 / $1.2200 | Buy Now |
|
DISTI #
596-1204-1-ND
|
DigiKey | IC OFFLINE SWITCH FLYBACK 8SMD Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2948 In Stock |
|
$0.7625 / $1.2200 | Buy Now |
|
DISTI #
TOP253GN-TL
|
Avnet Americas | AC/DC Converter, Flyback, 85V to 265V AC In, 15W, SMD-8C-7 - Tape and Reel (Alt: TOP253GN-TL) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.7152 / $0.7644 | Buy Now |
|
DISTI #
869-TOP253GN-TL
|
Mouser Electronics | AC/DC Converters Int Off-Line Switchr 15-25W PK 25-38W PK RoHS: Compliant | 106 |
|
$0.7620 / $1.2200 | Buy Now |
|
DISTI #
TOP253GN-TL
|
TME | IC: PMIC, AC/DC switcher,SMPS controller, 59.4÷72.6kHz, SMD-8C Min Qty: 1 | 476 |
|
$1.2900 / $1.8900 | Buy Now |
|
DISTI #
TOP253GN-TL
|
IBS Electronics | TOP253GN-TL by POWER INTEGRATIONS is a high-performance integrated offline switcher IC, featuring EcoSmart technology for energy efficiency, with a wide input voltage range and enhanced thermal performance. Min Qty: 1000 Package Multiple: 1 | 0 |
|
$0.9945 / $1.0400 | Buy Now |
|
DISTI #
TOP253GN-TL
|
EBV Elektronik | ACDC Converter Flyback 85V to 265V AC In 15W SMD8C7 (Alt: TOP253GN-TL) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for TOP253GN-TL
TOP253GN-TL CAD Models
TOP253GN-TL Part Data Attributes
|
|
TOP253GN-TL
Power Integrations
Buy Now
Datasheet
|
Compare Parts:
TOP253GN-TL
Power Integrations
Analog Circuit, 1 Func, CMOS, PDSO8, SMD-8/7
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | POWER INTEGRATIONS INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Power Integrations | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 4 | |
| Qualification Status | Not Qualified | |
| Terminal Finish | Matte Tin (Sn) |
TOP253GN-TL Frequently Asked Questions (FAQ)
-
A good PCB layout for the TOP253GN-TL should have a solid ground plane, keep the input and output traces separate, and use a star-configuration for the transformer connections. Refer to the Power Integrations application note AN-58 for more details.
-
To ensure reliable start-up and shutdown, make sure the input voltage is within the specified range, and the soft-start capacitor is properly sized. Also, ensure the output voltage is within the specified range during start-up and shutdown.
-
A common-mode choke and X-capacitors can be used to filter the input voltage. The choke should be rated for the maximum input current, and the X-capacitors should be rated for the maximum input voltage. Refer to the Power Integrations application note AN-16 for more details.
-
Optimize the transformer design by selecting the correct core material, wire size, and turns ratio. Use the Power Integrations transformer design tool or consult with a transformer expert to ensure optimal design.
-
Ensure good airflow around the device, and use a heat sink if necessary. The device has a thermal shutdown feature, but it's still important to keep the junction temperature below 150°C. Use thermal interface material and follow the recommended PCB layout to minimize thermal resistance.
