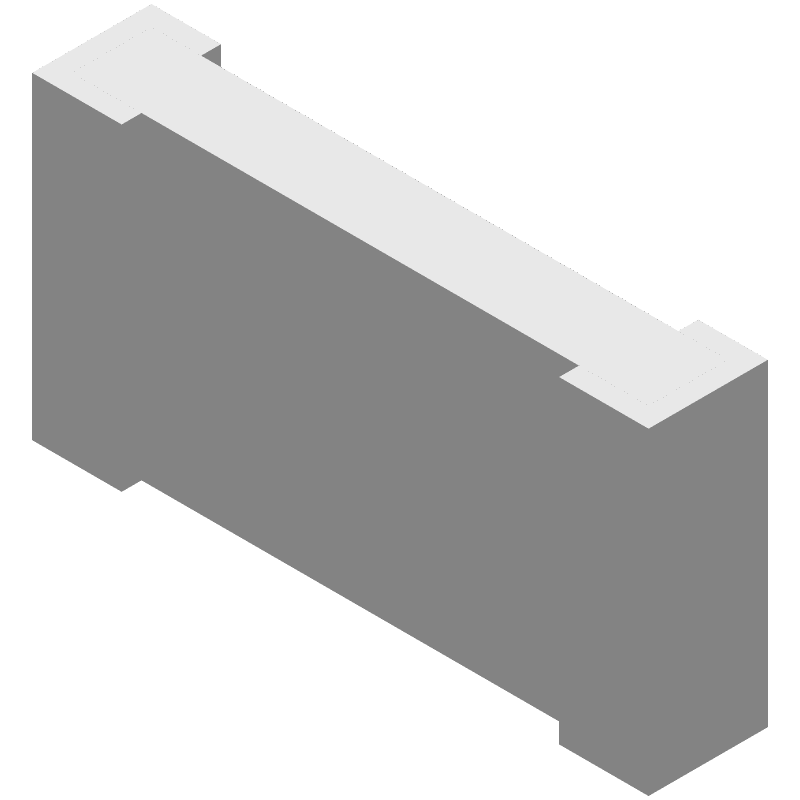

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TNPW12062K49BEEA by Vishay Intertechnologies
Results Overview of TNPW12062K49BEEA by Vishay Intertechnologies
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Energy and Power Systems
Robotics and Drones
TNPW12062K49BEEA Information
TNPW12062K49BEEA by Vishay Intertechnologies is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for TNPW12062K49BEEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33AK9478
|
Newark | Res, 2K49, Aec-Q200, 0.4W, 1206 Rohs Compliant: Yes |Vishay TNPW12062K49BEEA RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1230 |
|
$0.2050 / $0.3680 | Buy Now |
|
DISTI #
84R1916
|
Newark | Resistor, Thin Film, 2.49Kohm 250Mw 0.1%, Resistance:2.49Kohm, Resistance Tolerance:± 0.1%, Power Rating:400Mw, Resistor Case/Package:1206 [3216 Metric], Resistor Technology:Thin Film, Resistor Type:Sulfur Resistant Rohs Compliant: Yes |Vishay TNPW12062K49BEEA RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3040 / $0.3960 | Buy Now |
|
DISTI #
TNPW12062K49BEEA
|
Avnet Americas | SMD Chip Resistor, 2.49 kohm, ? 0.1%, 400 mW, 1206 [3216 Metric], Thin Film, Sulfur Resistant - Tape and Reel (Alt: TNPW12062K49BEEA) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.1471 / $0.1592 | Buy Now |
|
DISTI #
71-TNPW12062K49BEEA
|
Mouser Electronics | Thin Film Resistors - SMD 2.49Kohms .1% 25ppm RoHS: Compliant | 9335 |
|
$0.2120 / $0.6500 | Buy Now |
|
DISTI #
V72:2272_09301266
|
Arrow Electronics | Res Thin Film 1206 2.49K Ohm 0.1% 0.27W ±25ppm/°C Sulfur Resistant Pad SMD T/R Medical Automotive AEC-Q200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 1851 Container: Cut Strips | Americas - 12 |
|
$0.1784 / $0.2527 | Buy Now |
|
DISTI #
85949926
|
Verical | Res Thin Film 1206 2.49K Ohm 0.1% 0.27W ±25ppm/°C Sulfur Resistant Pad SMD T/R Medical Automotive AEC-Q200 RoHS: Compliant Min Qty: 176 Package Multiple: 1 Date Code: 2414 | Americas - 3450 |
|
$0.1950 | Buy Now |
|
DISTI #
TNPW12062K49BEEA
|
TTI | Thin Film Resistors - SMD 2.49Kohms .1% 25ppm RoHS: Compliant pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel | Americas - 0 |
|
$0.1510 / $0.1600 | Buy Now |
|
DISTI #
TNPW12062K49BEEA
|
IBS Electronics | RES THIN FILM 1206 2.49K OHM 0.1% 0.25W(1/4W) ±, 25PPM/C SULFUR RESISTANT PAD SMD AUTOMOTIVE MEDICAL T/R Min Qty: 5000 Package Multiple: 1 | 0 |
|
$0.2730 | Buy Now |
|
DISTI #
TNPW12062K49BEEA
|
Avnet Abacus | SMD Chip Resistor 249 kohm 01 400 mW 1206 3216 Metric Thin Film Sulfur Resistant (Alt: TNPW12062K49BEEA) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
TNPW12062K49BEEA
|
Chip One Stop | Passives RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 3450 |
|
$0.1950 / $0.2490 | Buy Now |
Part Details for TNPW12062K49BEEA
TNPW12062K49BEEA CAD Models
TNPW12062K49BEEA Part Data Attributes
|
|
TNPW12062K49BEEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
TNPW12062K49BEEA
Vishay Intertechnologies
Fixed Resistor, Thin Film, 0.25W, 2490ohm, 200V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR, RATED AC VOLTAGE (V): 200 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.55 mm | |
| Package Length | 3.2 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 1.6 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.27 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 2490 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | THIN FILM | |
| Temperature Coefficient | 25 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 0.1% | |
| Working Voltage | 200 V |
TNPW12062K49BEEA Frequently Asked Questions (FAQ)
-
The thermal resistance of the TNPW12062K49BEEA is 35°C/W, which is relatively low, making it suitable for high-power applications.
-
Yes, the TNPW12062K49BEEA is suitable for high-frequency applications due to its low inductance and high-frequency stability.
-
The maximum operating voltage of the TNPW12062K49BEEA is 200V, making it suitable for a wide range of applications.
-
Yes, the TNPW12062K49BEEA resistor is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The power rating of the TNPW12062K49BEEA is 1.2W, making it suitable for low-to-medium power applications.
