Resistors / Thin Film Resistors / TNPW12061K50BEEA
Datasheets
TNPW12061K50BEEA by:

Fixed Resistor, Thin Film, 0.25W, 1500ohm, 200V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Part Details for TNPW12061K50BEEA by Vishay Intertechnologies

Results Overview of TNPW12061K50BEEA by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Energy and Power Systems Robotics and Drones

TNPW12061K50BEEA Information

TNPW12061K50BEEA by Vishay Intertechnologies is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for TNPW12061K50BEEA

Part # Distributor Description Stock Price Buy
DISTI # 84R1904
Newark Resistor, Thin Film, 1.5Kohm, 250Mw 0.1%, Resistance:1.5Kohm, Resistance Tolerance:± 0.1%, Power Rating:250Mw, Resistor Case/Package:1206 [3216 Metric], Resistor Technology:Thin Film, Resistor Type:Sulfur Resistant Rohs Compliant: Yes |Vishay TNPW12061K50BEEA RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 5,000 $0.3960
  • 10,000 $0.3660
  • 20,000 $0.3410
  • 30,000 $0.3180
  • 50,000 $0.3040
$0.3040 / $0.3960 Buy Now
DISTI # 84R1903
Newark Res, Thin Film, 1K5, 0.1%, 0.25W, 1206, Resistance:1.5Kohm, Resistance Tolerance:± 0.1%, Power Rating:250Mw, Resistor Case/Package:1206 [3216 Metric], Resistor Technology:Thin Film, Resistor Type:Sulfur Resistant Rohs Compliant: Yes |Vishay TNPW12061K50BEEA RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 25 $0.4320
$0.4320 Buy Now
DISTI # TNPW12061K50BEEA
Avnet Americas SMD Chip Resistor, 1.5 kOhm, ? 0.1%, 400 mW, 1206 [3216 Metric], Thin Film, High Stability - Tape and Reel (Alt: TNPW12061K50BEEA) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 8 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.1592
  • 10,000 $0.1563
  • 20,000 $0.1543
  • 30,000 $0.1515
  • 40,000 $0.1471
$0.1471 / $0.1592 Buy Now
DISTI # 71-TNPW12061K50BEEA
Mouser Electronics Thin Film Resistors - SMD 1.5Kohsm .1% 25ppm RoHS: Compliant 0
  • 1 $0.6400
  • 10 $0.4580
  • 50 $0.3510
  • 100 $0.3110
  • 500 $0.2310
  • 1,000 $0.2030
  • 5,000 $0.2010
$0.2010 / $0.6400 Order Now
Future Electronics 1206 1.5K Ohms 0.1% 25PPM Thin Film Resistor RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 8 Weeks Container: Reel 5000
Reel
  • 5,000 $0.2100
$0.2100 Buy Now
DISTI # TNPW12061K50BEEA
TTI Thin Film Resistors - SMD 1.5Kohsm .1% 25ppm RoHS: Compliant pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel Americas - 15000
In Stock
  • 5,000 $0.1910
$0.1910 Buy Now
Future Electronics 1206 1.5K Ohms 0.1% 25PPM Thin Film Resistor Min Qty: 5000 Package Multiple: 5000 5000
null
  • 5,000 $0.2100
$0.2100 Buy Now
DISTI # TNPW12061K50BEEA
Avnet Abacus SMD Chip Resistor 15 kOhm 01 400 mW 1206 3216 Metric Thin Film High Stability (Alt: TNPW12061K50BEEA) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for TNPW12061K50BEEA

TNPW12061K50BEEA CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

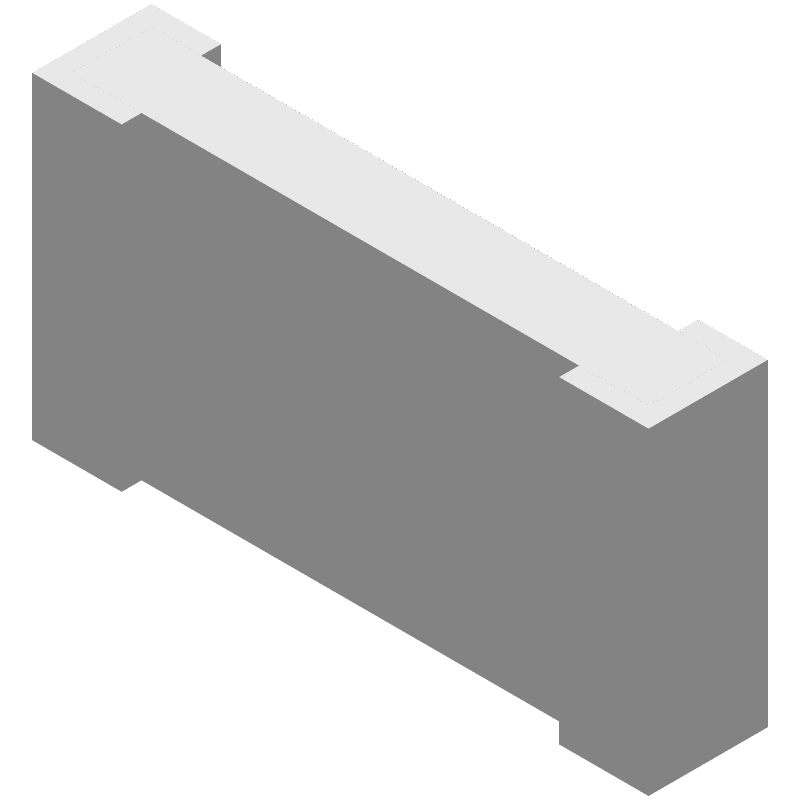

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TNPW12061K50BEEA Part Data Attributes

Parametric Data
TNPW12061K50BEEA Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
TNPW12061K50BEEA Vishay Intertechnologies Fixed Resistor, Thin Film, 0.25W, 1500ohm, 200V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 8 Weeks
Samacsys Manufacturer Vishay
Additional Feature ANTI-SULFUR, RATED AC VOLTAGE (V): 200
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 0.55 mm
Package Length 3.2 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 1.6 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.27 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 1500 Ω
Resistor Type FIXED RESISTOR
Size Code 1206
Surface Mount YES
Technology THIN FILM
Temperature Coefficient 25 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 0.1%
Working Voltage 200 V

TNPW12061K50BEEA Related Parts

TNPW12061K50BEEA Frequently Asked Questions (FAQ)

  • The thermal resistance of the TNPW12061K50BEEA is 35°C/W, which is relatively low and indicates good heat dissipation capabilities.

  • Yes, the TNPW12061K50BEEA is suitable for high-frequency applications due to its low inductance and high-frequency stability.

  • The maximum operating voltage of the TNPW12061K50BEEA is 200V, making it suitable for a wide range of applications.

  • Yes, the TNPW12061K50BEEA is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.

  • The power rating of the TNPW12061K50BEEA is 1.2W, making it suitable for low-to-moderate power applications.
