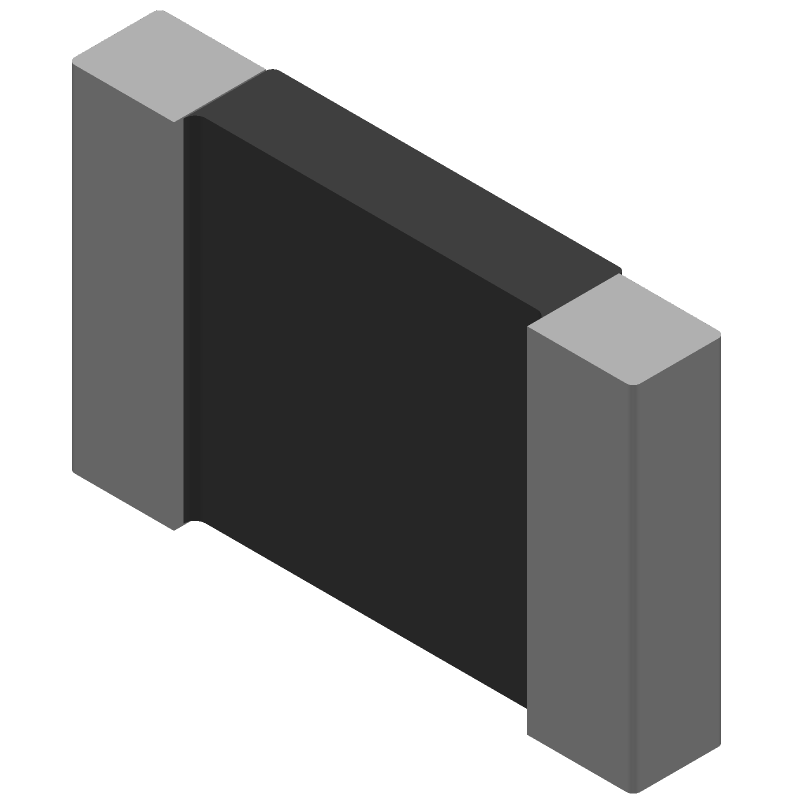

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TNPW0805100KBEEN by Vishay Intertechnologies
Results Overview of TNPW0805100KBEEN by Vishay Intertechnologies
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Energy and Power Systems
Robotics and Drones
TNPW0805100KBEEN Information
TNPW0805100KBEEN by Vishay Intertechnologies is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for TNPW0805100KBEEN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69AK0148
|
Newark | Res, 100K, 0.1%, 0.2W, 0805, Thin Film Rohs Compliant: Yes |Vishay TNPW0805100KBEEN RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 776 |
|
$0.3380 / $0.6730 | Buy Now |
|
DISTI #
69AK9324
|
Newark | Res, 100K, 0.1%, 0.2W, 0805, Thin Film Rohs Compliant: Yes |Vishay TNPW0805100KBEEN RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.3170 | Buy Now |
|
DISTI #
TNPW0805100KBEEN
|
Avnet Americas | SMD Chip Resistor, 100 kohm, ? 0.1%, 200 mW, 0805 [2012 Metric], Thin Film, High Stability - Tape and Reel (Alt: TNPW0805100KBEEN) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel | 1000 |
|
$0.1426 / $0.1613 | Buy Now |
|
DISTI #
71-TNPW0805100KBEEN
|
Mouser Electronics | Thin Film Resistors - SMD 100Kohms .1% 25ppm RoHS: Compliant | 15388 |
|
$0.2980 / $0.6600 | Buy Now |
|
DISTI #
V72:2272_09548155
|
Arrow Electronics | Res Thin Film 0805 100K Ohm 0.1% 0.125W(1/8W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Automotive AEC-Q200 Medical RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2339 Container: Cut Strips | Americas - 675 |
|
$0.2659 / $0.5996 | Buy Now |
|
|
Future Electronics | TNPW Series 0805 0.2 W 100 kOhm ±0.1 % ±25 ppm/K Thin Film Flat Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks Container: Reel | 2000Reel |
|
$0.1460 / $0.1530 | Buy Now |
|
DISTI #
TNPW0805100KBEEN
|
TTI | Thin Film Resistors - SMD 100Kohms .1% 25ppm RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel |
Americas - 26000 In Stock |
|
$0.1460 / $0.1610 | Buy Now |
|
|
Future Electronics | TNPW Series 0805 0.2 W 100 kOhm �0.1 % �25 ppm/K Thin Film Flat Chip Resistor Min Qty: 1000 Package Multiple: 1000 |
2000 null |
|
$0.1460 / $0.1530 | Buy Now |
|
DISTI #
TNPW0805100KBEEN
|
IBS Electronics | FIXED RESISTOR THIN FILM 0.125W 100000OHM 150V 0.1% +, /-TOL 25PPM/CEL SURFACE MOUNT 0805 Min Qty: 1000 Package Multiple: 1 | 2000 |
|
$0.1898 / $0.1989 | Buy Now |
|
DISTI #
TNPW0805100KBEEN
|
Avnet Abacus | SMD Chip Resistor 100 kohm 01 200 mW 0805 2012 Metric Thin Film High Stability (Alt: TNPW0805100KBEEN) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 11 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for TNPW0805100KBEEN
TNPW0805100KBEEN CAD Models
TNPW0805100KBEEN Part Data Attributes
|
|
TNPW0805100KBEEN
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
TNPW0805100KBEEN
Vishay Intertechnologies
Fixed Resistor, Thin Film, 0.125W, 100000ohm, 150V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0805, CHIP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR; LASER TRIMMABLE; PRECISION; RATED AC VOLTAGE (V): 150 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.45 mm | |
| Package Length | 2 mm | |
| Package Style | SMT | |
| Package Width | 1.25 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.125 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 100000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Technology | THIN FILM | |
| Temperature Coefficient | 25 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 0.1% | |
| Working Voltage | 150 V |
TNPW0805100KBEEN Frequently Asked Questions (FAQ)
-
The thermal resistance of the TNPW0805100KBEEN is typically around 10°C/W, but this value can vary depending on the specific application and operating conditions.
-
Yes, the TNPW0805100KBEEN is suitable for high-frequency applications due to its low inductance and high-frequency stability.
-
Yes, the TNPW0805100KBEEN is rated for operation up to 155°C, making it suitable for high-temperature environments.
-
Yes, the TNPW0805100KBEEN is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The power rating of the TNPW0805100KBEEN is 1 Watt.
