Resistors / Thin Film Resistors / TNPW060320K0BEEN
Datasheets
TNPW060320K0BEEN by:

Fixed Resistor, Thin Film, 0.1W, 20000ohm, 75V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP

Part Details for TNPW060320K0BEEN by Vishay Intertechnologies

Results Overview of TNPW060320K0BEEN by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Energy and Power Systems Robotics and Drones

TNPW060320K0BEEN Information

TNPW060320K0BEEN by Vishay Intertechnologies is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for TNPW060320K0BEEN

Part # Distributor Description Stock Price Buy
DISTI # 71M1235
Newark Res, Thin Film, 20K, 0.1%, 0.1W, 0603, Resistance:20Kohm, Resistance Tolerance:± 0.1%, Power Rating:125Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thin Film, Resistor Type:Sulfur Resistant, Voltage Rating:75V Rohs Compliant: Yes |Vishay TNPW060320K0BEEN RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1970
  • 1 $0.2560
  • 10 $0.2560
  • 25 $0.2560
$0.2560 Buy Now
DISTI # 28AC4357
Newark Tnpw0603 20K 0.1% T-9 E52 E3 Rohs Compliant: Yes |Vishay TNPW060320K0BEEN RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 1000
  • 1 $0.4050
  • 5,000 $0.3960
  • 10,000 $0.3660
  • 20,000 $0.3410
  • 30,000 $0.3180
  • 50,000 $0.3040
$0.3040 / $0.4050 Buy Now
DISTI # 71M1236
Newark Res, Thin Film, 20K, 0.1%, 0.1W, 0603, Reel, Resistance:20Kohm, Resistance Tolerance:± 0.1%, Power Rating:125Mw, Resistor Case/Package:0603 [1608 Metric], Resistor Technology:Thin Film, Resistor Type:Sulfur Resistant Rohs Compliant: Yes |Vishay TNPW060320K0BEEN RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.4050
  • 5,000 $0.3960
  • 10,000 $0.3660
  • 20,000 $0.3410
  • 30,000 $0.3180
  • 50,000 $0.3040
$0.3040 / $0.4050 Buy Now
DISTI # TNPW060320K0BEEN
Avnet Americas SMD Chip Resistor, 20 kohm, ? 0.1%, 125 mW, 0603 [1608 Metric], Thin Film, Sulfur Resistant - Tape and Reel (Alt: TNPW060320K0BEEN) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 6 Weeks, 0 Days Container: Reel 1000
  • 1,000 $0.1401
  • 2,000 $0.1375
  • 4,000 $0.1358
  • 6,000 $0.1333
  • 8,000 $0.1325
$0.1325 / $0.1401 Buy Now
DISTI # 71M1235
Avnet Americas SMD Chip Resistor, 20 kohm, ? 0.1%, 125 mW, 0603 [1608 Metric], Thin Film, Sulfur Resistant - Product that comes on tape, but is not reeled (Alt: 71M1235) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 4 Days Container: Ammo Pack 1970 Partner Stock
  • 1 $0.7000
  • 10 $0.4890
  • 25 $0.4780
  • 50 $0.4090
$0.4090 / $0.7000 Buy Now
DISTI # TNPW060320K0BEEN
Avnet Americas SMD Chip Resistor, 20 kohm, ? 0.1%, 125 mW, 0603 [1608 Metric], Thin Film, Sulfur Resistant - Tape and Reel (Alt: TNPW060320K0BEEN) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 6 Weeks, 0 Days Container: Reel 0
  • 1,000 $0.1469
  • 2,000 $0.1441
  • 4,000 $0.1419
  • 6,000 $0.1397
  • 8,000 $0.1375
$0.1375 / $0.1469 Buy Now
DISTI # 71-TNPW060320K0BEEN
Mouser Electronics Thin Film Resistors - SMD 20Kohms .1% 25ppm RoHS: Compliant 2692
  • 1 $0.5400
  • 10 $0.4540
  • 50 $0.4100
  • 100 $0.3880
  • 500 $0.3270
  • 1,000 $0.2980
  • 5,000 $0.2900
  • 10,000 $0.2850
$0.2850 / $0.5400 Buy Now
DISTI # V72:2272_07431651
Arrow Electronics Res Thin Film 0603 20K Ohm 0.1% 0.1W(1/10W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Medical Automotive AEC-Q200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2111 Container: Cut Strips Americas - 50
  • 1 $0.5389
  • 10 $0.4531
  • 50 $0.4092
  • 100 $0.3872
  • 500 $0.3263
  • 1,000 $0.2974
  • 5,000 $0.2894
  • 10,000 $0.2844
$0.2844 / $0.5389 Buy Now
Future Electronics TNPW Series 0603 0.125 W 20 kOhm 0.1 % ±25 ppm/K Thin Film Flat Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 6 Weeks Container: Reel 1000
Reel
  • 1,000 $0.1460
  • 2,000 $0.1440
  • 3,000 $0.1430
  • 4,000 $0.1420
  • 5,000 $0.1390
$0.1390 / $0.1460 Buy Now
DISTI # 63337190
Verical Res Thin Film 0603 20K Ohm 0.1% 0.1W(1/10W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Medical Automotive AEC-Q200 RoHS: Compliant Min Qty: 196 Package Multiple: 1 Americas - 1970
  • 196 $0.4180
  • 250 $0.4013
  • 500 $0.3868
  • 1,000 $0.3742
$0.3742 / $0.4180 Buy Now
DISTI # 66919151
Verical Res Thin Film 0603 20K Ohm 0.1% 0.1W(1/10W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Medical Automotive AEC-Q200 RoHS: Compliant Min Qty: 220 Package Multiple: 1 Americas - 1000
  • 220 $0.3550
  • 500 $0.2590
  • 1,000 $0.2360
$0.2360 / $0.3550 Buy Now
DISTI # 57208660
Verical Res Thin Film 0603 20K Ohm 0.1% 0.1W(1/10W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Medical Automotive AEC-Q200 RoHS: Compliant Min Qty: 42 Package Multiple: 1 Date Code: 2111 Americas - 50
  • 22 $0.4531
  • 50 $0.4092
  • 100 $0.3872
  • 500 $0.3263
  • 1,000 $0.2974
  • 5,000 $0.2894
  • 10,000 $0.2844
$0.2844 / $0.4531 Buy Now
Quest Components RESISTOR, THIN FILM, 0.1 W, 0.1 %, 25 ppm, 20000 ohm, SURFACE MOUNT, 0603 76
  • 1 $0.5250
  • 11 $0.4200
  • 49 $0.2625
$0.2625 / $0.5250 Buy Now
DISTI # TNPW060320K0BEEN
TTI Thin Film Resistors - SMD 20Kohms .1% 25ppm RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel Americas - 15000
In Stock
  • 1,000 $0.1640
  • 2,000 $0.1610
  • 3,000 $0.1580
  • 4,000 $0.1550
  • 5,000 $0.1520
  • 8,000 $0.1490
  • 10,000 $0.1460
$0.1460 / $0.1640 Buy Now
Future Electronics TNPW Series 0603 0.125 W 20 kOhm 0.1 % �25 ppm/K Thin Film Flat Chip Resistor Min Qty: 1000 Package Multiple: 1000 1000
null
  • 1,000 $0.2400
  • 2,000 $0.2350
$0.2350 / $0.2400 Buy Now
DISTI # TNPW060320K0BEEN
Avnet Abacus SMD Chip Resistor 20 kohm 01 125 mW 0603 1608 Metric Thin Film Sulfur Resistant (Alt: TNPW060320K0BEEN) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days Abacus - 0
Buy Now
LCSC 125mW Thin Film Resistor 75V 0.1% 25ppm/ 20k 0603 Chip Resistor - Surface Mount ROHS 49
  • 1 $0.4783
  • 10 $0.3908
  • 30 $0.3531
  • 100 $0.3063
  • 500 $0.2867
  • 1,000 $0.2731
$0.2731 / $0.4783 Buy Now
Vyrian Resistors 2807
RFQ

Part Details for TNPW060320K0BEEN

TNPW060320K0BEEN CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

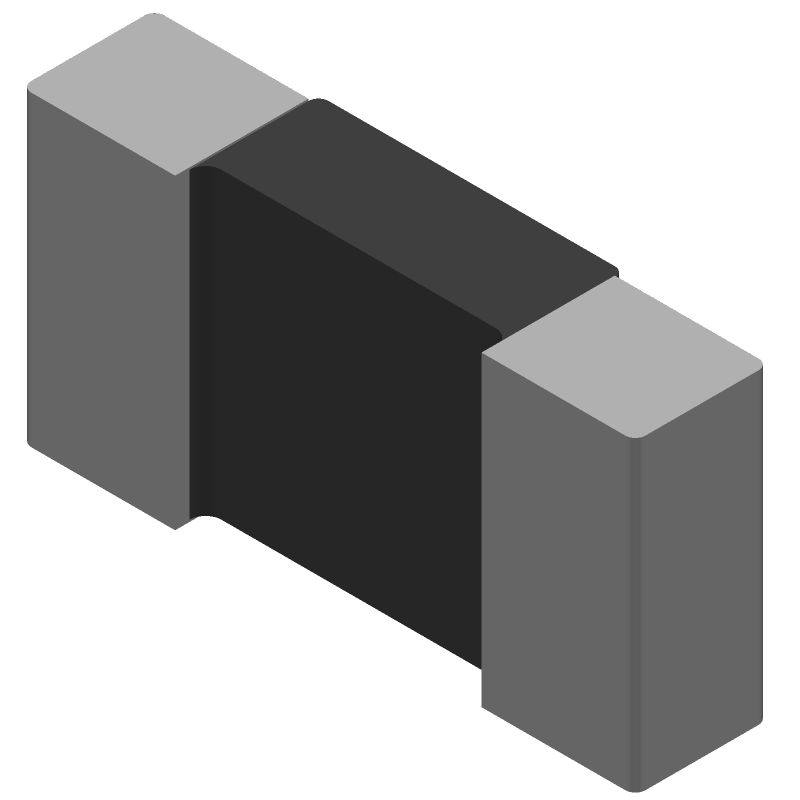

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TNPW060320K0BEEN Part Data Attributes

Parametric Data
TNPW060320K0BEEN Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
TNPW060320K0BEEN Vishay Intertechnologies Fixed Resistor, Thin Film, 0.1W, 20000ohm, 75V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0603, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 19 Weeks, 4 Days
Samacsys Manufacturer Vishay
Additional Feature ANTI-SULFUR; LASER TRIMMABLE; PRECISION; RATED AC VOLTAGE (V): 75
Construction Rectangular
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 1.55 mm
Package Style SMT
Package Width 0.85 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.1 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 20000 Ω
Resistor Type FIXED RESISTOR
Size Code 0603
Surface Mount YES
Technology THIN FILM
Temperature Coefficient 25 ppm/°C
Terminal Finish Pure Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 0.1%
Working Voltage 75 V

TNPW060320K0BEEN Related Parts

TNPW060320K0BEEN Frequently Asked Questions (FAQ)

  • The thermal resistance of the TNPW060320K0BEEN is 35°C/W, which is relatively low and helps to prevent overheating.

  • Yes, the TNPW060320K0BEEN is suitable for high-frequency applications due to its low inductance and high-frequency stability.

  • The power rating of the TNPW060320K0BEEN at 70°C is 0.75W, which is lower than the maximum power rating of 1W at 25°C.

  • Yes, the TNPW060320K0BEEN is qualified to AEC-Q200, which makes it suitable for use in automotive applications.

  • The TNPW060320K0BEEN has a moisture sensitivity level of 1, which means it can withstand normal humidity levels without special handling or storage.
